Oregon Vertical/Horizontal 22 Ton Log Splitter S402022H0/S402022K0 User Manual

Page 4

background image

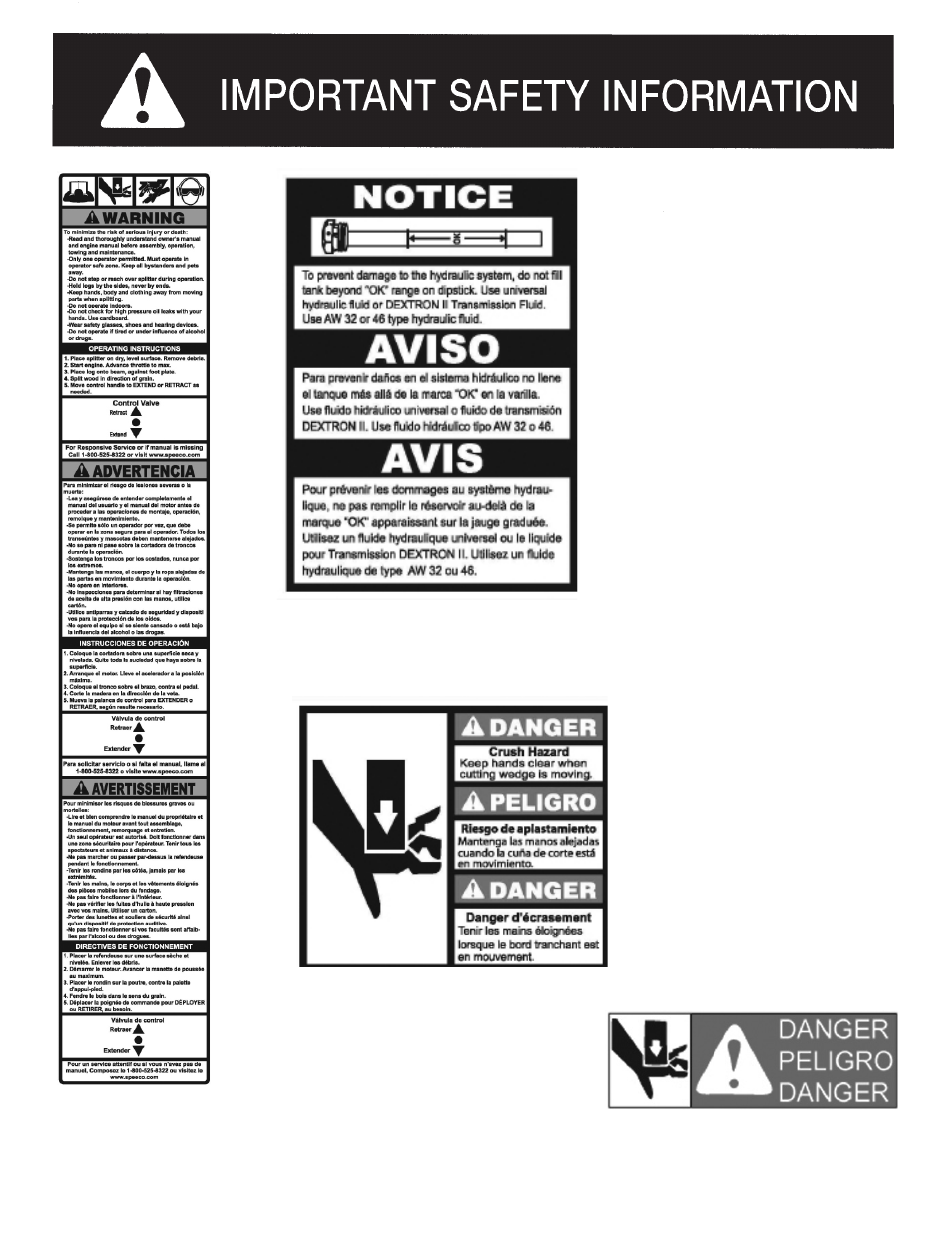

PART NUMBER: S52062100

LOCATION: TOP OF HYDRAULIC

CYLINDER

Page 2

PART NUMBER: S52062400

LOCATION: HYDRAULIC TANK

LOWER TANK, RIGHT CORNER

PART NUMBER:

LOCATION: OUTSIDE OF BOTH

STRIPPER PLATES

PART NUMBER: S52062200

LOCATION: TOP OF CYLINDER
