4 Outlaw Audio
Owner’s Manual
5 Model 7100 Seven-Channel Power Amplifier
Owner’s Manual
A Audio Inputs
Use the INPUT jacks to connect to the outputs of a surround processor,
preamplifier, AV receiver with preout connections, DVD player with discrete
five channel outputs, or HDTV product with built-in surround decoder.
(page 5)
B Remote Trigger Input
Use the REMOTE TRIGGER jack to connect to a compatible processor or
other product with a 3-32 VDC output. (page 8)
C Speaker Outputs
Use the OUTPUT binding posts to connect the amplifier to your speakers.
(page 5)
D Product Serial Number
Write this number in the space provied on page 2 for future reference.
E AC Fuse
Protects both the amplifier and your speakers from damage. (page 8)
F AC Power Cord
Use the power cord to connect your amplifier to an AC power source.
(page 7)

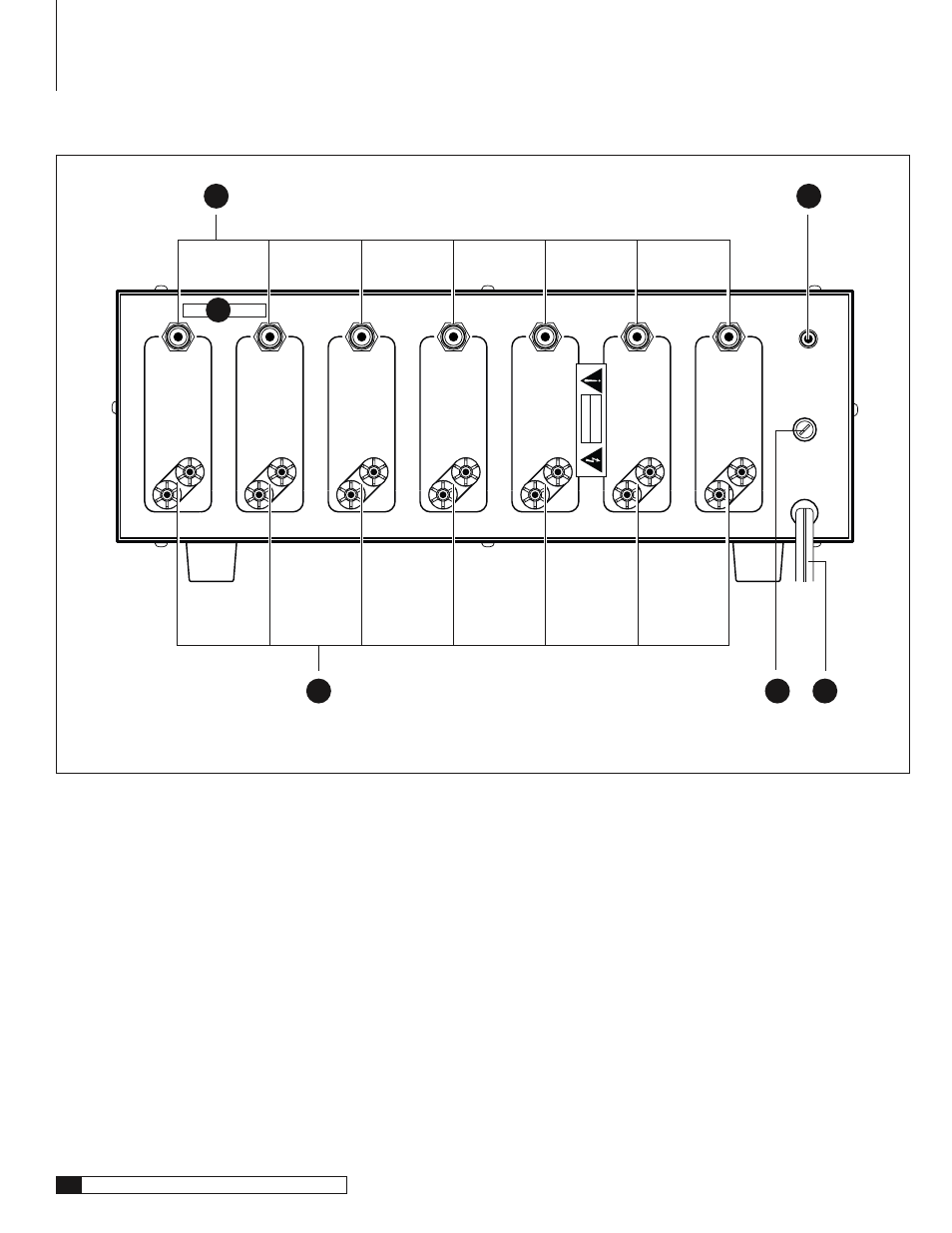

Rear Panel
Rear Panel
CA
UT
IO
N
RIS
KO
FE
LE
CT
RIC
SH
OC
K
DO
NO
TO
PE
N
��
��
� ��
��
��
��
��
��
��
��
��
��
��
��
�
��
�
��
��
�� INPUT
SURROUND RIGHT
OUTPUT
+
-
+
-
+
-
+
-
+
-
+
-
+
-
INPUT
SURROUND LEFT
OUTPUT
INPUT
REAR RIGHT
OUTPUT
INPUT
REAR LEFT
OUTPUT
INPUT
FRONT RIGHT
OUTPUT
INPUT
CENTER
OUTPUT
INPUT
FRONT LEFT
REMOTE TRIGGER
(POWER ON/OFF)
12V DC
NORTON
MASSACHUSETTS
U.S.A
120 VAC/60Hz
1200W
15A 125V 3AB
AC FUSE
WARNING:
HAZARDOUS ENERGY. MAKE PROPER SPEAKER
CONNECTIONS: SEE OWNER'S MANUAL BEFORE USING.
ATTENTION:
OUTLAW
AUDIO
OUTPUT
VOIR LE CAHIER Dʼ
INSTRUCTION
A
C
B
F E
D
