30 Orion 420 Weather Station
________________________________________________________________________
Columbia Weather Systems, Inc.
of 22-gauge, stranded, seven conductor shielded cable with the same
color code. When cutting and splicing, insure good contacts, proper color
coding of the terminal leads, and a good seal. (A good solder splice, and
water proof insulation are essential; merely twisting the respective wires
together is not adequate.) Additional cable (Catalog No. 81545) and a
water tight splice kit (Cat. No. 81580) are available from the factory.
Once the sensor transmitter has been placed, route the cable back to the
Orion 420 enclosure.
Connecting the Sensor Transmitter to the Orion 420
Enclosure
Using a #1 Straight Slot screwdriver, attach the wires from the end of the

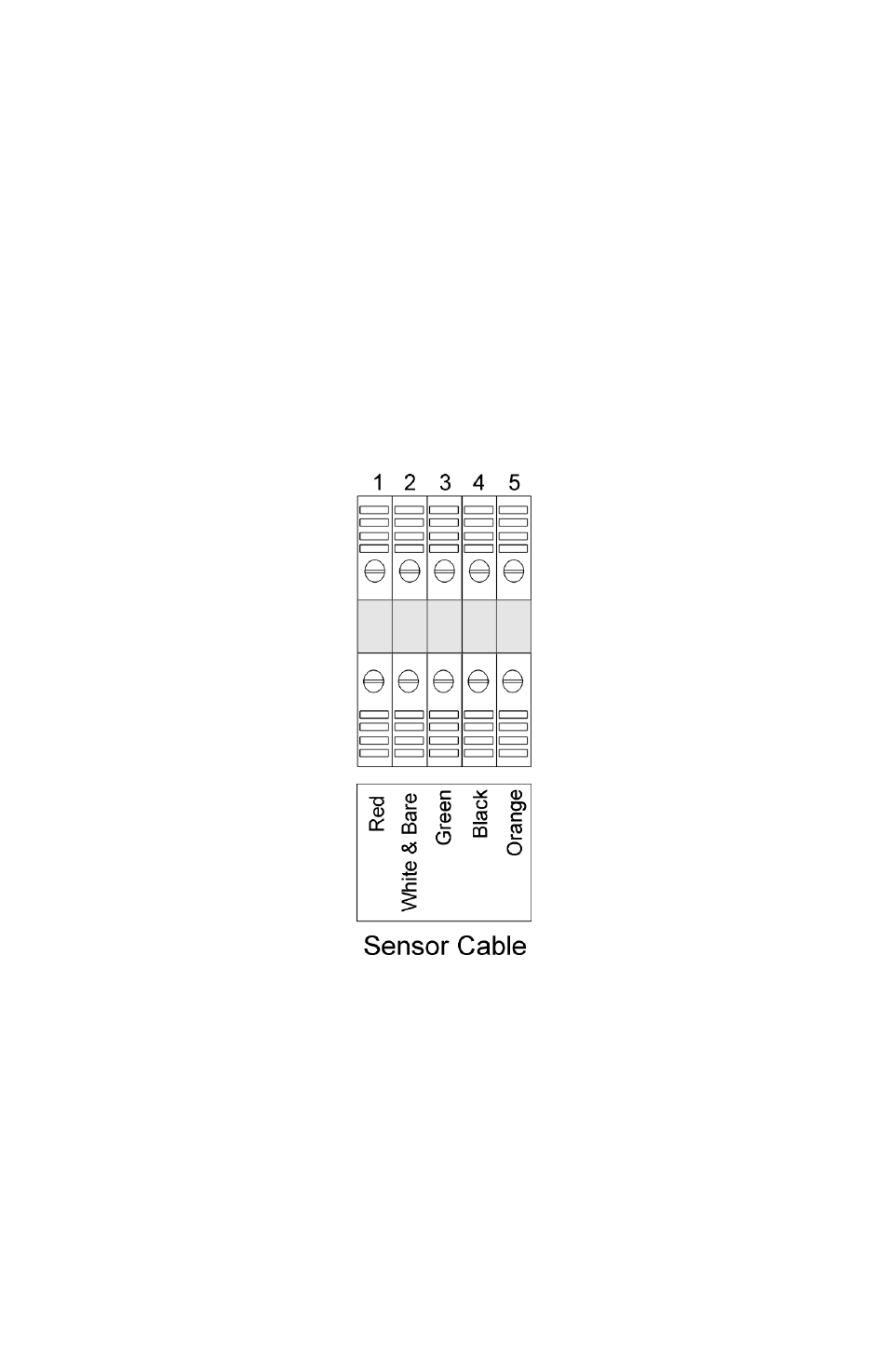

sensor cable to the terminal block screws as shown below:
For heated sensor transmitters, connect the brown wire along with the
red wire to position 1 and connect the blue wire along with the white and
bare to terminal 2.
