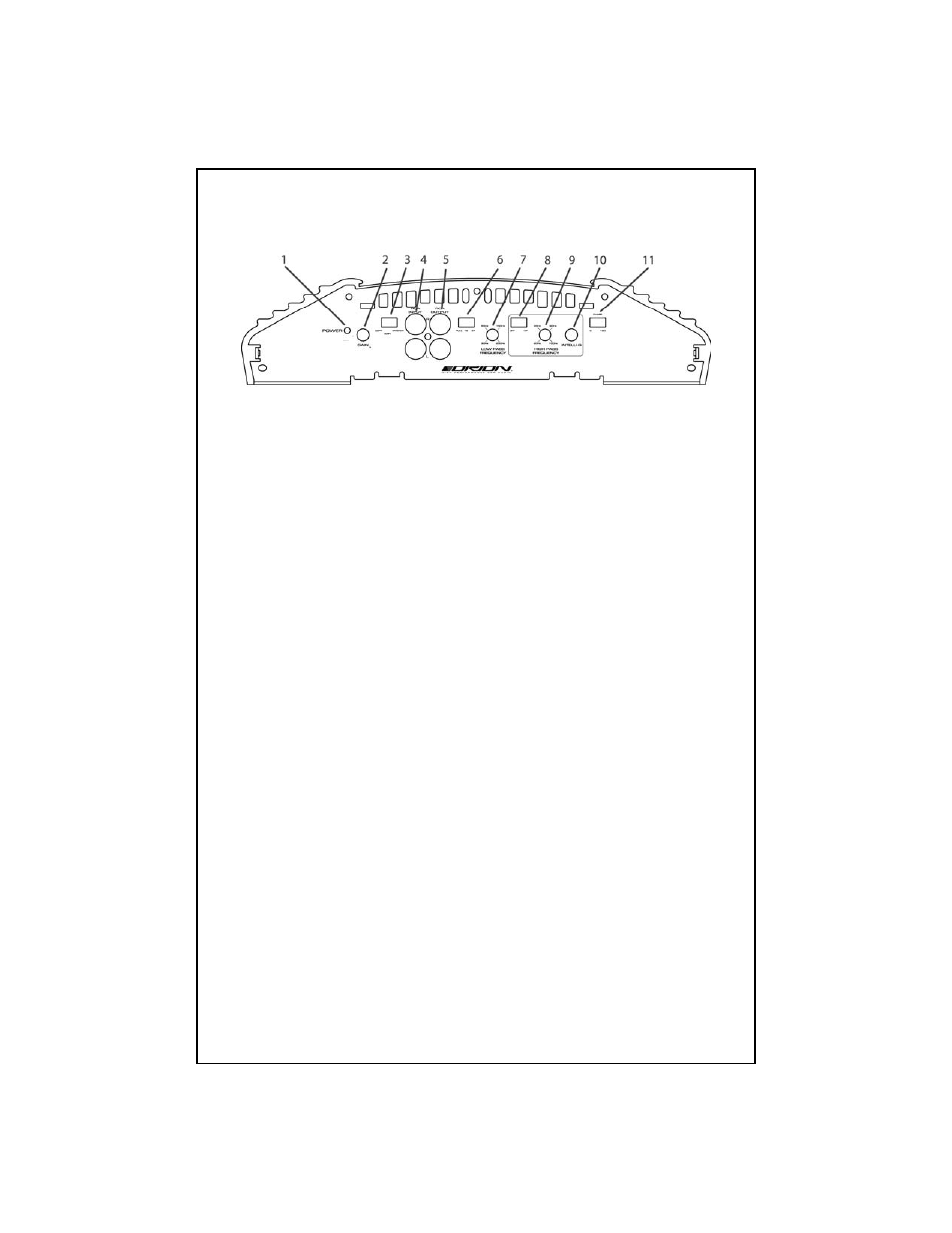

END PANEL LAYOUTS
1.
Power LED - when lit indicates that the amplifier is on.
2.
Gain Control - continuously adjusts from 200mV to 5V for full power output.
3.
Copy/Gain/Master Switch - determines the configuration of the RCA outputs.
4.
RCA Inputs - accepts RCA input from a source unit, preamplifier, or equalizer.
5.
RCA Outputs - provides easy connection to additional amplifiers.
6.
Low-Pass Crossover Switch - activates low pass crossover.
7.
Low-Pass Frequency Control - adjusts the frequency of the low-pass crossover.
8.
High-Pass Crossover Switch - activates high pass crossover.
9.
High-Pass Frequency Control - adjusts the frequency of the high-pass crossover.
10. INTELLi Q Control - continuously adjusts the "Q" boost of the high-pass
crossover from 0 to 10dB of boost.
11. Phase Control Switch - Allows for adjustment of phase and makes bridging
amplifiers possible.
