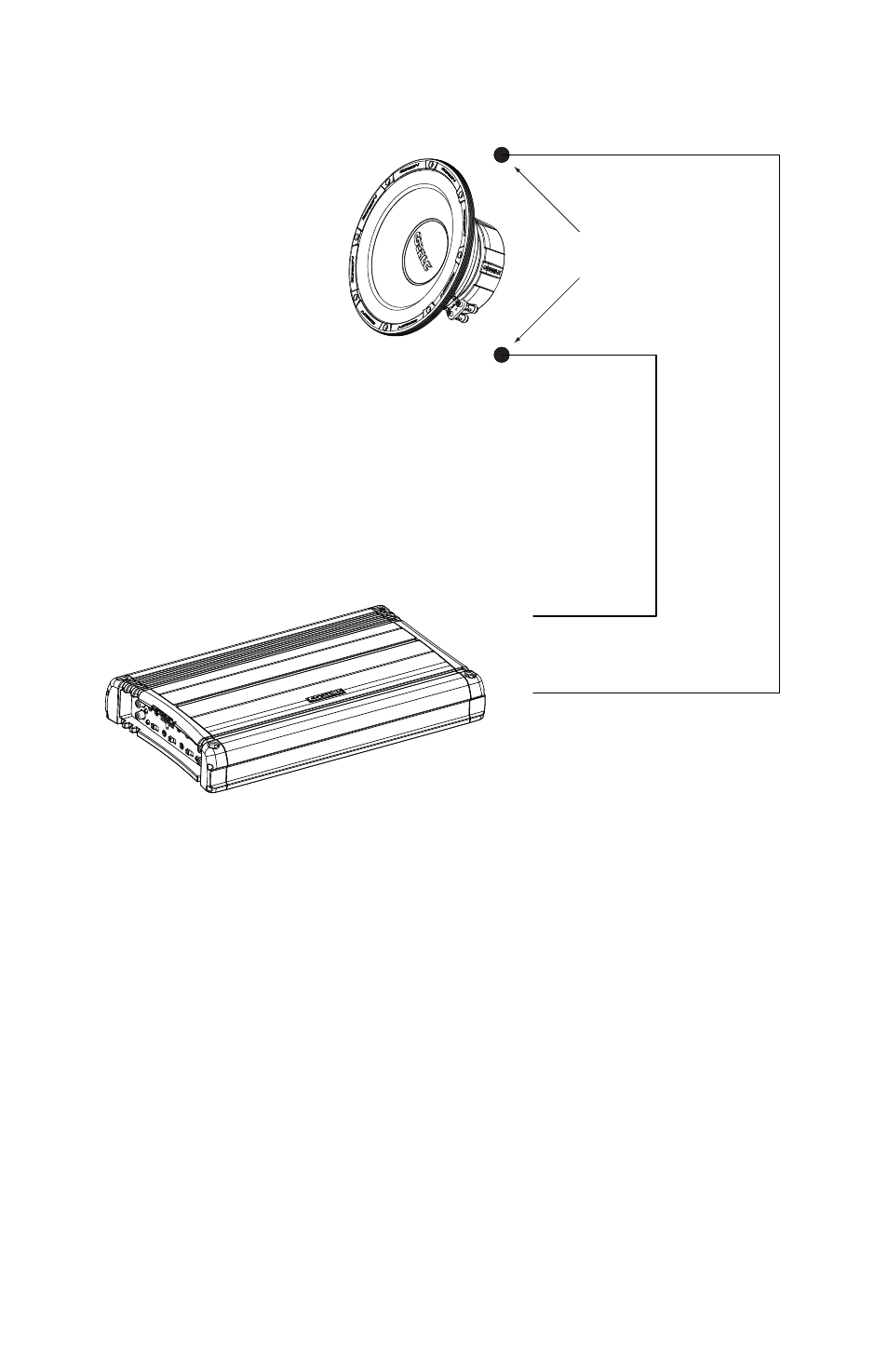

One Speaker (4 ohm voice coil)
One 4 ohm voice coil woofer results in a 4 ohm load to the amplifier.
+
+
4 ohm
_
_
Figure 3
Figura 3
Abbildung 3
1. Connect the speaker by connecting the positive (+) terminal of the woofer to
the positive (+) terminal on the amplifier. Wire the negative (-) terminal of the
woofer to the negative (-) terminal on the amplifier.
