5

EN

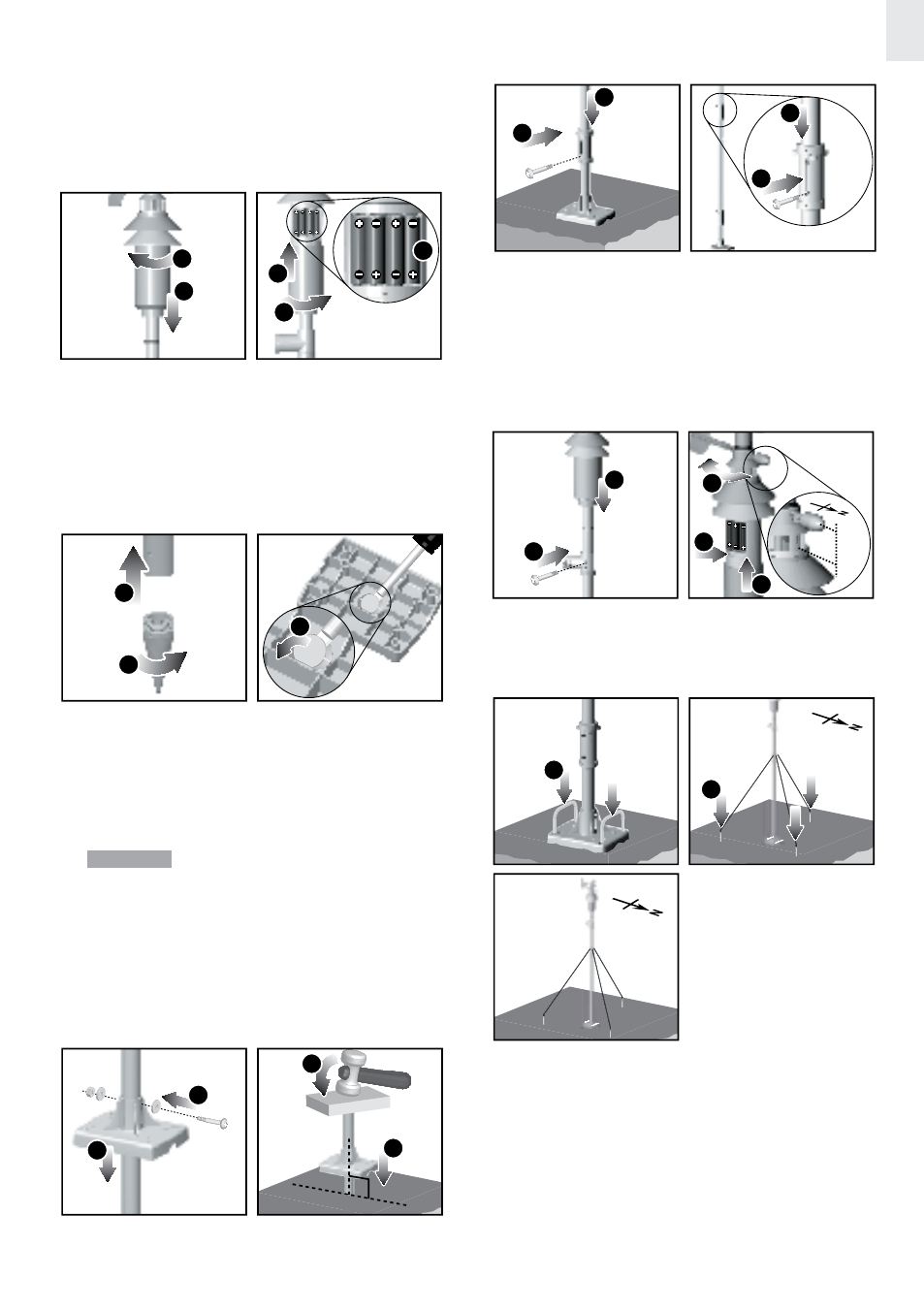

10. Assemble the top pole to the mid-pole.
11. Use the screw to fi x.

12. Assemble the wind sensor main body on top of the

pole. Use the screw (Type A) to fi x.

13. Open the battery compartment.
14. Using a compass, rotate the wind direction part until
the

NORTH indicator points to the “North”.

15. Press RESET.
16. Close the battery compartment.

17. Insert the 2 rectangular base legs into the ground to

fi rmly fi x the pole.

18. To keep the pole stable, use the 3 pins to fi rmly fi x

the tension strings to the ground.

To set up the wind sensor main body on an existing
pole:
1. Remove the screw that fi xes the plastic connector

at the end of the top pole.

2. Slide down the plastic connector.
3. Detach plastic base from the bundled steel pole if

previously installed.

4. Assemble it at the end of the top pole using the

screw that is already attached on the base, with the

washers and bolts to fi x.

14

15

16

12

13

17

18

9

8

10

11

6. Slide the sleeve down to open the battery
compartment.
7. Insert batteries (4 x UM-3 / AA) in the compartment,
matching the polarity (+ / -) and press RESET.
8. Slide the protective sleeve up to close the
compartment.
9. Rotate the sleeve to the right to lock.

To set up the steel pole support:
1. Assemble the “cone shape” guiding end with the

bottom steel pole.

2. Screw the guiding end clockwise at the bottom of

the pole.

3. Remove the cover hole from the plastic base.

4. Insert the plastic base onto the steel pole until the

screw hole aligns with the support.

5. Use the screw that is already attached on the base,

with the washers and bolts to fi x.

6. Use the guiding end to start inserting the steel pole

at a perpendicular angle into the ground.

WARNING Make sure that there are NO electric

cables / power lines, gas / water pipes in the area

where you are placing the steel pole. Do not place

the pole into a hard rocky type of ground as it may

bend or break the pole. It should be inserted into

soft soil.

7. Place a wooden block on the top of the pole. With

a hammer, hit the wooden block to insert the pole at

a perpendicular angle to the ground until reaching

the base.

8. Assemble the mid-pole on top of the bottom pole.
9. Use the screw to fi x.

7

5

8

9

6

1

2

3

4

5

6

7

WMR100_EN_86L4515-017.indd 5

6/15/06 4:25:13 PM
