Oki 70040901 User Manual
Oki Computer Accessories
Table of contents
Document Outline

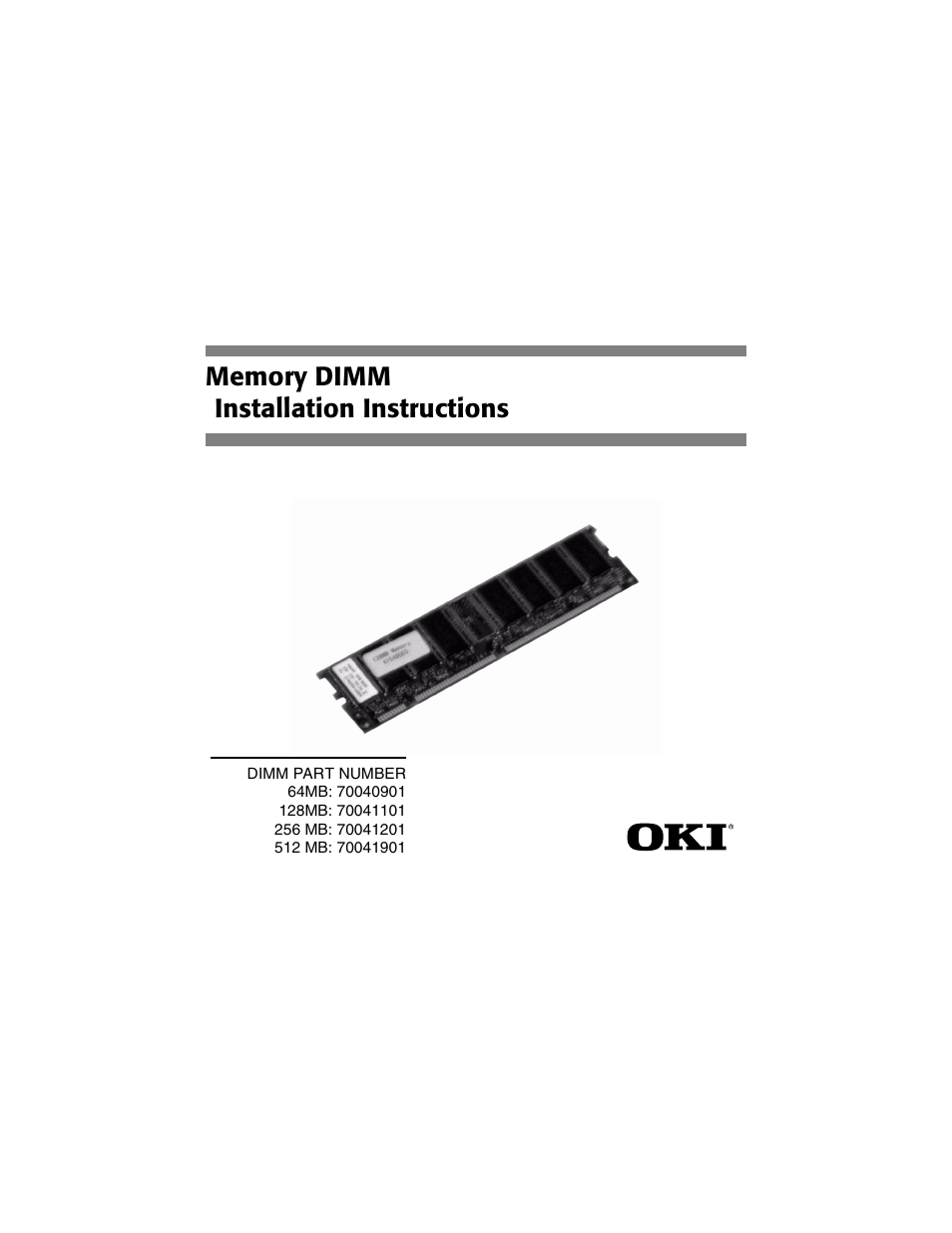

- Memory DIMM Installation Instructions
- Getting Started
- Prepare the Printer
- Install the DIMM(s)
- 1. Locate the DIMM sockets (circled) on the control board.
- 2. Push out the white lock tabs at either end of the DIMM socket.
- 3. Remove the DIMM from its shipping package.
- 4. Align the DIMM with the narrow strip (1) on its metallic contact edge toward the front of the ...
- 5. Repeat steps 2 through 4 for each DIMM being installed.
- Complete the Installation
- Check for Proper Installation
- 1. Press MENU once or twice until INFORMATION MENU appears on the display.
- 2. Press SELECT. PRINT MENU MAP appears on the display.
- 3. Press SELECT. The MenuMap prints.
- 4. Check the top of the MenuMap printout to verify that the DIMMs you installed are listed (they ...
- 5. If the DIMM is not listed at the top of the MenuMap printout, remove the board and make sure t...
- Change the Memory Setting in the Driver(s)
- Windows® Adobe® PostScript® Driver
- 1. Click Start — Settings — Printers. The Printers dialog box opens.
- 2. Right click the appropriate OKI PostScript driver icon, then click Properties.
- 3. Windows 2000 & NT 4.0:
- a. Click the Device Settings tab.
- b. Scroll down to Installable Options and click Memory Configuration.
- c. Under Change ‘Memory Configuration’ Setting, click the total memory installed (original plus t...
- a. Click the Device Options tab.
- b. Click Memory Configuration.
- c. Under Change setting for: Memory Configuration, click the total memory installed (original plu...
- Windows PCL Driver
- Macintosh® Driver (OSX)
- Macintosh® Driver
- Windows® Adobe® PostScript® Driver
- Limited Warranty
- Oki Data Service Depot Information
