5

TEST

RESET

HO

W T

O

USE THE

A.L.C.I

1

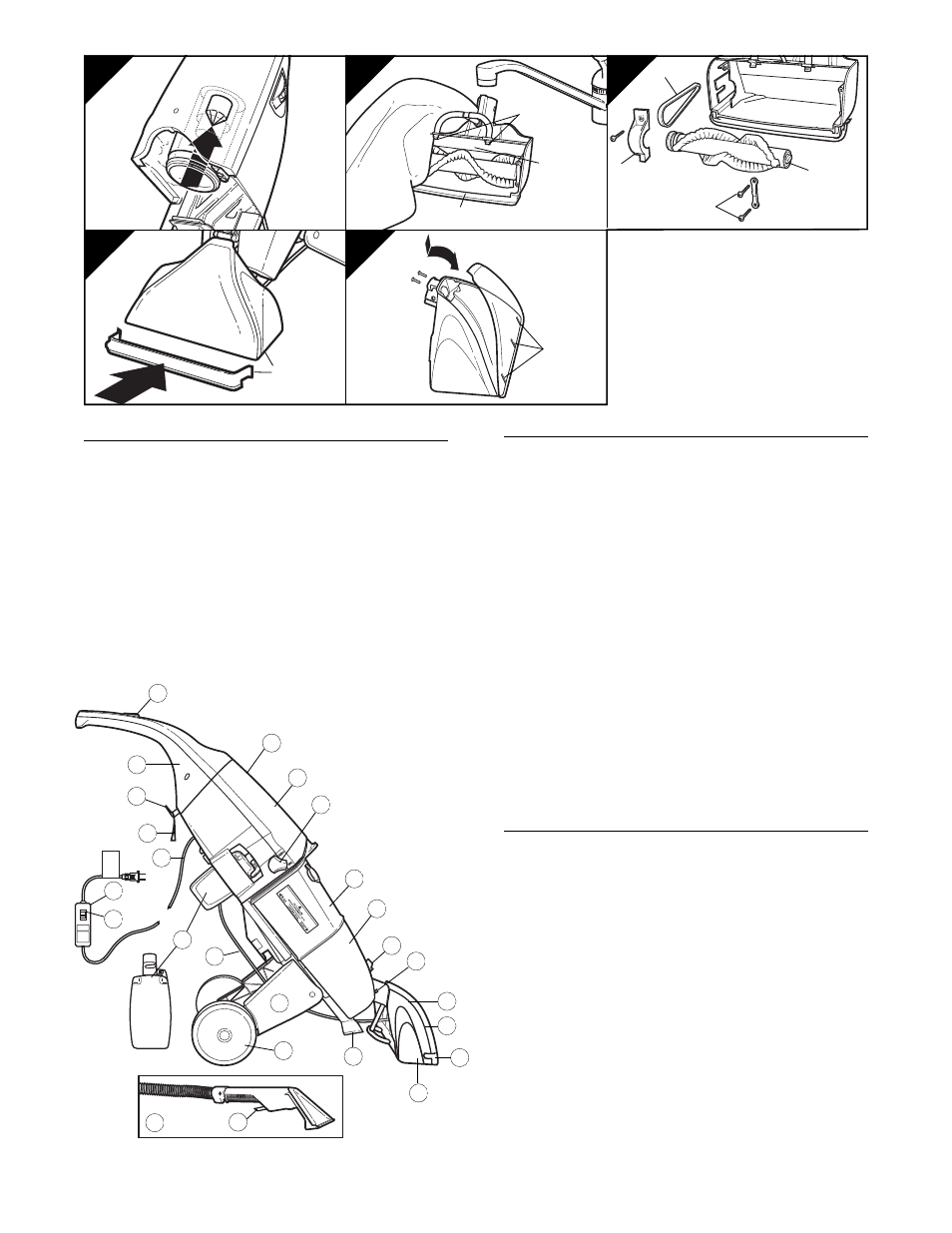

Parts Checklist

Read all instructions thoroughly before assembly/use. Please unpack
carton, removing all parts and packages. Check that all parts required for
assembly are present by referencing the list below.

PARTS

QUANTITY

1. Oreck Steemer Unit

1

2. Handle

1

3. Oreck Steemer Power Nozzle

1

4. Large, Easy-To-Steer Wheels

2

5. Easy Lock-in Cleaner Cartridge/Bottle

1

6. Screws (5/8”)

4

7. Hand-held Nozzle and Hose Assembly

1

8. Squeegee (for hard floor cleaning)

1

2

3

4

5

6

9

10

20

21

22

23

24

11

12

13

14

15

8

19

Features

9. 25’ Power Cord

10. A.L.C.I. – Safety Plug with Reset and Test Buttons

11. Translucent Upper Supply Tank

12. Translucent Lower Recovery Tank

13. Transparent Nozzle Cover

14. Motorized Scrubbing Brush

15. Convenient Quick-Release Cord Wrap

16. Floor Stand

17. Nozzle Power Cord

18. Support Legs

OPERATOR CONTROLS

19. Rinse/Shampoo Switch

20. Shampoo/Cleaner Spray Button

21. A.L.C.I. Plug Reset Button

22. Tank Latch

23. On/Off Power Switch

24. Nozzle Change Button

25. Hand-held Nozzle Trigger

To Assemble Cleaner

A PHILLIPS SCREWDRIVER IS REQUIRED FOR ASSEMBLY!

fig. 1

Attach Handle to Cleaner:

a.

Lay the cleaner on a flat surface with the tank side down or to its
side.

b.

Slide handle into cleaner body until interlock is secured.

c.

Insert four 5⁄8” screws (included) into the four cavities in the
handle base and tighten.

fig. 2

Attach Wheels:

a.

Locate two wheels and two support legs.

b.

Insert the wheels (a) into the support legs (b) by pushing the
wheels in until they snap into place.

fig. 3

Attach Nozzle:

Turn the unit so that the tank is face up.

a.

Align the nozzle so the nozzle change button is in line with the
corresponding hole in the nozzle. Depress the small nozzle
change button and slide the nozzle over the unit shaft until the
button locks into place.

fig. 4 Plug the small power nozzle cord connected to the nozzle into

the receptacle in the back of the unit.

16

19

20

21

c

b

a

7

25

a

b

c

d

22

a

23

Slots

NOTE: Before using, please read the important safety and
operating instructions.

17

18
