Page 10
'PROGRAM CONTROLLER' MODE
Display Time
On entering Program Controller mode, the very first step lets you
program is the display time. This determines the length of time (in
seconds) that any VALUE is displayed before message, such as
‘PROCESS’ is flashed.

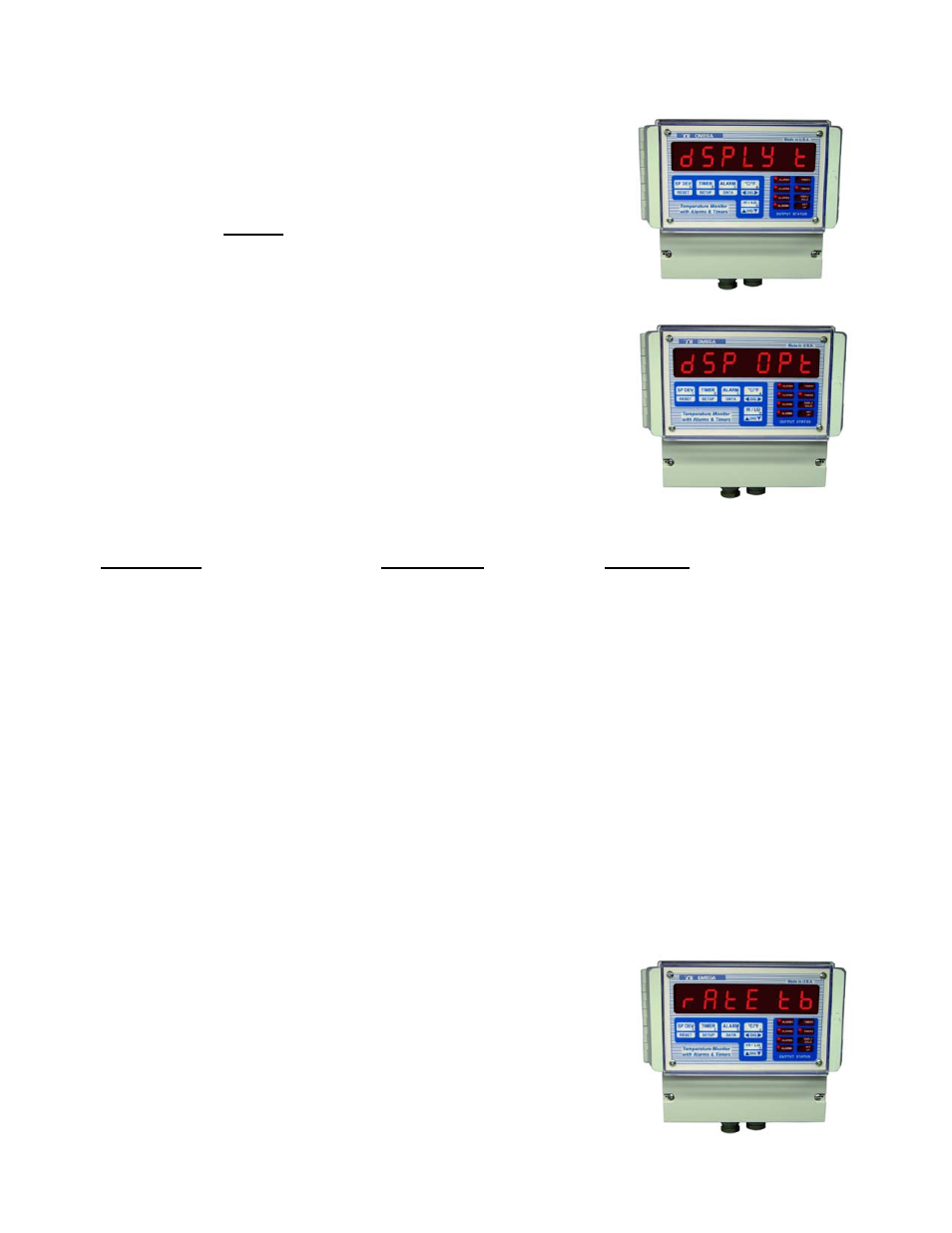

The unit will first show 'dSPLy t' (for Display Time), and then the
current setting in seconds. Use ‘^DIGv’ and ‘’ key to set the
desired display time. Push ‘SETUP’ key following the selection.
Display Option:
This is indicated by the display briefly reading 'dSP OP t' (for
display option) and then the currently selected Option. Use ‘^DIGv’
key to step thru various options. Once the desired option has been
selected, push ‘SETUP’ key to enter it and go on to set Display Time.
Display Mode Display shows Description
PROCESS
PrOCESS Displays process value.
SETPOINT DEVIATION
SP. DEVN Displays setpoint deviaition.
INSTANTANEOUS RATE
In. rAtE Displays Instantaneous rate value.
PROCESS HIGH
Pr. HIGH Displays process’ highest reading
PROCESS LOW
Pr. LO Displays process’ lowest reading
ELAPSED TIME
ELPSd. T Displays elapsed time.
TIMER 1 COUNT DOWN
tr1. Cnt Display Timer 1 count down value
TIMER 2 COUNT DOWN
tr1. Cnt Display Timer 2 count down value
SCAN SCAn Scans through all the above parameters
Rate Time-Base:
This step is for programming time-base for calculation of Rate. Units
of time-base are seconds. Again, the active digit will be flashing.
Message displayed before the value is “rATE tb:. To change the
value, push ^v key. To activate another digit for change, use
key. On finishing, push SETUP key.
