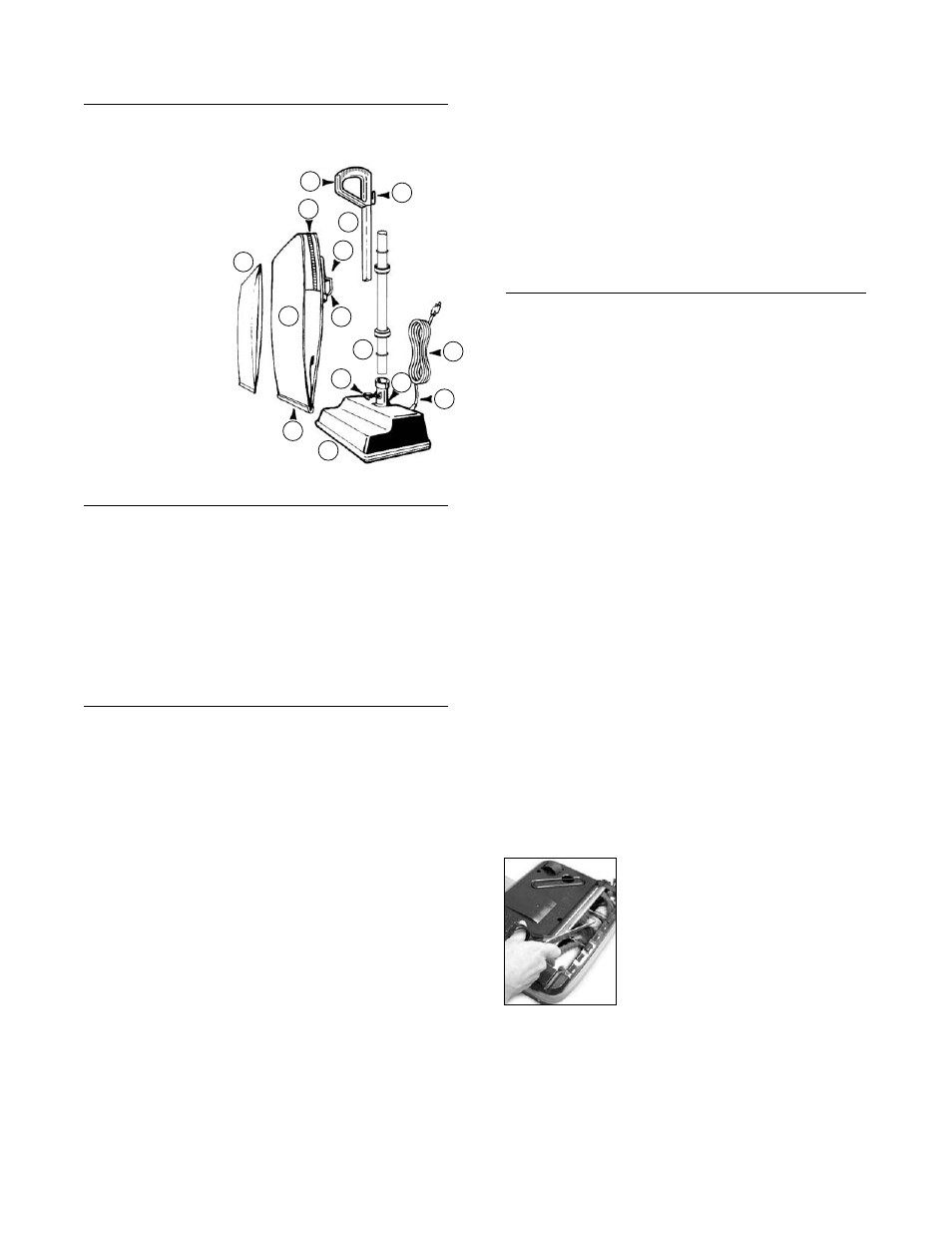

Parts List
To assist you in identifying components of your vacuum, the parts have
been numbered as follows:
1 Handle section, upper
2 Tube, lower
3 Power head
4 Outer bag
5 Paper filter dust bag
6 Power cord
7 Retaining spring
8 Bag tension bar
9 Zip fastener
10 On/off switch
11 Cord dump
12 Plastic loop / cable clamp
13 Connector assembly
14 Fan housing
15 Cord assembly
Assembly
fig. 1 Before assembling appliance, remove two screws from connector
assembly. Remove cardboard insert by pulling upward.
fig. 2 With On/Off switch facing the front of the unit, slide upper handle
section over matching section of the connector assembly. Hold
handle brace againist upper handle and align screw holes. Insert
short screw into top hole and long screw into bottom hole then
tighten firmly until handle is no longer loose.
fig. 3 Attach cord to cord clip by pressing cord above and below clip
ensuring the cord is fully rested in clip.
Operating Instructions
Make sure disposable paper filter dust bag is in place. DO NOT operate
the cleaner without a paper filter dust bag. Plug the power cord into an
electrical outlet and press the On (l) - OFF(O) switch on Helping Handle
Assembly when ready to operate.
Up-Position Lock
fig. 4 Place foot on power head and lean handle back gently to release
lock for vacuum use. Return handle to the full upright position to
engage lock.
NOTE: Do not operate the unit while in the upright and locked position.
Do not let the unit run while in any one stationary position for any period
of time. Keep the unit moving while in operation.
For Easy Power Cord Storage
fig. 5 Wrap power cord around cord dump on Helping Hand ® handle
and cord hook on connector.
fig. 6 To release cord, twist cord dump located on Helping Hand ®
handle 1/2 turn. Slide cord off handle.
Operating Recommendations
This new ORECK XL High-Speed Upright is one of the finest, fastest,
and strongest units in its class. You’ll love the way it cleans, gets under
things, and it’s SO lightweight and easy to use.
The following are a few simple suggestions regarding its operation:
1. When inserting a new disposable paper filter dust bag—FIRST
PUFF OUT and OPEN THE BAG.
2. When the disposable filter dust bag is full, REPLACE IT.
3. If at any time the machine does not pick up properly or makes an
unusual noise, STOP OPERATION and service.
4. Although your upright will pick up pins, paper clips, and other small
objects, it is recommended that these be removed from the floor
before you vacuum. Failure to do so may result in permanent
damage to the motor suction fan and its housing.
5. WARNING: Do not use your vacuum cleaner on damp or wet
surfaces. This will cause damage to the vacuum cleaner and is
dangerous to the user. Damage caused by use on wet or damp
surfaces is not covered under warranty.
6. REPLACE THE BELT EVERY 6 MONTHS.
7. Change the disposable filter dust bag at least once a month—
even if it is not full! The collected dust in the dust bag can cause
odor, attract moisture, and can affect the efficiency of the cleaner.
8. DO NOT run the vacuum cleaner over the cord. The revolving
brush could damage the cord.
9. Use caution when vacuuming over area rug edges and fringe.
General Information
The performance of your new cleaner greatly depends upon care and
maintenance. The instructions in this manual will guide you in
performing basic care and maintenance. To obtain the most satisfying
years of service read the instructions and keep them handy for future
reference.
Disposable Paper Filter Dust Bags
Disposable paper filter dust bags play a very important role in the
efficiency of your ORECK vacuum cleaner. The purpose of the paper
bag is to trap dirt, but at the same time it must be porous enough to
allow air to pass through. If the paper bag becomes clogged, no air can
pass through the cleaner and cleaning cannot take place, regardless of
the cleaner’s power. Increase the CLEANING POWER of your cleaner
by changing the bag often.
DO NOT FILL ABOVE THE LINE INDICATED ON THE DUST BAG.
Be sure the disposable paper filter dust bag is installed properly.
All paper dust bags are not the same. Your ORECK disposable
dust bags have been designed to be used with the ORECK cleaner.
Using bags other than genuine ORECK disposable bags will affect
the cleaning ability of your cleaner and could cause damage to it.
The Belt
The belt on your vacuum cleaner controls the speed of the revolving
brush and is very important for the effective operation of the cleaner. If
the belt becomes stretched or cut, it will cause the revolving brush to
stop completely or slow down. See instructions in the manual for
replacing belt.
An extra belt is stored in the baseplate of your cleaner. When
buying replacement belts, use ONLY ORECK genuine belts. Belts
other than Oreck belts will not operate the revolving brush
correctly and may create undue stress which will cause damage to
the motor and brush bearings. Using belts other than ORECK belts
will void the warranty.
Lubrication
The vacuum cleaner motor bearings are factory lubricated and sealed.
Further lubrication is not required.
General Cleaner Care
At least once a month, check for and remove
excessive lint, string or hair from revolving
brush.
Wipe the outside of the cleaner with a damp
cloth. Also clean the connector deflector
assembly area, base of cleaner and fan
housing area. If there is dust in the outer bag,
vacuum it or shake it out.
A little preventative maintenance will keep your
cleaner looking new and will ensure continued
cleaning effectiveness.
CAUTION—Wood Floors, Soft (Vinyl, Asphalt Tile, etc.) Floor
Surfaces and Polished Floor Finishes
Use floor and floor finish manufacturer’s recommended methods of
cleaning. The metal strip on the base of the cleaner could be damaged
if used on concrete or abrasive surfaces, and, therefore, cause damage
to wood floors, soft (vinyl, asphalt tile, etc.) floor surfaces and polished
floor finishes. The roller brush may also scuff very soft finishes. Do not
operate the unit while in the upright and locked position. Do not let the
unit run while in any one stationary position for any period of time. Keep
the unit moving while in operation.
