9
Preparing Your Receiver

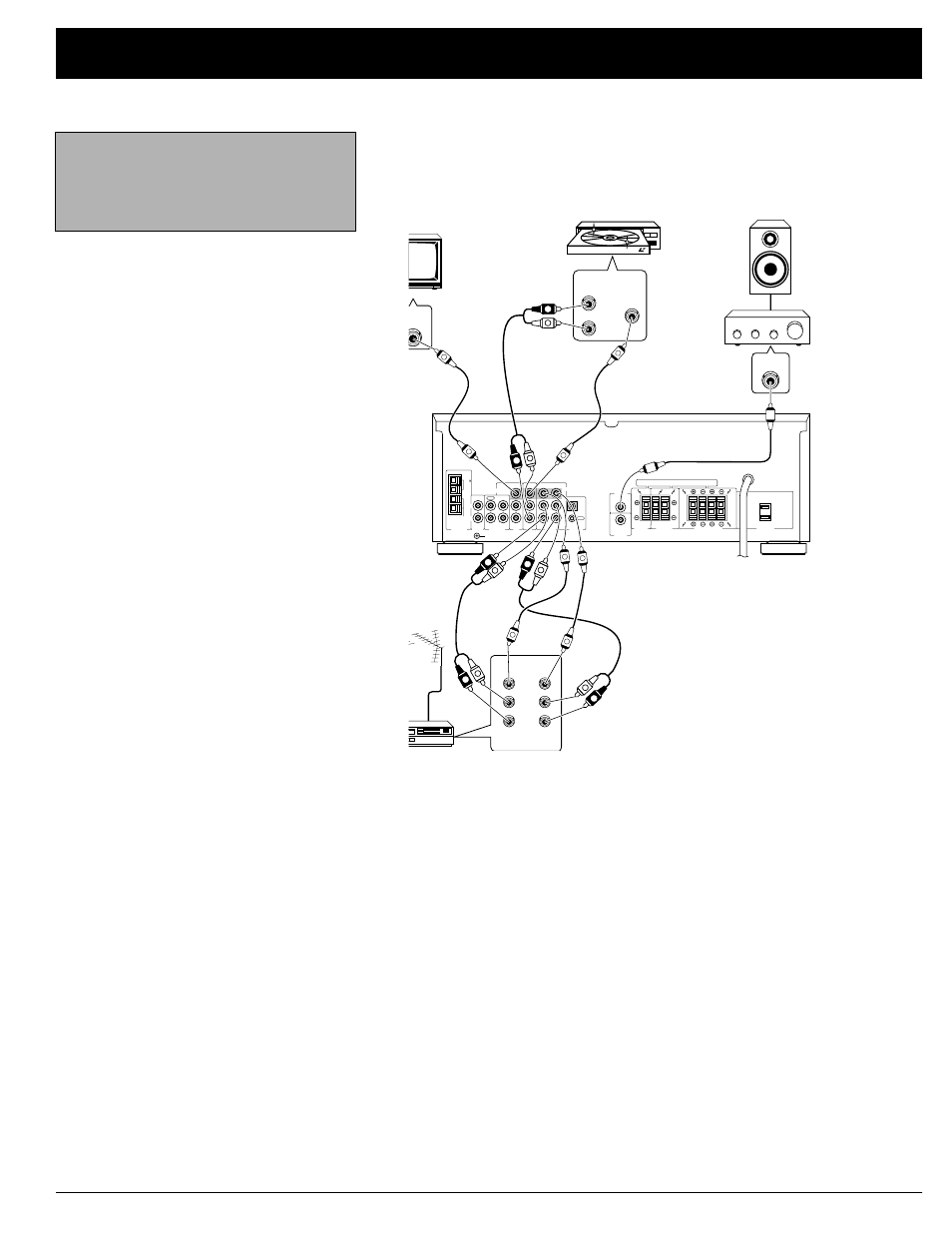

Connecting Video Sources
If you connect two video sources such as VCRs or laser disc players to your
receiver, you can use the receiver to switch between viewing the sources. You
can also use the receiver to easily record from the video sources to the source
connected to
VCR/TAPE 1 .
Connect phono cables from a VCR’s audio outputs to the receiver’s VCR/TAPE 1
or LD IN (audio) jacks. Then connect phono cables from the receiver’s VCR/
TAPE 1 OUT (audio) jacks to the VCR’s audio input jacks.
Connect video cables from each video source’s video outputs to the receiver’s
VCR/TAPE 1 or LD VIDEO IN jacks. Then connect video cables from the
receiver’s VCR/TAPE 1 VIDEO OUT jack to the VCR’s video input.
Connecting a Video Monitor
The monitor (or TV with baseband video input) you connect to the VIDEO OUT
terminal can monitor any program you connect to the receiver’s VCR/TAPE 1 or
LD input jacks. Then connect a video cable from the receiver’s VIDEO OUT TO
MONITOR TV jack to the monitor’s video input.
Note: If your VCR is monaural, use a Y-
adapter (available at your local Radio
Shack store) to connect the VCR’s audio
output to both the
L and R audio inputs
on the receiver.
REC
OUT
R
L
R
L
A
B
A
B
R R L
R L
L
ANTENNA TAPE2 MONITOR PHONO
GND
CD
TO MONITOR TV
VIDEO OUT
LD
CENTER SPEAKER REAR SPEAKERS FRONT SPEAKERS AC OUTLET
PRE OUT
CENTER
SUB WOOFER
PRE OUT VCR /TAPE1
PLAY
IN OUT IN VIDEO
IN
GND
GND
LOOP
ANTENNA
AM
FM
UNBAL
75
CONTROL
AUDIO
OUT
L
R
VIDEO
OUT
VCR
L
R
VIDEO
IN OUT
(REC)
IN
(PLAY)
OUT
R
L
R
L
IDEO
IN
V
V
R
L
R
L
R L
V
V
V
V
V
V
L
R
IN
LD Player
Speaker
Power
Amplifie
