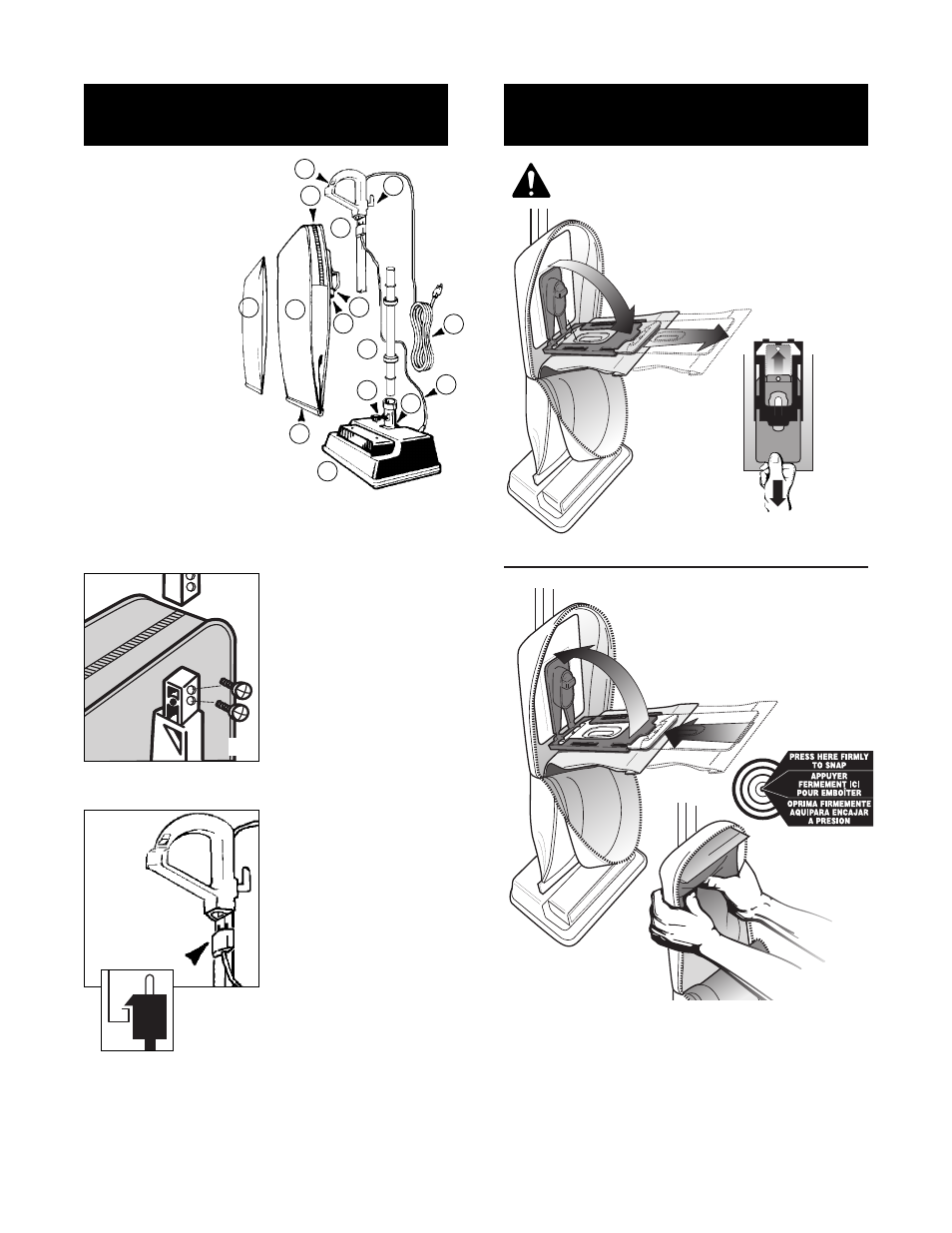

A ssembly
To assist you in identifying
components of your vacuum,
the parts have been numbered
as follows:
1 Handle section, upper
2 Tube, lower
3 Power head
4 Outer bag
5 Paper filter dust bag
6 Power cord
7 Retaining spring
8 Bag tension bar
9 Zip fastener
10 On/off switch
11 Cord hook
12 Plastic loop/cable clamp
13 Connector assembly
14 Fan housing
15 Cord assembly
T o R eplace F ilter
D ust B ag
BAG REMOVAL :
1. Unsnap bag door from base.
2. Gently pull bag from
cardboard collar upwards.
3. Dust seal will close
automatically
BAG INSTALLATION :
1. Slide the cardboard collar
onto bag dock door until the
automatic closing dust seal
tab hole is locked in position.
2. Firmly push bag dock door
with both thumbs on
indication point until
it snaps.
WARNING: Unplug cord from
electrical outlet before servicing.
6
15
14
7
10
13
11
12
8
9
5
1
2
3
4
Plug
(Cord
Assembly)
➞
➞
Upper
Handle
Connector
Assembly
Before assembling
appliance. Remove two (2)
screws from connector
assembly (13). Slide upper
handle section (1) over
matching section of the
connector assembly (13),
aligning screw holes.
Finally, insert screws in holes
and tighten firmly until
handle is not loose.
Machine should be in
upright position when
inserting cord assembly into
loop.
Insert plug on cord assembly
into handle.
Wrap power cord (6)
around cord wrap (11) and
cord wrap (13) and secure
to “U” shaped part on plug.
