Oneida Air Systems 10 HP - Manual (Page 5)

III. General Specifications & Fan Performance Curves
4
10hp Fan Curves
O.A.S. 2007 c 10 HP Industrial Systems Owner’s Manual
Full welded exterior
Main body, cone and inlet: 16 ga. galv.
Flanged 12” dia. Inlet; Flanged 13” dia. Outlet
80” high
14” rolled steel flange discharge
36” dia. rolled steel flange for mounting
Cyclone C-3500
10hp Fan / Blower
Made in USA NYB 224 DH Arrangement 10
10 horsepower, Pulley drive with weather/shaft guard
TECO - Westinghouse TEFC 60 Hz 10hp Motor
Three Phase: 230/460v 24/12A (Usable on 208v 25.9 A)
Fan Wheel Dia.: 22.625”
3300 CFM @ 12” Static Pressure
System Packages Include:
Angle Iron Wall Mount Brackets
Angle Iron Stand
Plenum Box - 10 or 14 hole ring thimble plenum box to hold Tube Filters.
Silencer - For fan / blower outlet to 13” I.D., will reduce noise level.
Magnetic Motor Starters
Rotary Air-Loc
Optional Items:
This fan has moving parts that can cause
serious injury. Read the installation and
maintenance instructions and the AMCA Safety
Practices manual before starting maintenance
or operating.
1. Keep body, hands and objects away from
the inlet, outlet and other moving parts of the
fan such as belts, pulleys and shafts.
During Operation
2. Do not operate at excessive speeds or
temperatures.
Before starting maintenance work:
Lock power supply in off position and
immobilize fan wheel.
WARNING!
Exterior Cartridge Filters
10hp - 3 Cartridges - 390 Sq. Ft.
Spun-Bonded Polyester BIA ZH1/487 Test - Rated C
Captures 99.99% of test material over 20 microns
Captures 99.9% of test material between 0.2 - 2.0
microns @ 11 fpm face velocity
Filter Media
Exterior Tube Filters
10hp - 10 Tube Filters
Needle Felted Media BIA ZH1/487 Test - Rated G
Captures 99.99% of test material over 20 microns
Captures 99.5% of test material between 0.2 - 2.0
microns @ 11 fpm face velocity
55 Gal. Steel Drum
Other large dust bins available
Dust Bins
Static pressure and volume together determine
a fan’s performance. Several factors, such as
layout of ductwork and diameter of openings,
can affect a fan’s performance.
Performance -
Horsepower -
5.0
2.5
0.0
Fan S
tatic Pressure (In. Wg.)

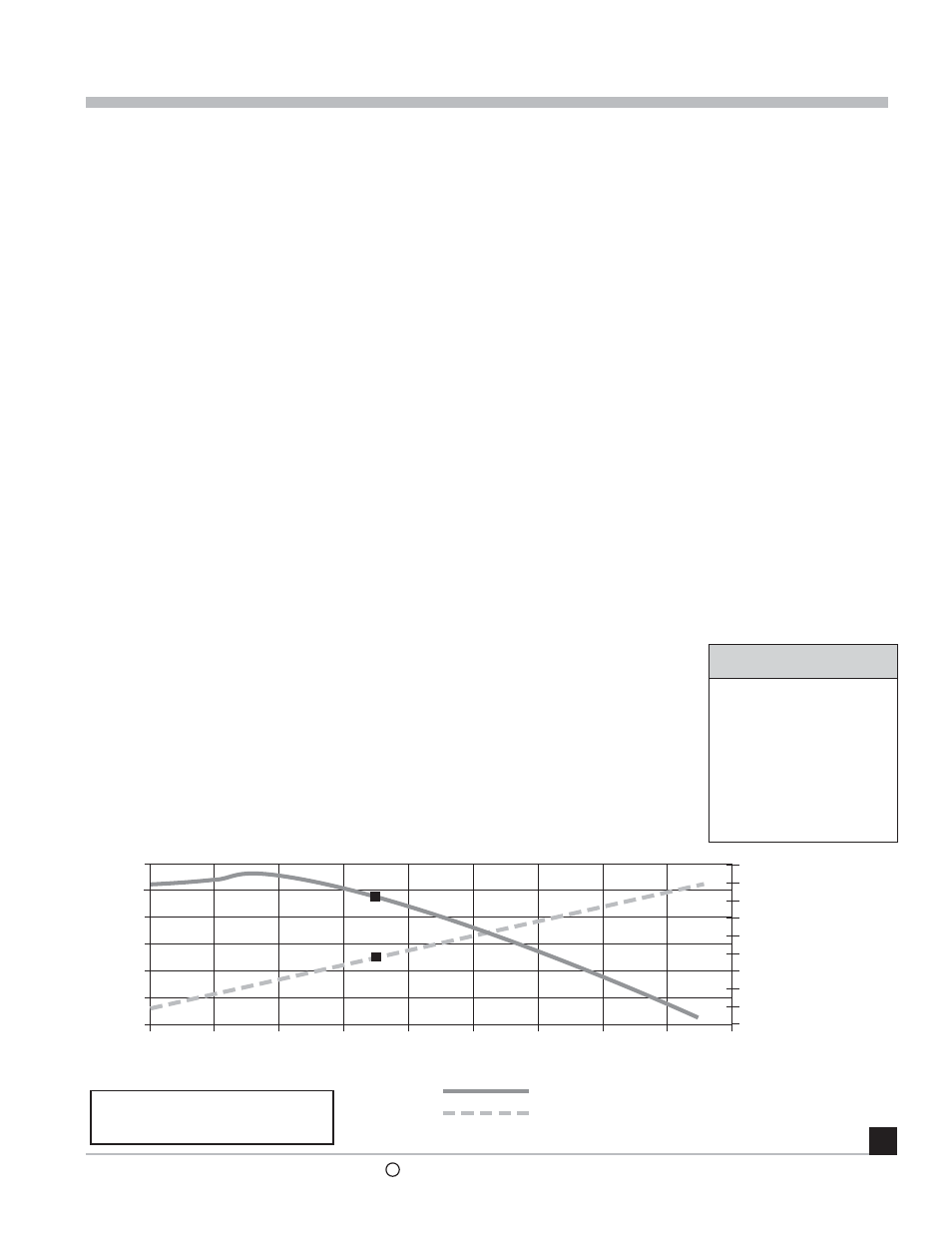

10hp Performance Curve
0 1000 2000 3000 4000 5000 6000 7000 8000
7.5
10.0
12.5
9000
0
2.5
5
7.5
10
12
15
17
20
22
Fan Input Power (bhp)
Volume Flow Rate (CFM)
