AMP4IC6

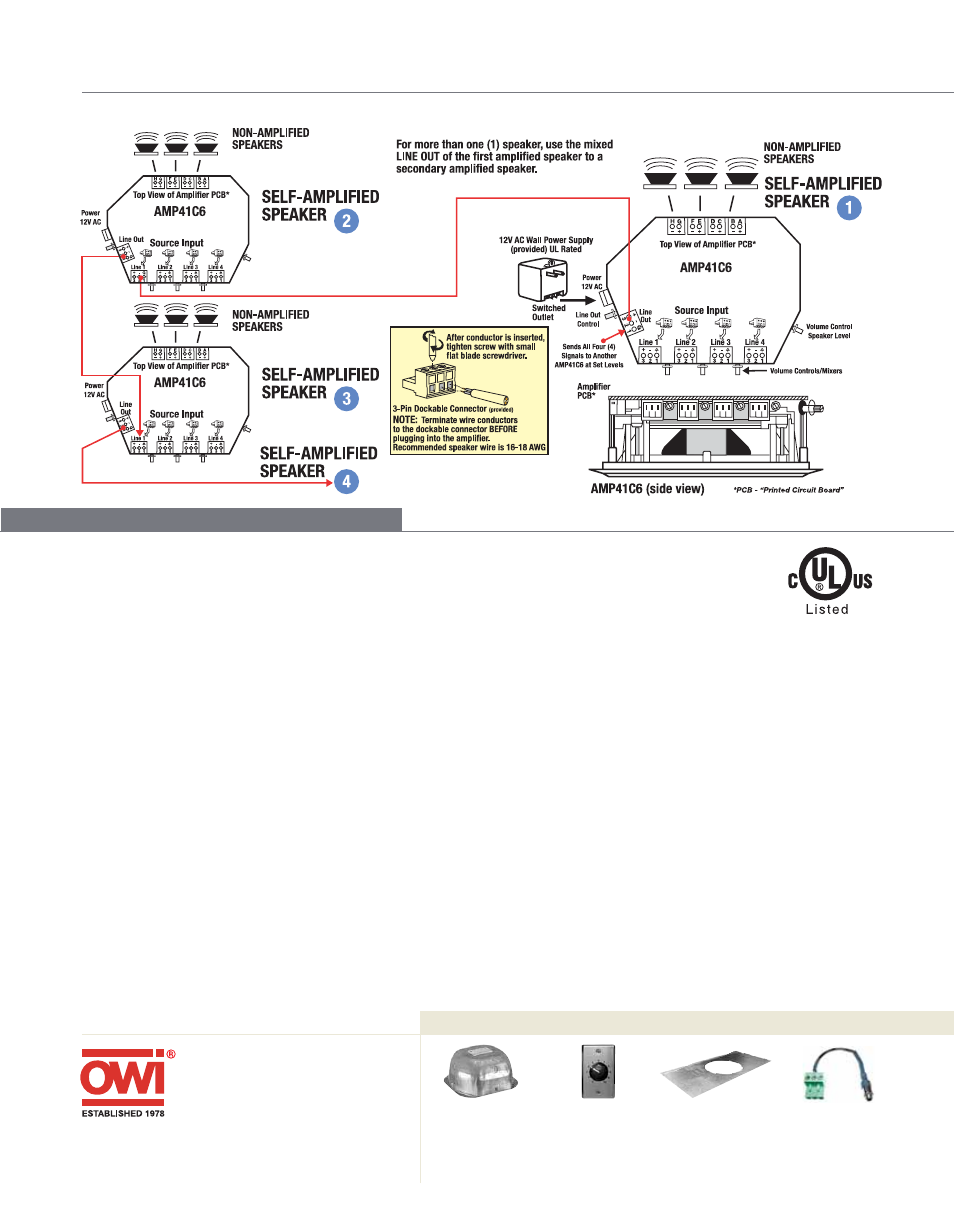

SELF-AMPLIFIED SPEAKER (4 INPUT / SOURCE) TO ANOTHER SELF-AMPLIFIED SPEAKER WIRING DIAGRAM
ARCHITECTS AND ENGINEERS
SPECIFICATIONS/TECHNICAL DATA
G E N E R A L S P EC I F I C AT I O N S :
Frequency Response 50 Hz to 15kHz. HF is optimized to enhance
frequency response of the speaker.
Total Harmonic Distortion (THD) <.1%
Signal to Noise Ratio (S/N) >90dB
Input Confi guration Differential (noise reducing)
Minimum Common Mode Rejection 40dB
Maximum Power Output 25 watts
At Load Impedance 4 Ohms (2 speakers in parallel or 4 speakers in series parallel)
Minimum Power Supply Voltage 8 Volts
Maximum Supply Voltage 14 Volts
Maximum Current Protected Yes
Short Circuit Protected Yes
One Wire to Ground Protected Yes
Minimum Load Impedance 3.2 Ohm
Input Load Impedance 10K Ohm
Maximum no. of Amplifi ers on one line 4
Power Supply 12 Volts AC 12- 14V AC
Inputs 4 Balanced Line
Outputs 1 Balanced Line
Controls 4 Input Level Controls
1 Line Out Level Control
1 Amplifi er Gain Control
Outputs 4 Output Jacks allowing automatic correct wiring for series parallel
connection by simply plugging each speaker into its jack.
Heat Sink An Oversize Heat-Sink is provided
High Voltage The highest voltage on the PCB is 12 Volts
Protection The amplifi er is protected against short and overheating
Plastic Fire rated V-0
Available Backcan (sold separately) UL Listed and Plenum Rated
Warranty 1 year
R ECO M M E N D E D ACC ESSO R I ES
OWI Incorporated
17141 Kingsview Avenue
Carson, CA 90746 USA
ph.. 310 . 515 . 1900 800 . 638 . 1694
fx. 310 . 515 . 1606 e. [email protected]
www.owi-inc.com
Backcan (BC)
UL Listed
Plenum Rated
Enclosure Backcan
Required as per
UL Standard
Mono (AMP-MOVC)
Stereo (AMP-STVC)
Line Level Volume Control
Tile Bridge
Model 6TB
Stereo Combiner
(AMPSTCOMB)
