PIPE SIZE FITTING K-Factor K-Factor 20 mA= 20 mA=
(IN.) TYPE Gallons Liters* in GPM in LPM
BRONZE TEES ON SCH 40 PIPE
1 FP-5310BR
582.34 153.86 51.52 194.99
1¼ FP-5312BR 330.54 87.33 90.76 343.53
1½ FP-5315BR 254.76 67.31 117.76 445.71
2 FP-5320BR 157.36 41.58 190.64 721.58
COPPER TEES FITTING ON COPPER PIPE SCH K
½ FP-5305CU
2459.19 649.72 12.20 46.17
¾ FP-5307CU 1108.02 292.74 27.08 102.48
1 FP-5310CU 649.87 171.70 46.16 174.73
1¼ FP-5312CU 422.03 111.50 71.09 269.06
1½ FP-5315CU 281.43 74.35 106.60 403.47
2 FP-5320CU 136.02 35.94 220.55 834.78
COPPER TEES FITTING ON COPPER PIPE SCH L
½ FP-5305CU
2406.30 635.75 12.47 47.19
¾ FP-5307CU 1174.77 310.37 25.54 96.66
1 FP-5310CU 672.28 177.62 44.62 168.90
1¼ FP-5312CU 402.84 106.43 74.47 281.87
1½ FP-5315CU 294.99 77.94 101.70 384.92
2 FP-5320CU 149.63 39.53 200.50 758.89
COPPER/BRONZE BRAZOLET ON SCH 40 PIPE
2½ FP-5325BR
117.31 30.99 255.74 967.96
3 FP-5330BR 78.62 20.77 381.58 1444.28
4 FP-5340BR 45.13 11.92 664.77 2516.15
5 FP-5350BR 32.79 8.66 914.91 3462.95
6 FP-5360BR 22.73 6.01 1319.87 4995.72
8 FP-5380BR 13.14 3.47 2283.68 8643.71
10 FP-5381BR 8.34 2.20 3597.17 13615.29
12 FP-5382BR 5.87 1.55 5109.58 19339.76

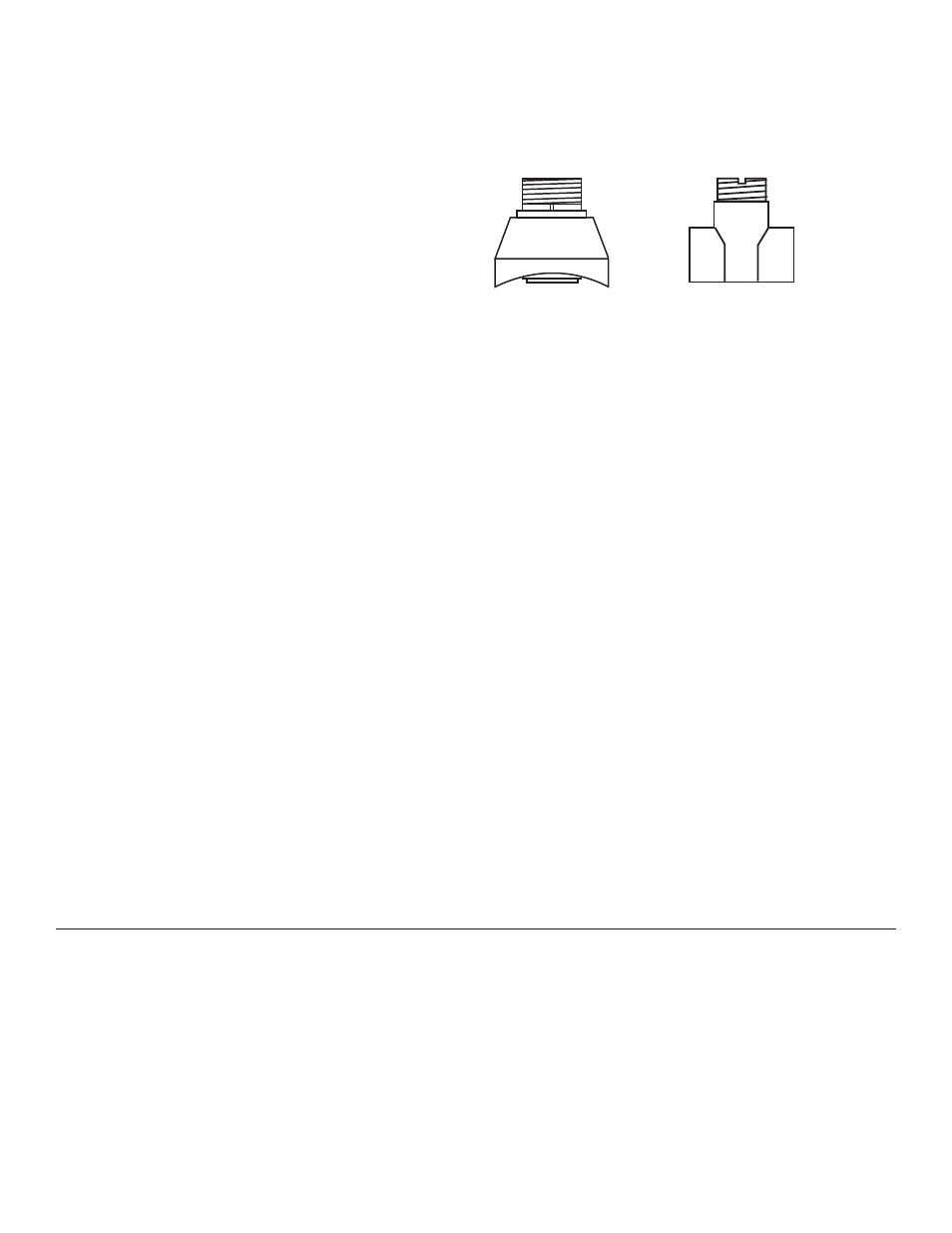

Metal Installation Fittings:
Bronze and Copper Tees and Brazolets
9. Calibration Data: K-factors* and Full Scale Current Values
