Starting Method: PROStart ®
Programmed Rapid-Start
Circuit Type: Series
Lamp Frequency: > 40KHz
Lamp CCF: Less than 1.7
Starting Temp: –5°F/–20°C min.
5
Input Frequency: 50/60 Hz
Low THD: < 10%
Power Factor: > 98%
Voltage Range: 108–305V
UL Listed Class P, Type 1 Outdoor
CSA or C/UL Certified
75°C Max Case Temp. (5 yr. warranty)
80°C Max Case Temp. (3 yr. warranty)
FCC 47CFR Part 18 Non-Consumer
Sound Rated A
ANSI C62.41 Cat. A Transient Protection
Dynamic End-of-Lamp-Life Sensing
Remote Mounting Capability
6
Performance Guide
Specifications*
Ordering Guide
<10% THD Electronic T4 Compact Fluorescent Systems
Dimensions: Packaging:
Metal “M” case: 4.95" L x 2.93" W x 1.35" H Quantity: 1 piece
Plastic “S” case: 4.95" L x 2.37" W x 1.10" H Weight: 0.40 lbs ea. (Plastic “S” case)
Mounting: Utilize flanges (4.57" L) 0.90 lbs ea. (Metal “M” case)
* See the SYLVANIA QUICKTRONIC Electronic Ballast Technology & Specification Guide (ECS-ELECTRONIC) for additional information.
* See wiring diagrams for proper installation.
5 Operation below 50°F may affect light output or lamp operation – see “Low Temperature Starting definition.
6 Typically 6 ft. with suitable ground plane, but varies by model and application – please contact ECS Application Engineering for information on longer applications.
Input Input Rated
2
Ballast Input System
Item Voltage Current Lamp 1 Lumens No. of Factor System Power Efficacy
Number Description 3 (VAC) (AMPS) Type (lm) Lamps (BF) Lumens (Watts) (lm/W)
13W DD/E,T/E 900 1 1.00 900 16 56
51810 QTP 1/2x13CF/UNV DS 120-277 0.25/0.11
13W DD/E,T/E 900 2 1.00 1800 29 62
18W DD/E,T/E 1200 1 1.00 1200 20 60
51811 QTP 1/2x18CF/UNV DS 120-277 0.32/0.14
18W DD/E,T/E 1200 2 1.00 2400 38 63
26W DD/E,T/E 1800 1 1.00 1800 28 64
51812 QTP 2x26/1x42/32CF/UNV DS 120-277 0.50/0.22
26W DD/E,T/E 1800 2 1.00 3600 54 67
32W DT/E 2400 1 0.98 2350 35 67
42W DT/E 3200 1 1.00 3200 45 71
26W DT/E 1800 2 1.02 3670 54 68
32W DT/E 2400 2 0.96 4600 69 67
51813 4 QTP 2x26/32/42CF/UNV DM 120-277 0.90/0.40 42W DT/E 3200 2 0.95 6080 94 65
0.53/0.23 57W DT/E 4300 1 1.00 4300 62 69
0.57/0.25 70W DT/E 5200 1 0.92 4780 71 67
1 Also compatible with other manufacturers’ equivalent 4 pin lamp types that meet ANSI standards.
2 Rated lamp lumens and performance data based on DULUX T/E series 4 pin lamps.
3 Data is for all three models within the brackets. The maximum input current is shown for maximum input power.
4 Q1 2006
Item Number 51813 QTP 2 x 26/32/42 CF/UNV DM Case Type (Mounting Style)
QUICKTRONIC PROFESSIONAL Line Voltage
Number of Lamps (1, 2) Primary Lamp Wattage
DUAL MOUNT
CF UNIVERSAL
Normal Ballast Factor
BALLAST
Green
Black
White
Blue
Red
R
R
Blu
Blu
G
B
W
L
A
M
P
Blue
Red
Y
Y
BALLAST
R
R
Blu
Blu
W
Y
Y
L
A
M
P
L
A
M
P
Red
Red
Blue
Blue
Yellow
White
Black B
Yellow
BALLAST
Green
R
R
Blu
Blu
G
B
W
Y
Y
L
A
M
P
L
A
M
P
Red
Red
Blue
Blue
Yellow
Yellow
White
Black
System Life / Warranty
QUICKTRONIC products are covered
by our QUICK 60+ warranty, a
comprehensive lamp and ballast
system warranty. For additional
details, refer to our QUICK 60+
warranty bulletin.
Specifications subject to change
without notice.

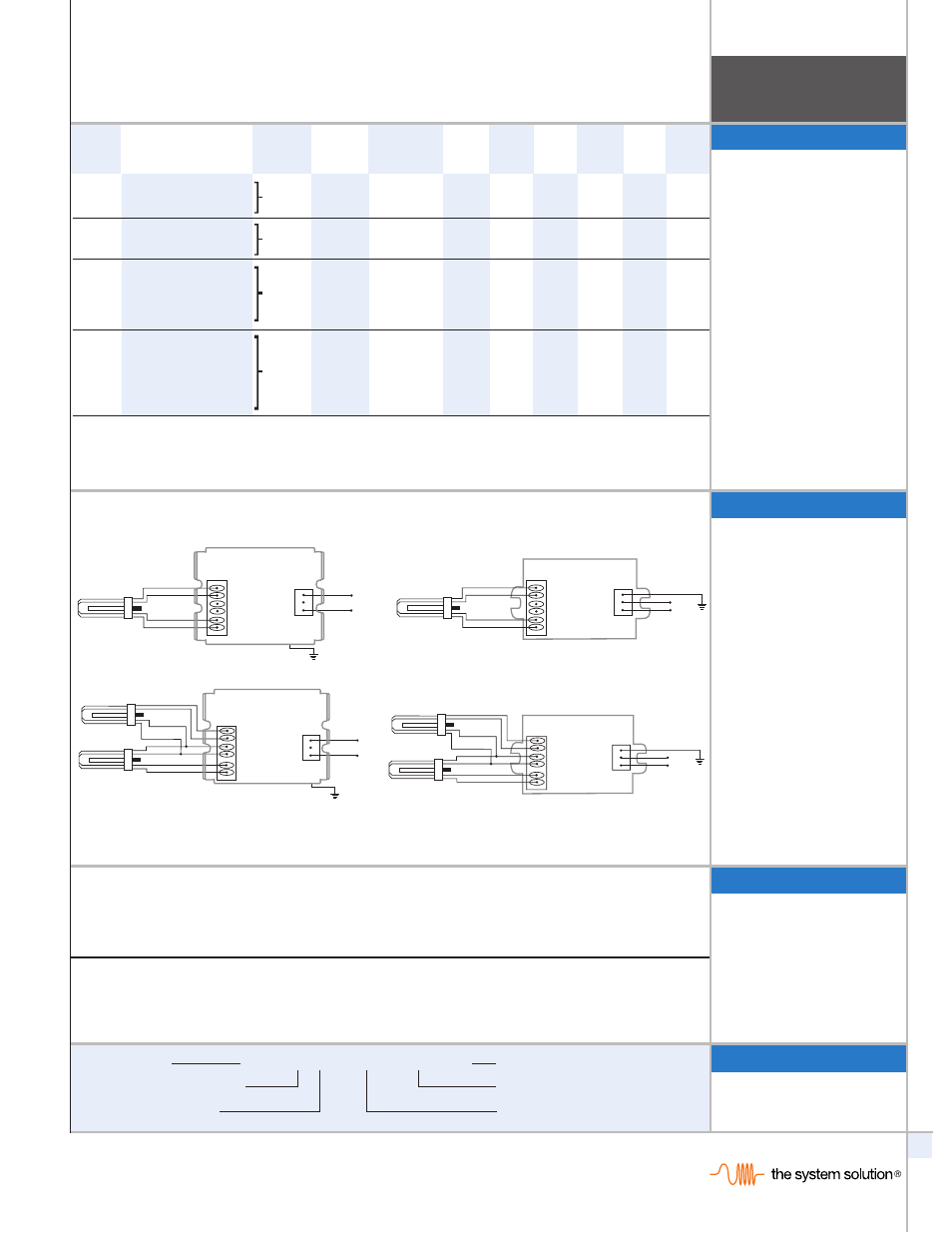

Wiring:
Push-in connectors
(no leads provided)
Use 18AWG solid copper wire only
BALLAST
White
Blue
Red
R
R
Blu
Blu
W
L
A
M
P
Blue
Red
Y
Y
Black B
Metal “M” Case Plastic “S” Case
QTP 2x26/1x42/32CF/UNV
model also operates:
1-lamp CF28/2D, CF38/2D,
FPC40/T5, FT40DL
1- or 2-lamp
FPC22/T5, FT24DL, FT24DF
2-lamp CF13DSE, FT18DL,
FT18DF, CF21/2D
QTP 2x26/32/42CF/UNV model
also operates:
2-lamp FT36DL, FT40DL,
FPC40T5
1+1 FPC22/T5 / FPC40/T5
