over the top of the pigtail on
the power cord (

fig 1).

8. To install cord strain relief

(22), hold power cord
7-8 inches from plug. Pinch
power cord together and
slide approximately
1-2 inches through hole in
cord strain relief. Carefully
slide power cord over clamp
on the cord strain relief and
pull excess until the power
cord is tightly rested under
clamp. (

fig 2).

9. Attach cord stain relief with power cord attached to the back of

the unit using the M5 thumbscrew (

fig 3).

4

Assembly

1. Install handle by sliding it into the opening in the top of the bag

housing until it bottoms out. Install and tighten with the M5
thumbscrew (21).

2. Install the hose by pushing one end into the top of the bag

housing. Push the other end into the wand.

3. Position the open end of wand over the opening of the power

brush housing and push the wand into the sleeve in the back of
bag housing until it snaps into the notch.

4. Plug the Cord Pigtail (lower power cord) into the bag housing.

5. Make sure the dust bag is installed. For instructions refer to the

“Dust Bag Removal and Installation”.

6. Snap two of the tools into the option mount.

7. To secure the power cord to unit, plug the power cord into the

outlet at the top of the vacuum housing. Slide cord restraint (23)

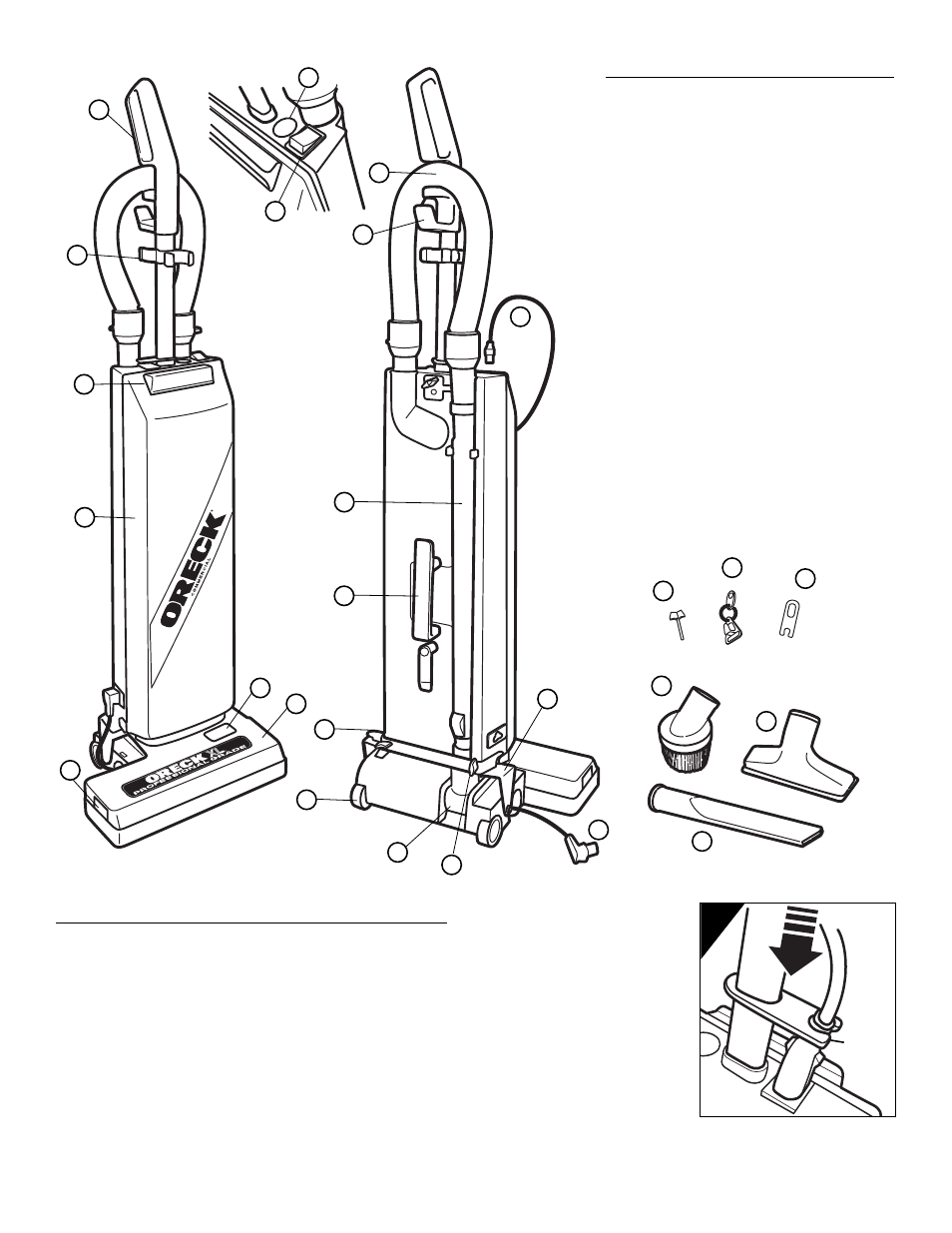

Parts List

To assist you in identifying components of your
vacuum, the parts have been numbered as follows:

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

1. Handle

2. Option Mount

3. Full Bag Light

4. Main Power Switch

5. Door Latch

6. Bag Housing

7. Release Handle

8. Electronic Display

9. Handle Pivot

10. Brush Housing

11. Power Brush

Housing

12. Hose

13. Upper Cord Hook

14. Power Cord

15. Wand

16. Transport Handle

17. Thumb Nut

18. Base Inlet

Connector

19. Cord Pigtail

20. Rear Wheel

21. M5 Thumbscrew

22. Cord Strain Relief

23. Cord Restraint

24. Dusting Brush

25. Upholstery Brush

26. Crevice Tool

24

25

26

21

22

23

1

Cord
Restraint
