RCA BUILT-IN PSD3220ZBB User Manual

Psd3220zbb—built-in dishwasher

background image

Created 8/97

PSD3220ZBB—Built-In Dishwasher

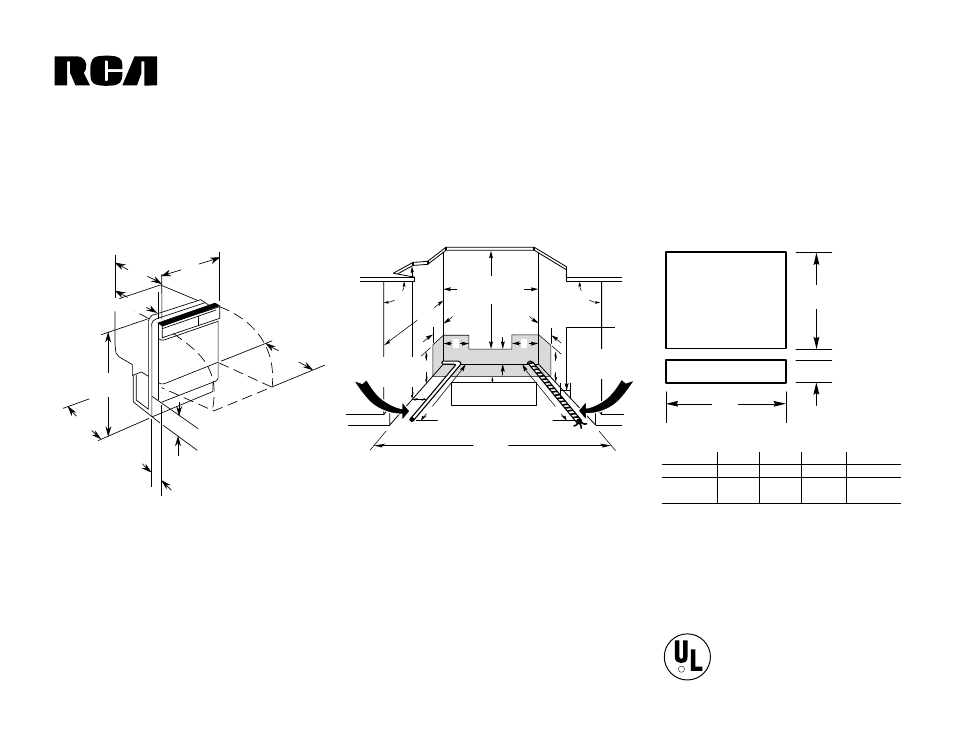

Dishwasher Dimensions (in inches)

Wood Insert Cut-Out
Dimensions (in inches)

Installation Information
(in inches)

Note: Dishwasher must not be installed more than 10' from sink
for proper drainage. All plumbing and electrical work must be in
accordance with local codes. Dishwasher includes drain hose
and leveling legs.

Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.

Electrical Rating
Voltage AC.......................................................120
Hertz ..................................................................60
Total connected load amperage.......................8.6
Calrod

®

heater watts.......................................500

For use on adequately wired 120-volt, 15-amp
circuit having 2-wire service with a separate
ground wire. This appliance must be grounded
for safe operation.

For answers to your Monogram,

®

GE Profile

Performance Series,

GE Profile,

GE,

Hotpoint and RCA appliance questions, call
GE Answer Center

®

service, 800.626.2000.

R

Listed by
Underwriters
Laboratories

This wall area

must be free of

pipes or wires

Countertop

4

6

Hot

water

line on

left

4

4

2

Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

6

34-1/2±1/4"

Underside

of countertop

to floor

5

5

90°

Electrical
wiring on

right

Electrical

wiring is

3" from
cabinet

24

25-1/8*

21-1/2*

3-1/4

4 (Adjustable)

34" MIN.
adj. to 35"

*Add 1/4" for

*

rear insulation

23-3/8*

24-3/4

B

Access insert

Door insert

A

C

Panel

Models/Kits

A

B

C

Thickness

GPF325 Kit

18-7/8” 23-9/16” 3-11/16”

1/4”

4-1/4” to

GPF375 Kit

18-15/16” 23-5/8”* 3-3/4”**

3/4”

*Bottom of panel must be notched 1-1/2" x 1/2" to clear

across panel

**Adjustment required to match adjcent cabinets fronts due to

leveling leg adjustment, 4" nominal.
