6. Set up
SE5
SE6
SE7

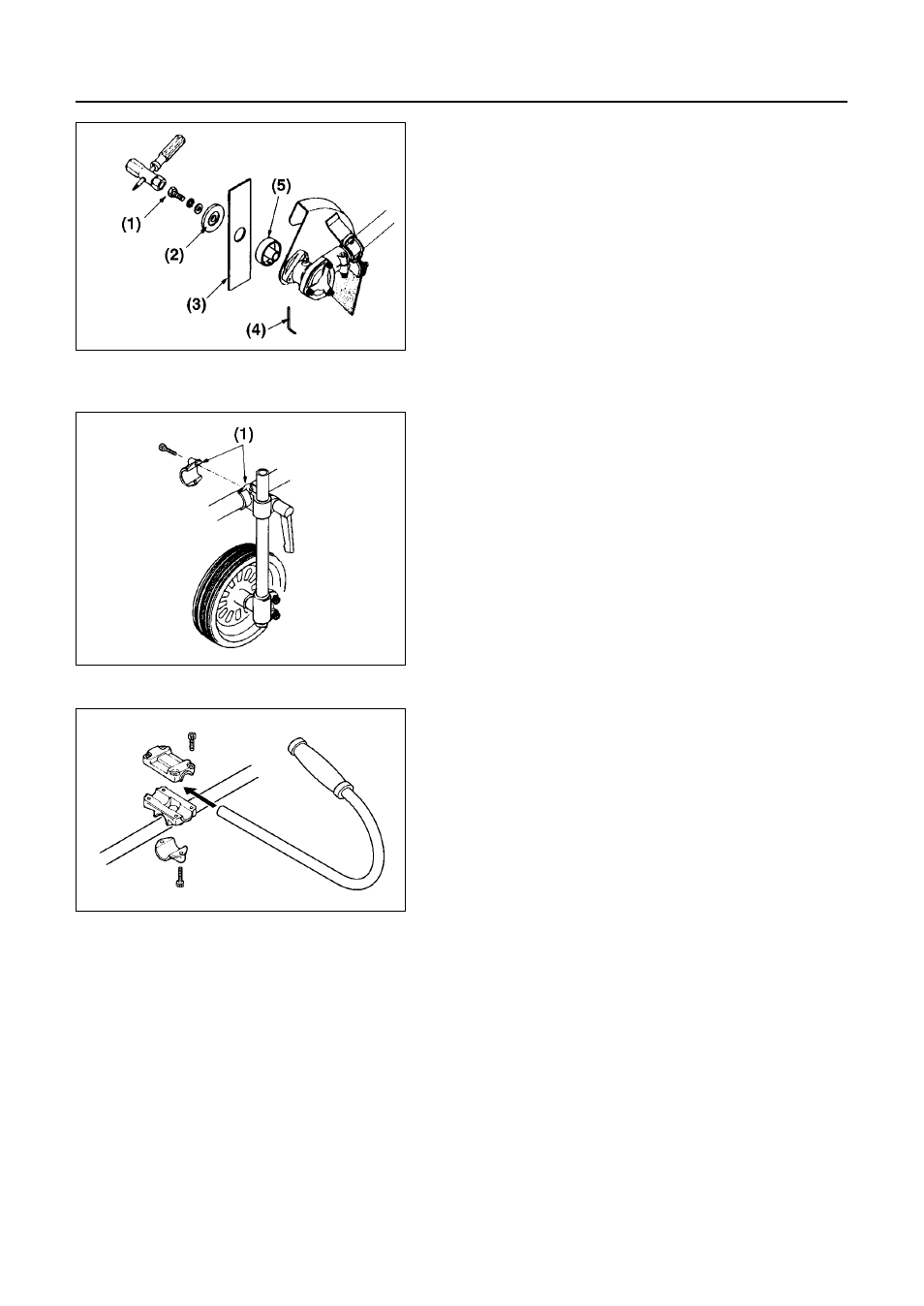

3.Place the blade between the cutter holders (A)
and (B) while locking the gear shaft by putting
the bar, one of the tools provided, through the
key holes on the holder(A) and the gearcase.
Use the socket and the screwdriver as shown in
the picture below to tighten the blade mounting
bolt. (SE5)
(1) Blade mounting bolt (Left-handed)
(2) Cutter holder (B)
(3) Blade
(4) Bar
(5) Cutter holder (A)
4.Split the bracket and install the wheel assembly
to the shaft tube and clamp at a position best for
your job. (SE6)
(1) Bracket
5.Install the J-shaped handle to the shaft tube and
clamp at a position best for your job. (SE7)
❲ 15 ❳
