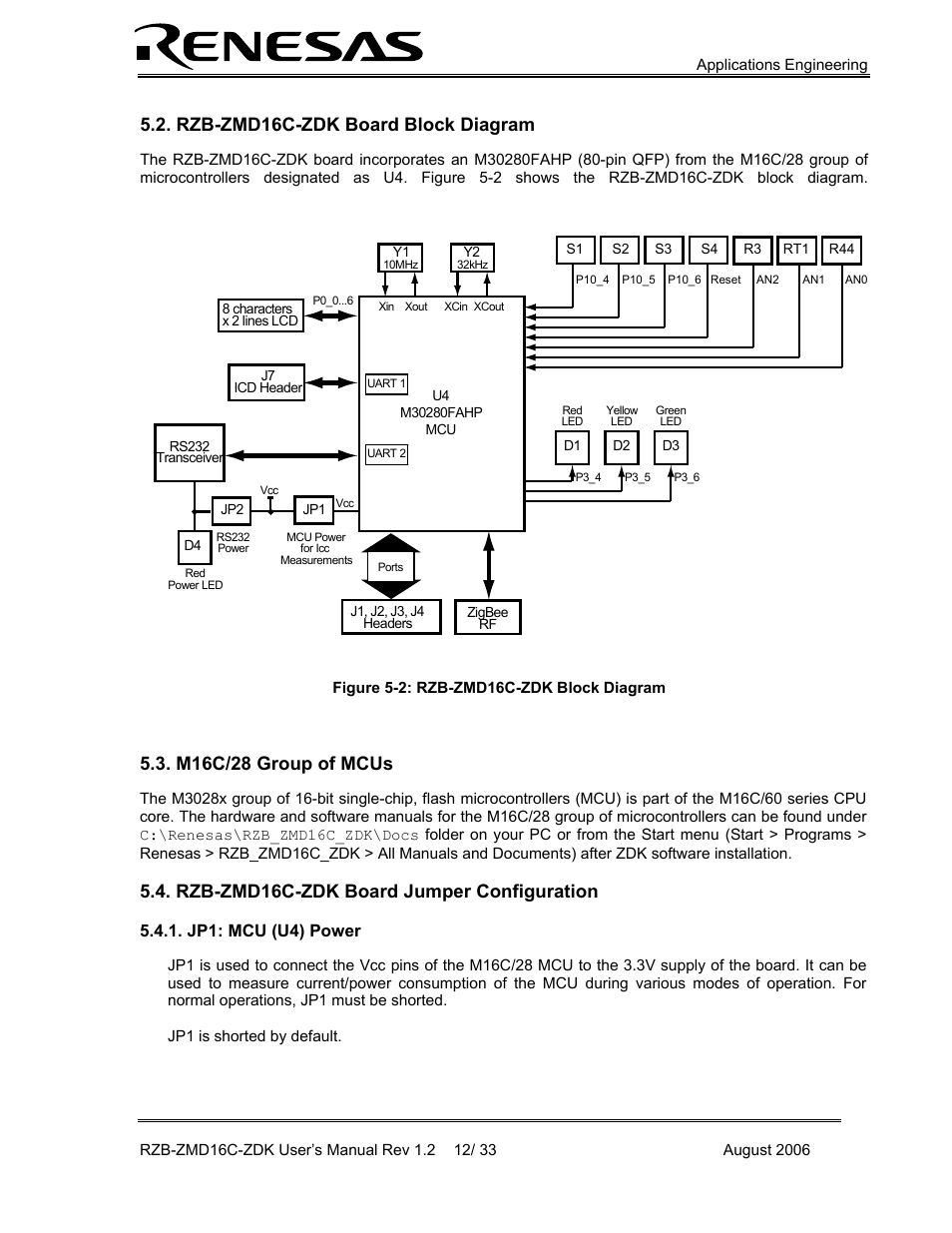

Rzb-zmd16c-zdk board block diagram, M16c/28 group of mcus, Rzb-zmd16c-zdk board jumper configuration – Renesas RZB-ZMD16C-ZDK User Manual

Page 12: Jp1: mcu (u4) power

Text mode
Original mode

Rzb-zmd16c-zdk board block diagram, M16c/28 group of mcus, Rzb-zmd16c-zdk board jumper configuration | Jp1: mcu (u4) power | Renesas RZB-ZMD16C-ZDK User Manual | Page 12 / 33
