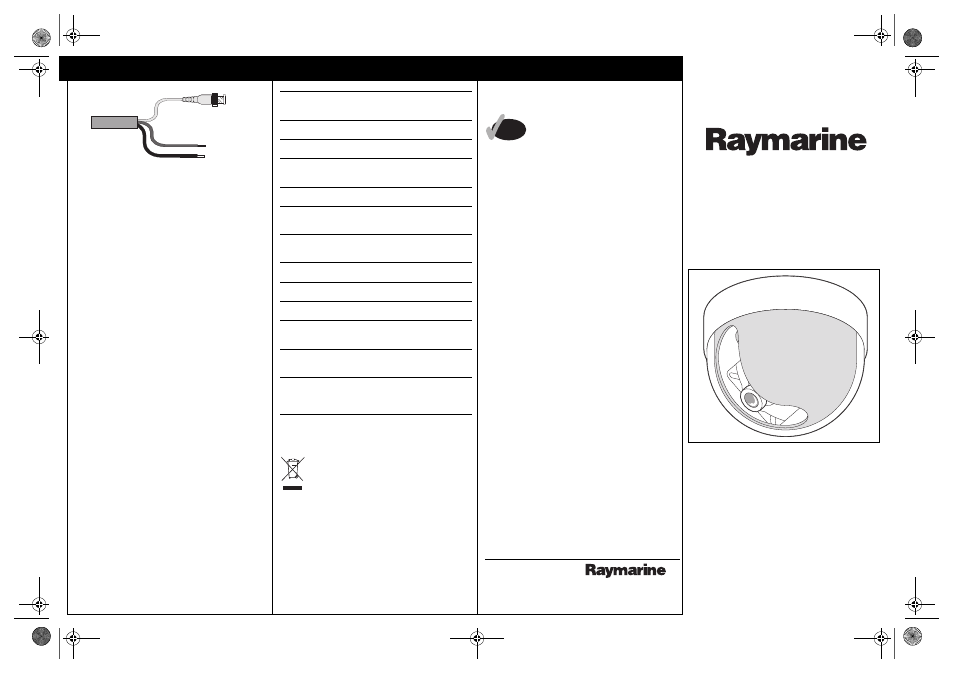

CAM 50

User Guide

Technical Support

Technical Specification

Maintenance

If you do not have a breaker in the power
circuit, an in-line 0.5 A quick blow fuse should
be fitted to the positive (red) lead of the cable.

Maintenance and

Troubleshooting

Your Raymarine CAM 100 does not contain
user-serviceable parts. They should be
serviced only by authorized Raymarine service
technicians at a Raymarine factory facility.

Routine Maintenance

Routine maintenance should be carried out on
a regular basis:

Examine all cables for signs of damage
such as chafing, cuts or nicks.

Check that all cables are securely
connected.

Spray the camera and lens with fresh water
and wipe with a soft lint-free cloth to
remove debris or salt deposits.

Troubleshooting

Waste Electrical and Electronic

Equipment (WEEE) Directive

Raymarine fully complies with the
WEEE directive and as part of its envi-
ronmental policy asks you to be aware
of how you should dispose of this

product properly. The crossed out wheelie bin,
illustrated on the left, and found on our prod-
ucts signifies that this product should not be
disposed of in general waste or landfill. Please
contact your local dealer, national distributor or
Raymarine Technical Services for information
on product disposal.

Restriction of the use of certain

Hazardous Substances

This product uses components
that comply with the requirements
of the Restriction of the use of
certain Hazardous Substances

(RoHS) Directive 2002/95/EC.

Warranty

To register your new Raymarine product,
please take a few minutes to visit our website

www.raymarine.com.

It is important that

you register to receive full warranty benefits.

Technical support

Complete product information and interactive
help is available at:

www.raymarine.com

North and South America

Raymarine Technical Support

+1-800-539-5539 or, +1-603-881-5200

Product Repair and Service

Raymarine Product Repair Center

21Manchester Street, Merrimack,NH0354-
4801

Europe, Middle East, Africa and

Australasia

Raymarine Technical Support

+44 (0) 23 9271 4713

Product Repair and Service

Raymarine plc, Anchorage Park, Portsmouth,
PO3 5TD, England.

Problem

Solution

Camera does not
function

1. Make sure that the cable is
sound and

that all connec-

tions are tight and free

from

corrosion.
2. Check system fuses.
3. Check that the display is set up

correctly to receive the

images.

Refer to the relevant display
handbook for full details.

Red +12 V
Black - 0 V

Video connector

D8537_1

Format

NTSC 512 x 492 pixels
PAL 500x 582 pixels

Imager

1/3 Sony DSP Color CCD

Horizontal resolution 380TVL

Scanning system

NTSC 525 lines 2:1 interlaced
PAL 625 lines

Video output

Composite 75 Ohms

Shutter speed

NTSC 1/60 - 1/100.000sec
PAL - 1/50 - 1/100.000 sec

Minimum illumina-
tion

0.3 Lux at F2

Waterproof

IP63

Power connection

12 V tinned leads

Video connections

Female BNC

Operating tempera-
tures

-10

o

C to +50

o

C (-14

o

F to 122

o

F)

Power consumption

80 mA with regulated power
input.

Lens

3.6 mm
Best focus - 1.5 m
Viewable distance - 3.5 m

Document No:81294_1 Date: December 2006

RoHS

COMPLIANT
