ASSEMBLY
RC456 02/11
Assembly Section 3-5
© 2011 Alamo Group Inc.
ASSEMBL
Y

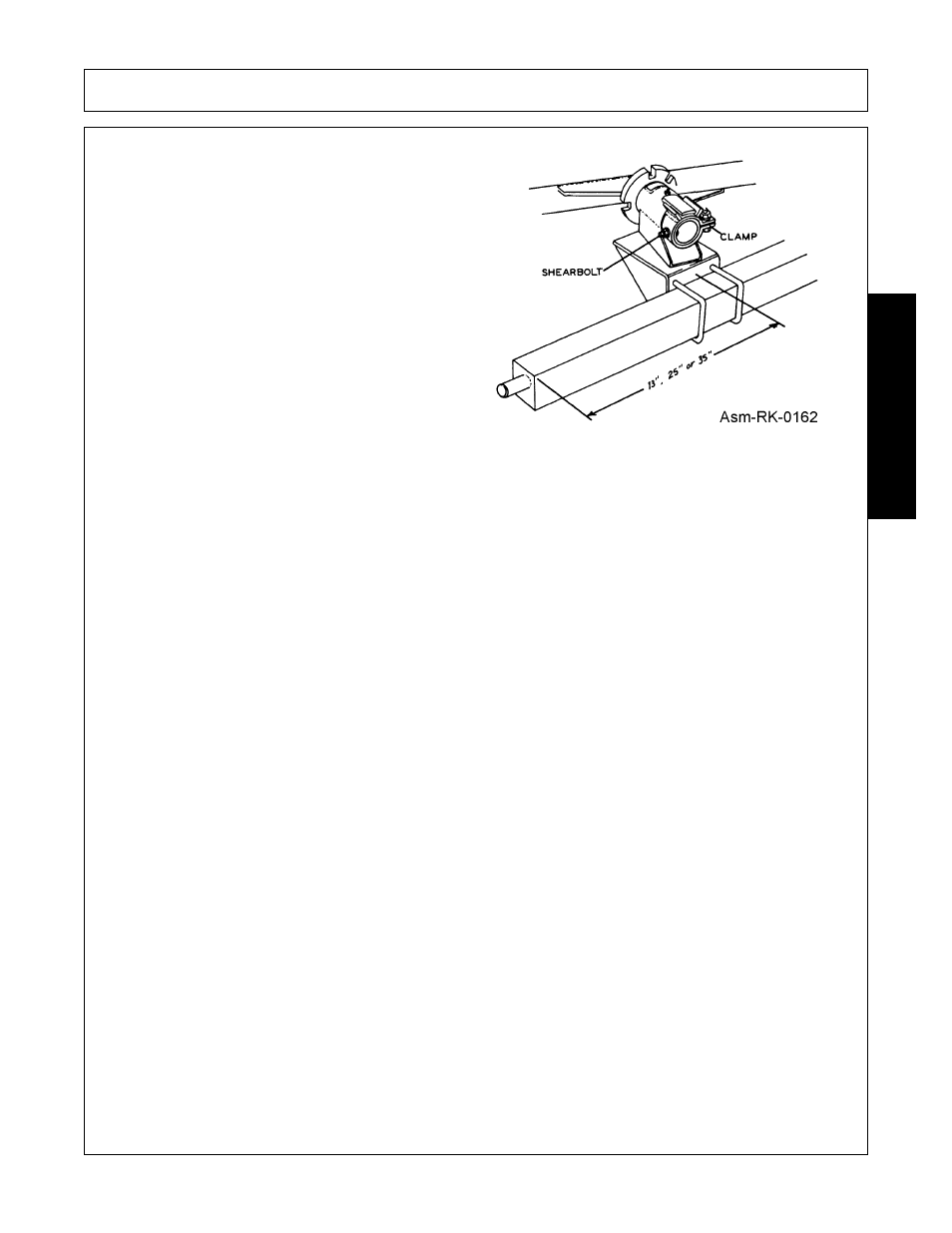

Important: When the rake is positioned correctly,
drill a hole through the clamp and the rake tube and
install a 5/16” shear bolt, lockwasher, and nut.
Figure Asm-RK-0162
Note: Before operating this machine, lubrication of specific parts must be completed. Check tightness of lug
bolts and spindle setscrews.
