1. INPUT Jack

Connect your electric guitar here.

2. [SELECT] Switch

Switches between the JC CLEAN and LEAD channels.

You can confirm which channel is selected by checking which red

indicator is lit. (JC CLEAN: left; LEAD: right).

Channels can be switched using optional BOSS FS-5U or FS-6 foot

switches.

3. [TUNER] Switch

Use this when you want to tune your guitar. When you turn on the
switch, it will light red, and you’ll be able to use the Tuner function.
For more detailed information, refer to “Using the Tuner Function” (p. 7).

JC CLEAN Channel

This is a model of Roland’s famous JC-120 Jazz Chorus guitar amplifier.

The ultra-clean, ultra-flat sound offers a smooth feel. This amp is ideal

for creating sounds in combination with a multi-effects device.

4. [VOLUME] Knob

Adjusts the JC CLEAN channel volume.

LEAD Channel

5. Type Switch

You can select from the following six types.

When the tuner function is on, you can use this to select the name of

the string to be tuned (p. 7).

Type

Description

ACOUSTIC SIM

This original amp model gives you a dynamic

acoustic guitar sound using a standard electric

guitar.

OVERDRIVE

Natural distortion sound similar to that obtained

by turning an amp’s volume up completely.

DISTORTION

Harder distortion than OVERDRIVE.

METAL

Even harder and heavier than DISTORTION, which

can get long sustained notes.

METAL STACK

Very fat sound of a Heavy Metal full amp stack.

EXTREME

High-gain sound delivering thick lows and

intense distortion while still preserving the

sound’s clear definition.

6. [GAIN] Knob

Adjusts the LEAD channel’s distortion level.

7. [VOLUME] Knob

Adjusts the LEAD channel volume.

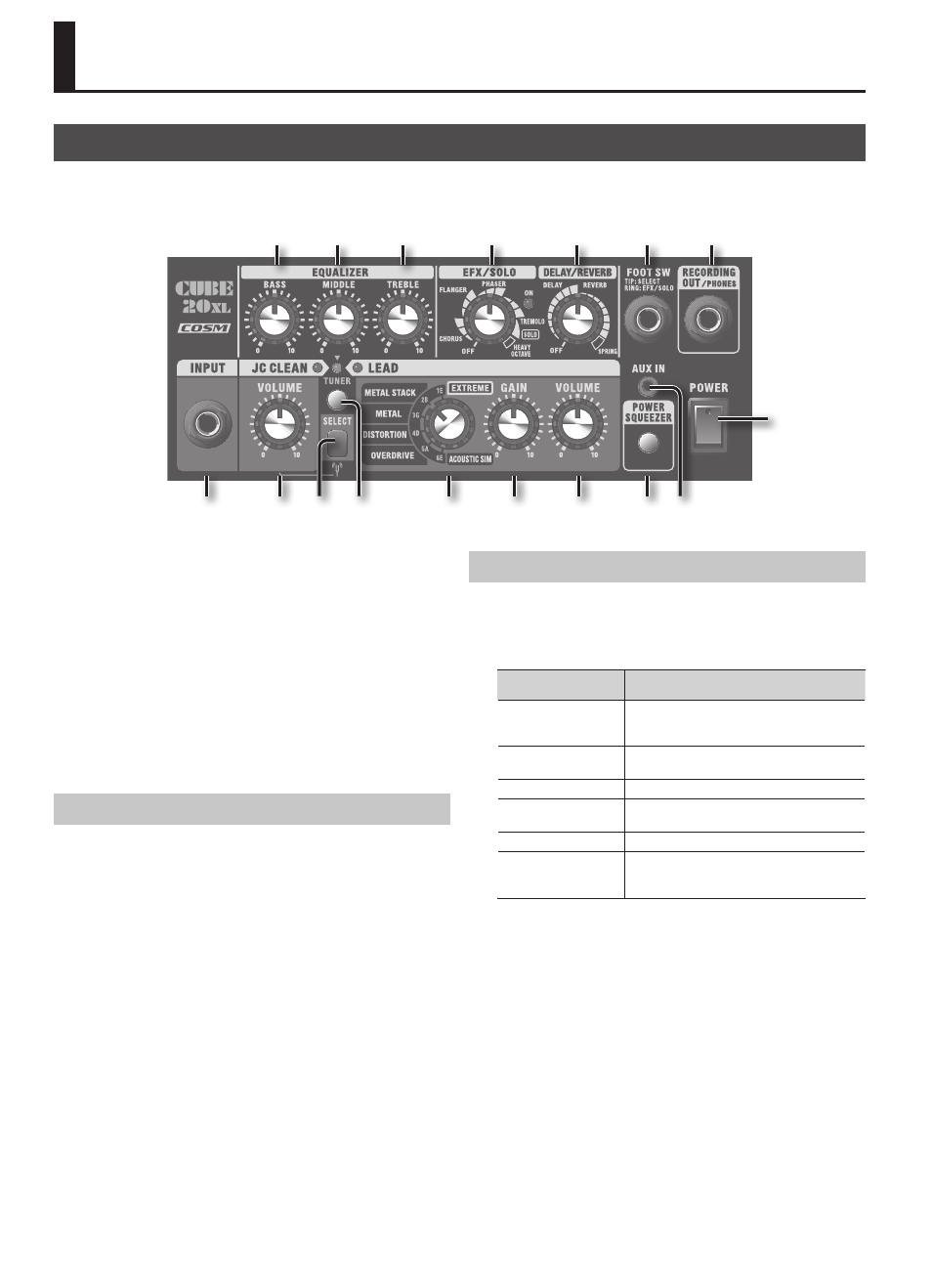

Panel Descriptions
