10
ST2 SETUP AND CONNECTIONS
ANTENNA CONNECTIONS
Grounding an Outdoor
Antenna
If the tuner is used with an
outdoor antenna, the anten-
na must be grounded
against static charges and
voltage surges. Consult the
instructions that came with
the antenna or contact the
antenna manufacturer for
proper installation instruc-

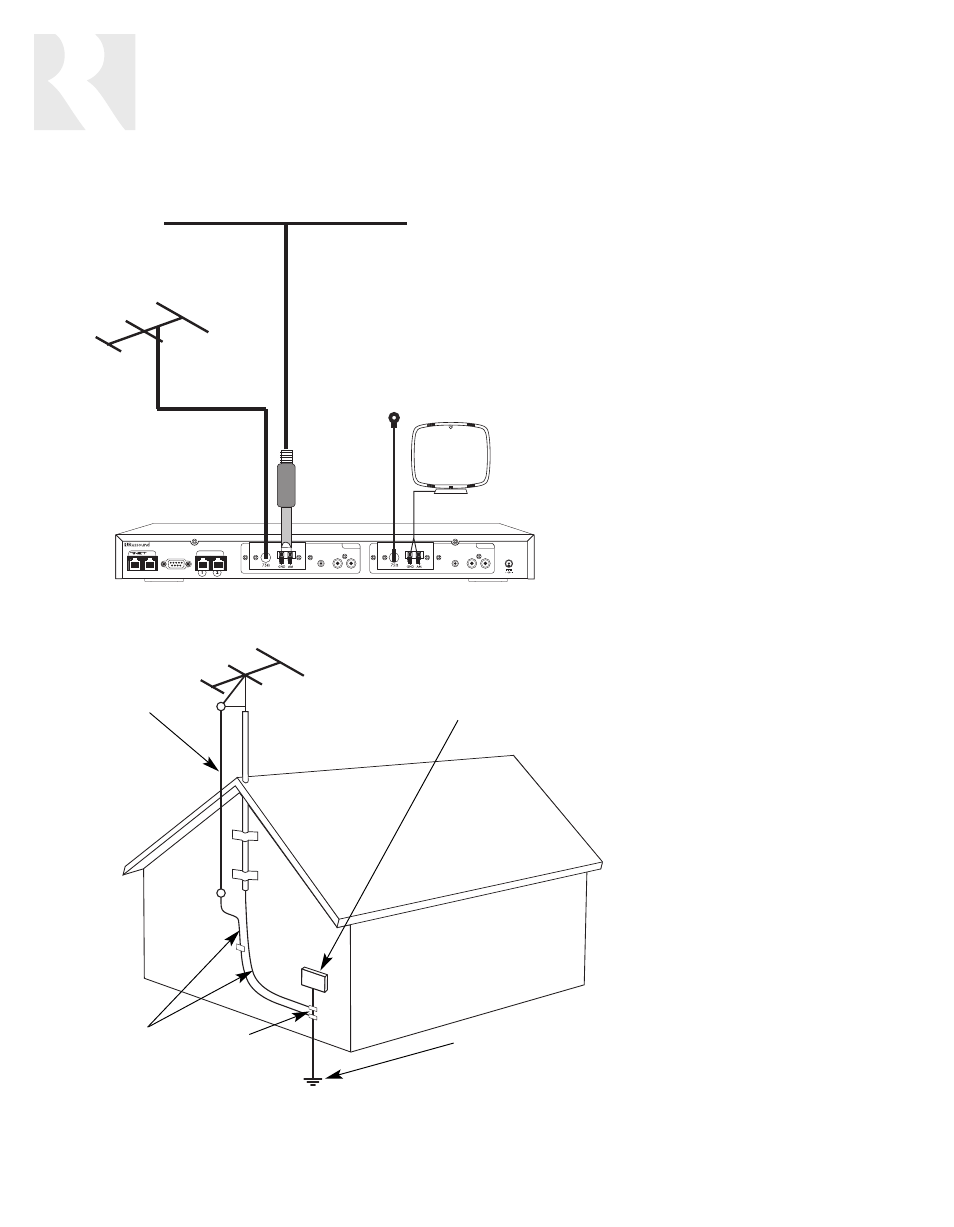

tions. The adjacent dia-
gram gives a general
depiction of how an out-
door antenna should be
grounded. For complete
guidelines on antenna
grounding procedures,
please consult the National
Electrical Code, Section
810, ANSI/NFPA No. 70-
1984.
Antenna
Lead In Wire
Grounding
Conductors Ground
Clamps Power Service Grounding
Electrode System
Electric
Service
Equipment
Connecting an Indoor
and Outdoor Antenna
The diagram at left depicts
a typical setup using the
ST2 Tuner with the included
FM antenna and AM loop
antenna. Also shown are
two outdoor antenna
options (not included). (Not
to scale)
RS-232
INTERFACE IR L R
AUDIO OUTPUT
12VDC 1.5A
IN OUT
NEWMARKET, NH U.S.A. ST2 Smart Tuner
LINK KEYPAD PORTS
TUNER 1 TUNER 2
FM COAX
LOOP ANTENNA FM COAX
LOOP ANTENNA Serial#
MADE IN KOREA
IR L R
AUDIO OUTPUT
FM ant
enna
ST2 Tuner
Long wire antenna
75-ohm c
oax
75-ohm c
oax
300 ohm
to 75 ohm
balun
AM loop antenna
Outdoor antenna
