6
Connect
ions
%QPPGEVKPI /KETQRJQPGU

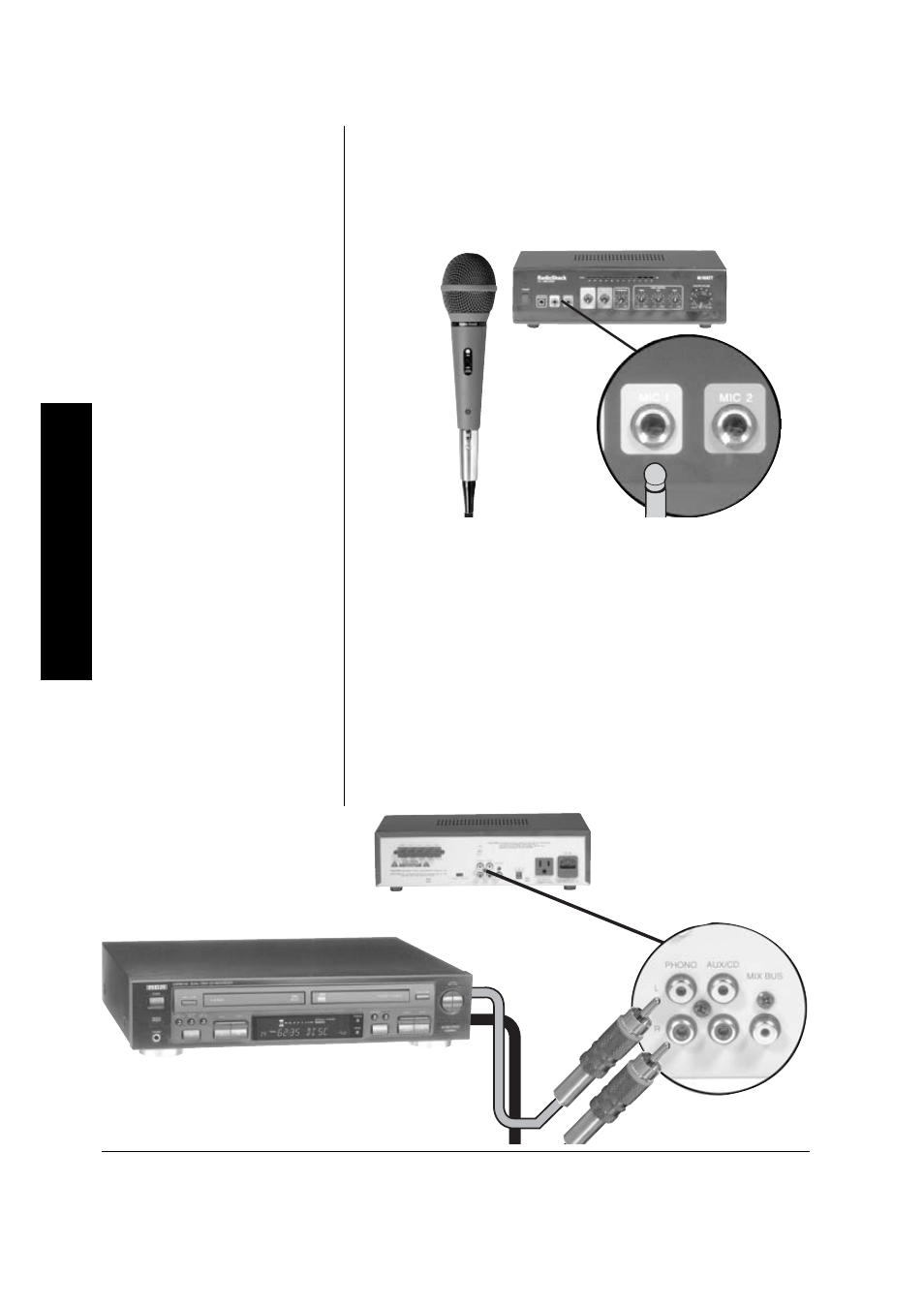

You can connect one dynamic microphone
(not supplied) to MIC 1 and another to MIC 2 using
a 1/4” (6.35 mm) plug.
%QPPGEVKPI C 6WTPVCDNG
You can connect a low level audio input source,
such as a magnetic cartridge turntable, to the
amplifier’s L and R PHONO jacks. With this
connection, set the PHONO and AUX/CD selector
switch to PHONO.
%QPPGEVKPI CP #WZKNKCT[ 5QWPF 5QWTEG
You can connect any high-level sound source, such
as a CD player, tape deck, or tuner, to the
amplifier’s AUX/CD jack.
MIC 1 MIC 2
AUX/CD Jack
