4

D

ESIGN

F

EATURES

I

NSTALLATION

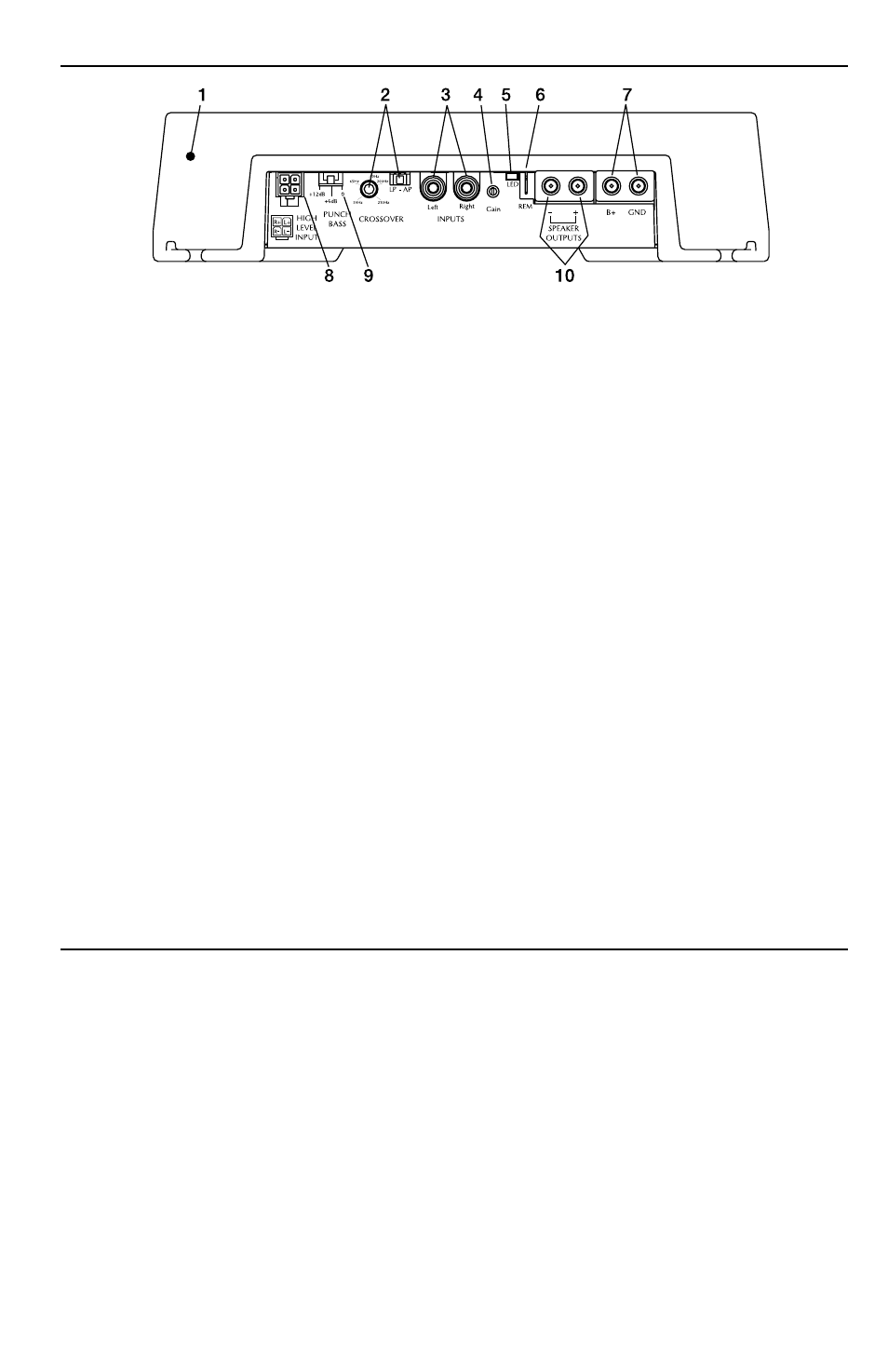

1. Cast Aluminum Heatsink – The cast aluminum heatsink of the Punch amplifier dissipates heat

generated by the amplifier's circuitry. The inherent advantage of casting provides a 30%
improvement of cooling over conventional extrusion heatsink designs.

2. Variable Crossover – The amplifiers have a built-in 12dB/octave Butterworth filter with a

crossover point variable from 50Hz to 210Hz. The crossover can be set to Low-Pass (LP) or it
can be bypassed by setting it to All-Pass (AP).

3. RCA Input Jacks – The industry standard RCA jacks provide an easy connection for signal level

input. They are gold-plated to resist the signal degradation caused by corrosion.

4. Gain Control – The input gain control is preset to match the output of most source units. It can

be adjusted to match output levels from a variety of source units.

5. LED Power Indicator – The LED illuminates when the unit is turned on.

6. REM Terminal – This spade terminal is used to remotely turn-on and turn-off the amplifier when

+12V DC is applied.

7. Power Terminals – The power and ground connectors on the Punch amplifier are gold-plated

and will accommodate up to 8 AWG wire maximizing the input current capability of the
amplifier.

8. High Level Inputs – The high level inputs use a detachable connector terminated with 20 AWG

leads. These inputs should be used if the source unit has only speaker line (high level) outputs
and not RCA outputs.

9. Punch Bass – The Punch Bass control helps correct for acoustical deficiencies in the listening

environment by helping produce full range sound without adding excessive boost.. The Punch
Bass control is a narrow band adjustment at 45Hz switchable from 0dB to +6dB to +12dB.

10. Speaker Terminals – The heavy duty, gold-plated terminal block connectors (+ and –) will

accept wire sizes from 8 AWG to 18 AWG. These gold-plated connectors are immune to
corrosion that can cause signal deterioration.

INSTALLATION CONSIDERATIONS

The following is a list of tools needed for installation:

Volt/Ohm Meter
Wire strippers
Wire crimpers
Wire cutters
#2 Phillips screwdriver
Battery post wrench

Hand held drill w/assorted bits
1/8" diameter heatshrink tubing
Assorted connectors
Adequate Length—Red Power Wire
Adequate Length—Remote Turn-on Wire
Adequate Length—Black Grounding Wire
