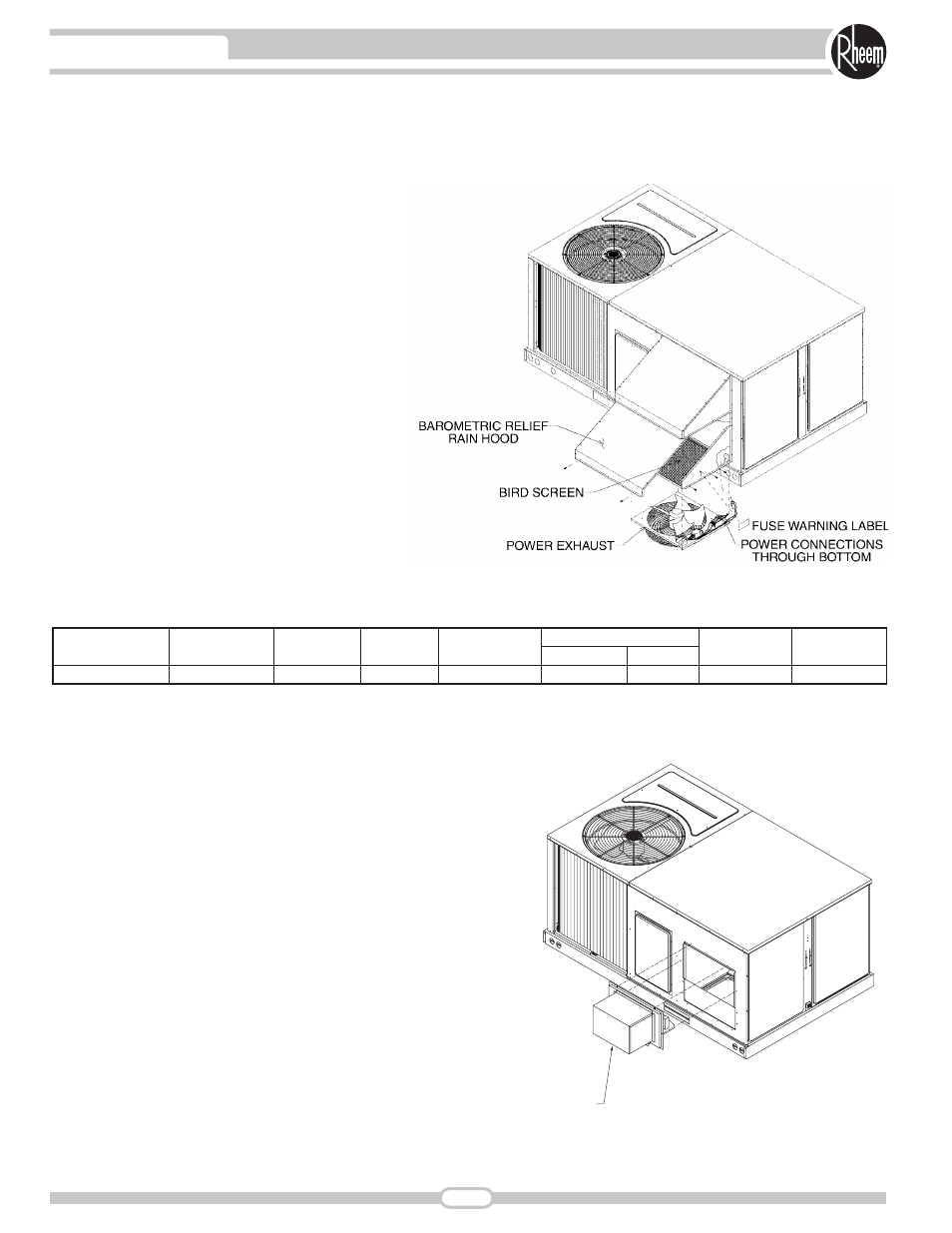

INTEGRAL POWER EXHAUST FOR ECONOMIZER
(FIELD INSTALLED ONLY)

RXRX-BFF04C—3-5 Ton [10.6-17.6 kW] Models 208-230 V, 1 PH, 60 Hz

■

For RXRD-KECM3 Economizer

■

Downflow or horizontal applications

■

Requires separate power supply with disconnect

■

Adjustable switch on economizer, factory preset to
energize power exhaust at 95% outside air position

■

Polarized plug connects power exhaust relay
to economizer

[

] Designates Metric Conversions

FRESH AIR DAMPER

3 to 5 Ton [10.6 to 17.6 kW] Models
RXRF-FBA1 (Manual)
RXRF-FBB1 (Motorized)

Model No.

Volts

RXRX-BFF04C

208-230

No. of Fans

Phase

240

Watts (ea.)

2600

High Speed

1700

1.06

FLA (ea.)

1.9

LRA (ea.)

CFM

➀

RPM

➀ CFM is at 0" w.c. external static pressure.

POWER EXHAUST KIT FOR RXRD-ECCM(-), RXRD-EECM(-) ECONOMIZERS

FRESH AIR DAMPER
