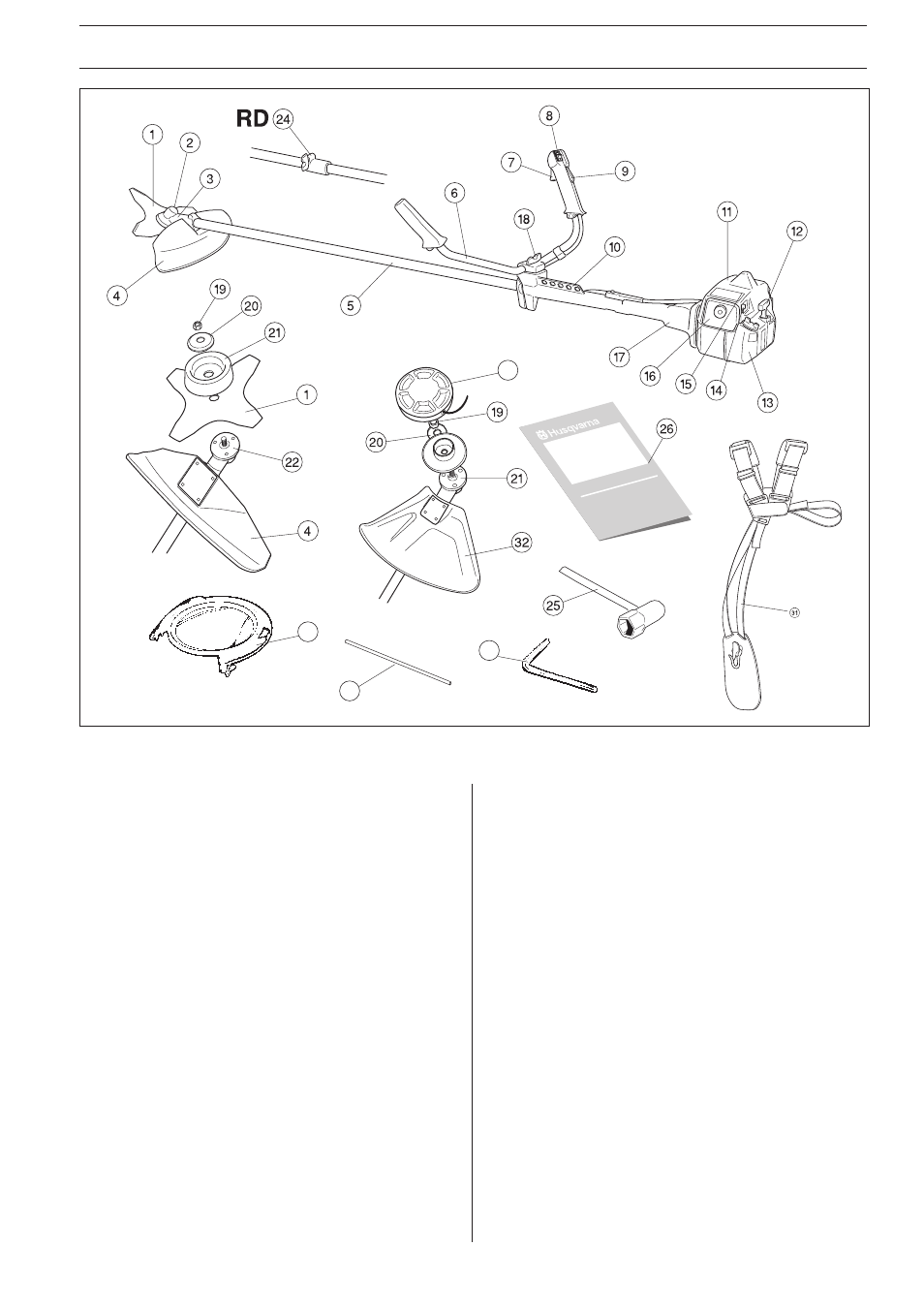

WHAT IS WHAT?

What is what on the brushcutter?

1. Blade

2. Grease filler cap

3. Angle gear

4. Blade guard

5. Shaft

6. Handlebars

7. Throttle

8. Stop switch

9. Throttle trigger lock

10. Suspension for clearing saw

11. Cylinder cover

12. Starter handle

13. Fuel tank

14. Choke

15. Air purge

16. Air filter cover

17. Clutch cover

18. Handlebar adjustment

19. Locking nut

20. Support flange

21. Support cup

22. Drive disc

23. Trimmer head

24. Shaft coupling

25. Socket spanner

26. Operator‘s Manual

27. Transport guard

28. Allen key

30. Locking pin

31. Harness

32. Spray guard
