SECTION 2: SPECIFICATIONS

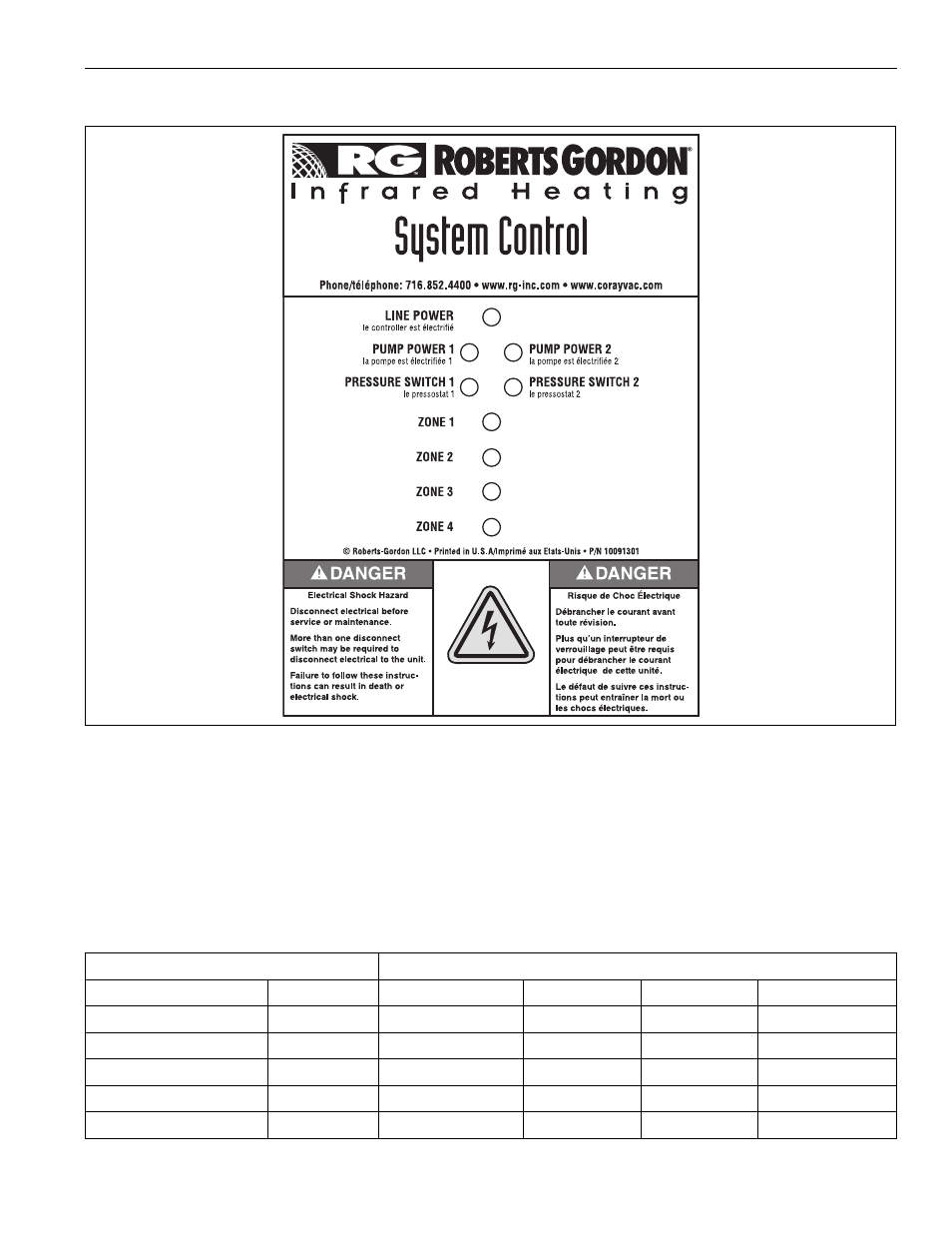

FIGURE 1: Panel Layout
2.1 Material Specifications
Enclosure Material: Metal
Weight: 6.8 lbs
Dimensions: 10.2" x 11.4" x 2.8"
(25.4 x 29.0 x 7.1 cm)
Protection: Rating IP20
2.2 Electrical Specifications
Supply: 120 V, 60 Hz, 1 Ø, 20 A
Zone Relay: Single pole 20 A, 120 Vac
(resistive)
Pump Relay: Single pole 20 A, 120 Vac
(resistive) 1 HP motor rated.
Thermostats: Low voltage 24 Vac
2.3 Pump Specifications
Full Load Current
Pump Model
HP
120 V 1 Ø
208/230 V 1 Ø
208/230 V 3 Ø
460 V 3 Ø
EP-100
1/3
4.8 A
N/A / 2.4 A
-
-
EP-201
3/4
6.6 A
N/A / 3.3 A
-
-
EP-203
3/4
-
-
2.4 A / 2.2 A
1.1 A
EP-301
2
23 A
12.8 A / 11.9 A
-
-
EP-303
2
-
-
5.5 A / 5.2 A
2.6 A
