Rockford Fosgate 3X - Manual (Page 20)

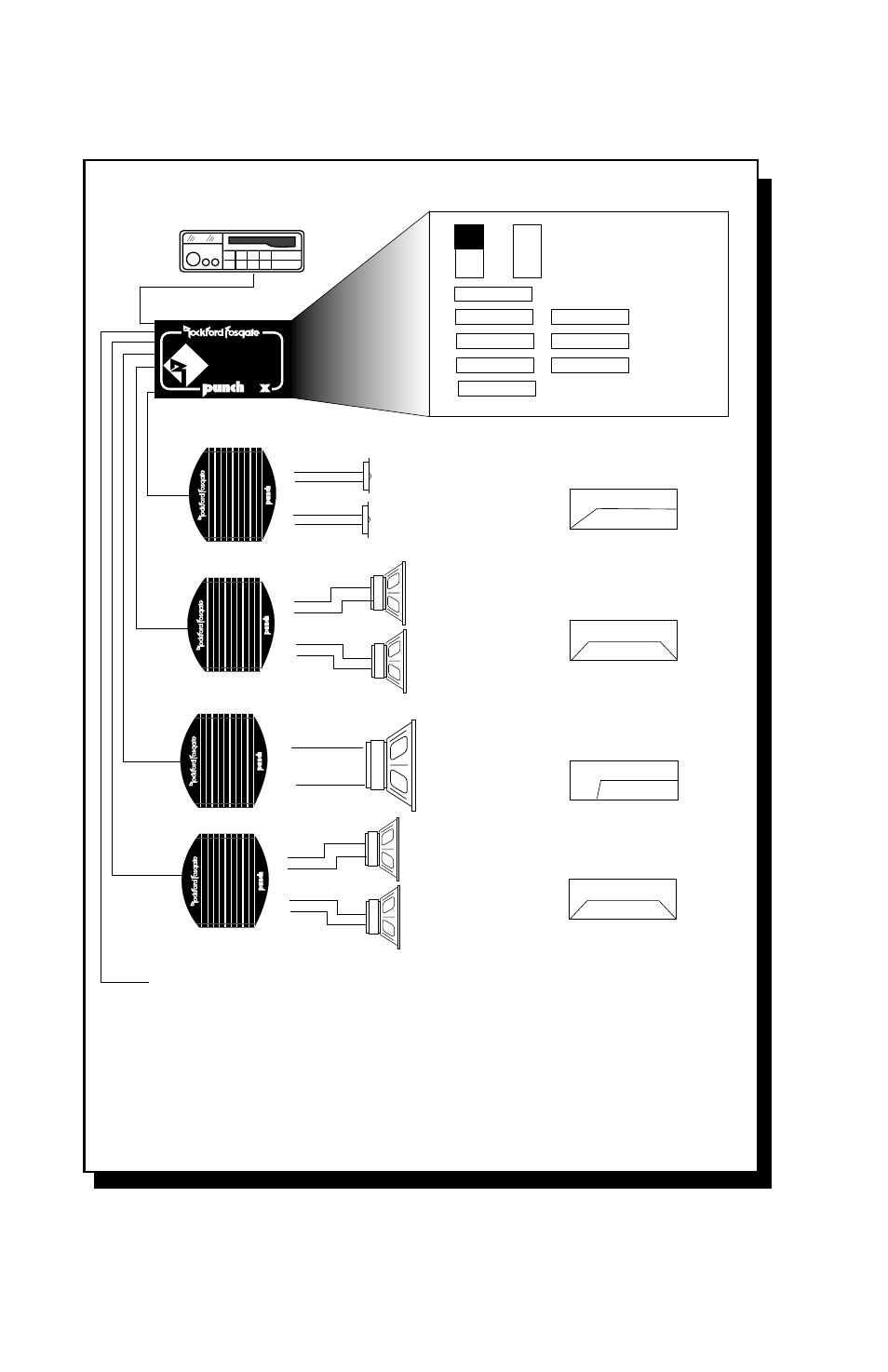

5X – 4-Way System
Tweeter
2-Channel Amplifier
Source Unit
5x Crossover
–
+
–
+
Tweeter
Low-Pass
@ 24dB/octave slope
High-Pass
@ 12dB/octave slope
Bandpass
Both rolloffs @ 12dB/octave slope
Not Used
Low-Pass
Low-Pass
Low-Pass
High-Pass
High-Pass
Low-Pass
High-Pass
®
®
2-Channel Amplifier
–
+
–
+
®
®
Midrange
Midrange
Bandpass
Both rolloffs @ 12dB/octave slope
Subwoofer
Not Used**
–
+
2-Channel Amplifier
–
+
–
+
®
®
Mid Bass
Mid Bass
2-Channel Amplifier
–
+
–
+
®
®
0
°
180
°
**
2
4
5 ®
®
FIGURE 8
*2 or 4 Channel can be selected if user desires fader capability.
** Try Phase Switch for summed output and set to position that sounds best.
– 17 –
