Roper FGP305K - Manual

30" Freestanding Gas Range

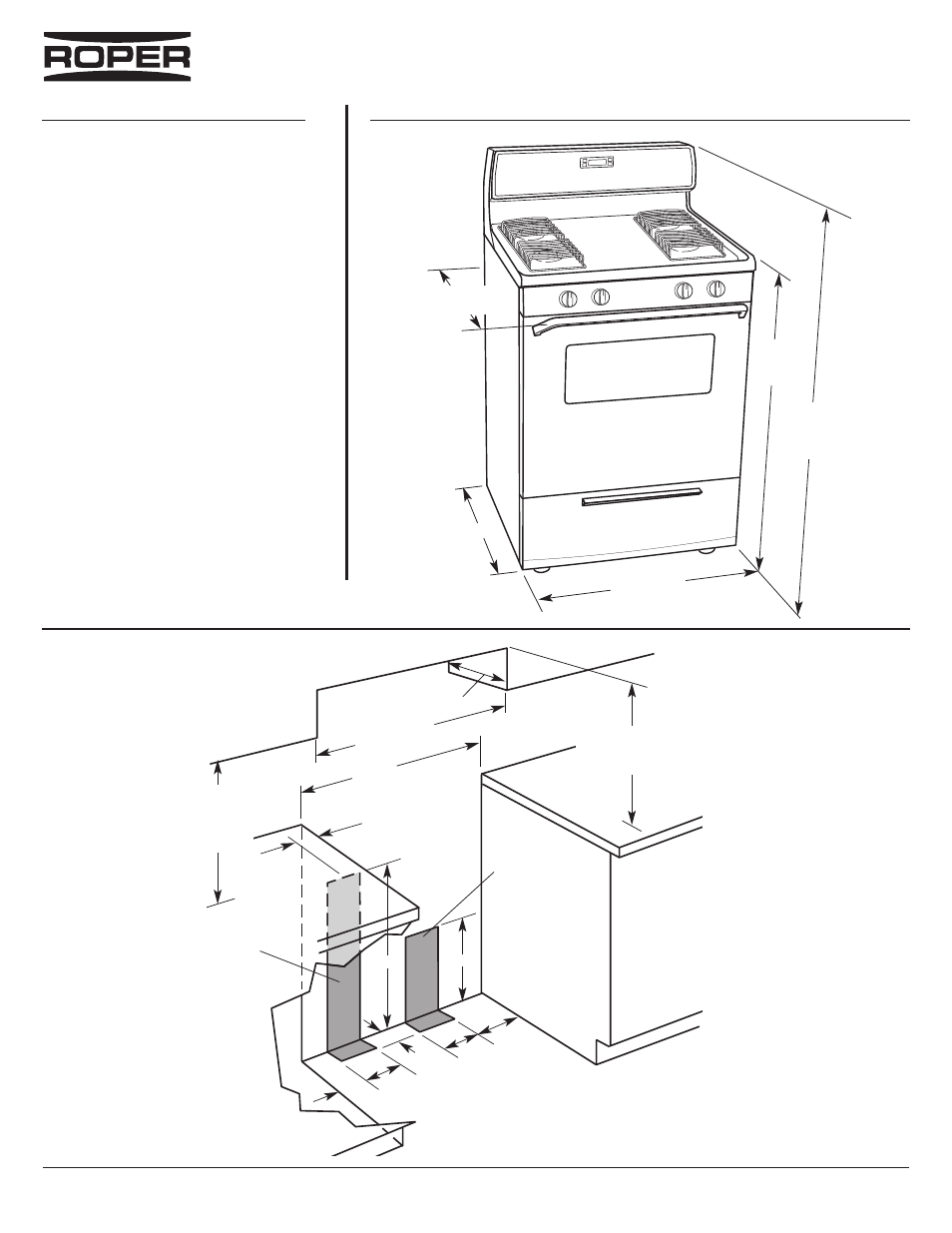

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS
CABINET OPENING DIMENSIONS
FGP305K
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Gas supply: Use 3/4" rigid pipe gas supply line
to the range location. A smaller size pipe on long
runs may result in insufficient gas supply. With
L.P. gas, piping or tubing size can be 1/2"
minimum. If local codes permit, it is
recommended that new flexible metal tubing,
design-certified by AGA or CSA, 1/2-inch or
3/4-inch I.D., be used for connecting the range to
the rigid gas supply line. A 1/2" male pipe thread is
needed for connection to pressure regulator
female pipe threads. An individual manual shutoff
valve must be located in the same room, but
external to the range.
Electrical: A 120-volt, 60-Hz, AC-only,
10-ampere, electrical supply fused on both sides
of the line. A separate circuit is recommended. A
time-delay fuse or circuit breaker is recommended.
Ref. 98014964
02-25-04
*** Note: 24" min. when bottom of wood or metal cabinet is
protected by not less than 1/4" flame retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015"stainless steel,
0.024" aluminum or 0.020" copper.
30" min. clearance between the top of the cooking platform and
the bottom of an unprotected wood or metal cabinet.
Contact a qualified floor covering
installer to check that the floor
covering can withstand at least
200°F.
Use an insulated pad or 1/4"
plywood under range if installing
range over carpeting.
For minimum
clearance to top of
cooktop, see Note.***
Do Not seal the range to
the side cabinets.
If cabinet depth is greater
than 24", oven frame
must extend beyond
cabinet fronts by 1/2"
min.
18" min.
clearance
upper
cabinet to
countertop
13" max. upper
cabinet depth
30-1/8"
opening
width
30" min. cabinet
opening width
8"
2"
5"
10" 24"
5"
3"
2" min. countertop
space to side wall or
other combustible
material
This shaded area
recommended
for installation
of gas pipe.
This shaded area
recommended for
electrical outlet.
29-7/8" width
46-1/4"
overall height for
tall backguard
models
24-1/4"
36"
cooktop
height
26-3/4" depth
with handle
®
