Getting Started

Content of Box

• one main unit (with 2 main speakers);
• one remote control;
• one AM loop antennas;
• one mp3 Player;
• one pair of earphones
• one user manual;
• one safety leaflet;
• Owner registration Card.

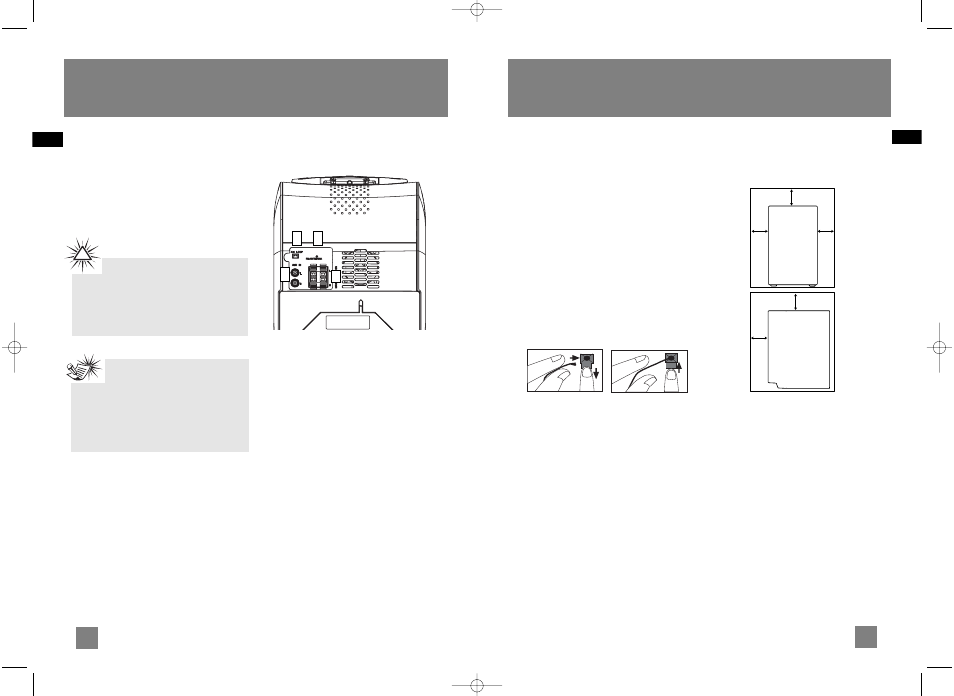

Connections of Antennas and
Speakers

1. AM Loop antenna Jacks.
2. AUX IN.
3. FM Pigtail Antenna.
4. Main Speaker Jacks.

Note:

Make sure the tracks are encoded in mp3 or

Windows Media formats and supported

bitrates. Bitrates supported by the player:
mp3 – 32 to 320kbps
wma – 48 to 160kbps

Warning:

Use of this product is for your personal use

only. Unauthorized recording or duplication

of copyrighted material may infringe upon the

rights of third parties and may be contrary to

Using the FM and AM Antennas

Before you use your audio system, you’ll want to
make sure both the FM and AM antennas are
positioned properly. Uncoil the FM antenna at
the back of the unit, making sure it is fully
extended (you may even want to tape it to the
wall behind the unit if possible. The higher the
better.) You’ll also need to connect the AM
antenna loop to the back of the unit if you listen
to AM stations. Rotate the AM loop antenna for
better reception.

Connecting the Speakers

Each speaker has a black (negative) and a red
(positive) jack. When connecting the speakers,
match the red wires to the red jacks and the
black wires to the black jacks.

Installation

To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:

Release tab to lock wire in
the terminal.

NOTE: Make sure the insulation is completely removed from the

ends of the speaker wires at all connection points.

Speaker Wire Connection

Push Speaker terminal tab
down to insert wire.

4”

Front View

Side View

2“

4”
