Page 14
14
OPERATION

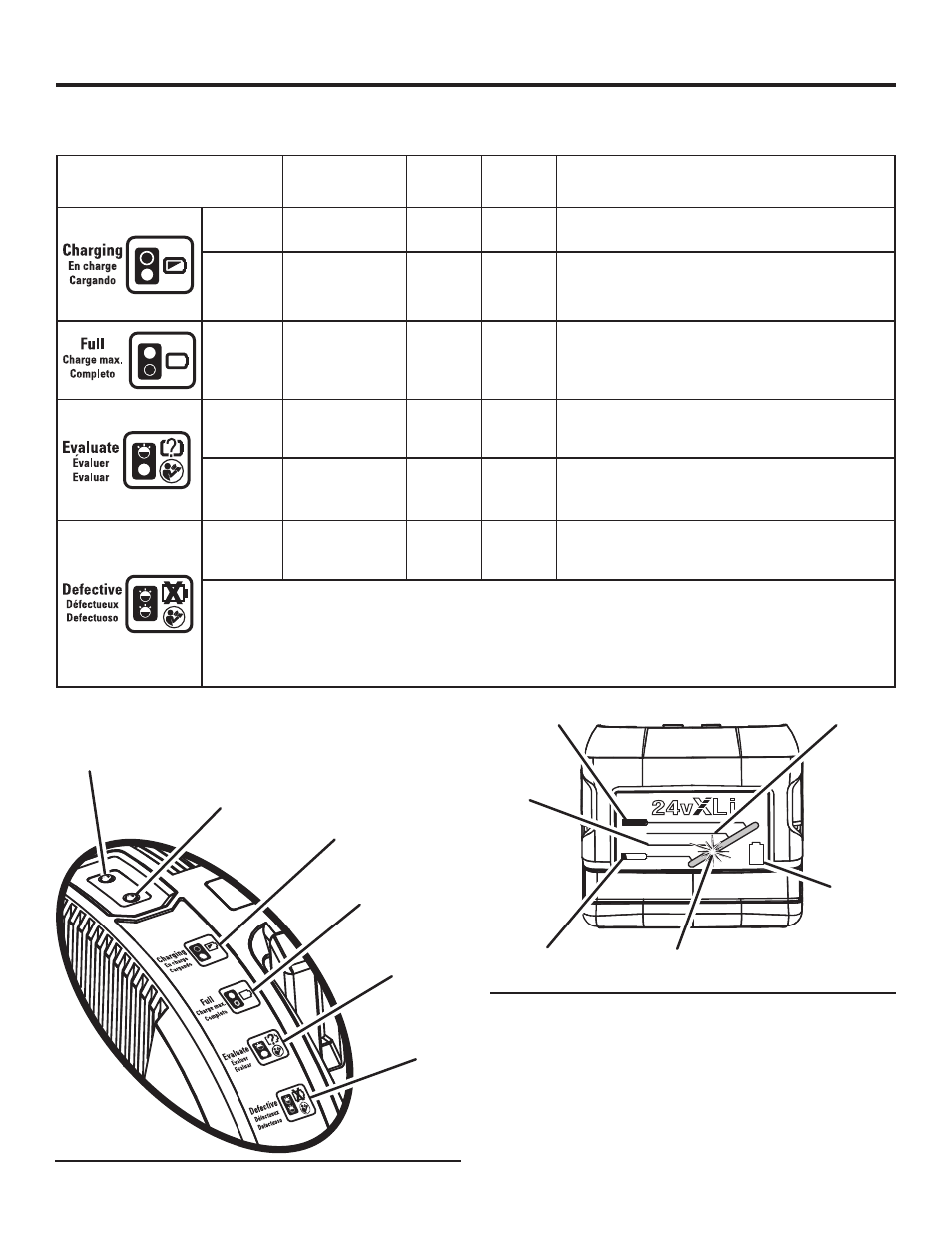

Fig. 5
EVALUATE
INDICATOR
CHARGING
INDICATOR
FULL
INDICATOR
DEFECTIVE
INDICATOR
GREEN LED
RED LED
24v
XLi
?
Fig. 6
CHARGE LEVEL INDICATOR
See Figure 6.
The charge level indicator shows that the battery is charged
at 1/4, 1/2, 3/4, or full capacity. To display the amount of
charge left in the battery, press and hold the charge level
indicator button.
NOTE: When the battery pack contains less than 10%
charge, the 1/4 charge level indicator will flash.
1/4
CAPACITY
FULL
CAPACITY
CHARGE
LEVEL
INDICATOR
BUTTON
CHARGE
LEVEL INDICATOR
1/2
CAPACITY
3/4
CAPACITY
LED FUNCTION OF CHARGER
See Figure 5.
LED
INDICATOR
BATTERY
PACK
RED
LED
GREEN
LED
ACTION
Charging
Fast charging
ON
OFF
Charges in 1 hour
Charging
Deeply
Discharged
ON
OFF
Charger pre-charges battery until normal voltage
is reached, then begins fast charge mode. May
take longer than 1 hour to fully charge.
Full
Maintenance
charging
OFF
ON
Fast charging is complete
Charger maintains charge mode
Evaluate
Hot battery
pack
Flashing OFF
When battery pack reaches cooled temperature,
charger begins fast charge mode
Evaluate
Cold battery
pack
Flashing OFF
When battery pack reaches warmed temperature,
charger begins fast charge mode
Defective Defective
Flashing Flashing Battery pack or charger is defective
• If defective, try to repeat the conditions a second time by removing and reinstalling the battery
pack. If the LED status repeats a second time, try charging a different battery.
• If a different battery charges normally, dispose of the defective pack (see Maintenance section).
• If a different battery also indicates “Defective,” the charger may be defective.
