PUNCH P3 Shallow-DVC 10" 12"
P3SD210 / P3SD410 P3SD212 / P3SD412
Nominal Impedance (ohms) 2 x 2 / 2 x 4 2 x 2 / 2 x 4
Frequency Response (Hz) 45-250 43-250
Voice Coil Diameter - inch 2.5 (4-Layer) 2.5 (4-Layer)
(cm) (6.35) (6.35)
Displacement - cu. ft. 0.061 0.071
(Liter) (1.73) (2.01)
Fs - Free Air Resonance (Hz) 45 43
Qts 0.61 / 0.76 0.70
Vas - cu. ft. 0.37 0.74
(Liter) (10.4) (21.0)
Xmax - inch 0.528 0.528
(cm) (1.34) (1.34)
SPL (dB @ 1w/1m) 83 86
Power Handling-Watts (RMS) 300 400
(Peak) 600 800
S PECIFICATIONS

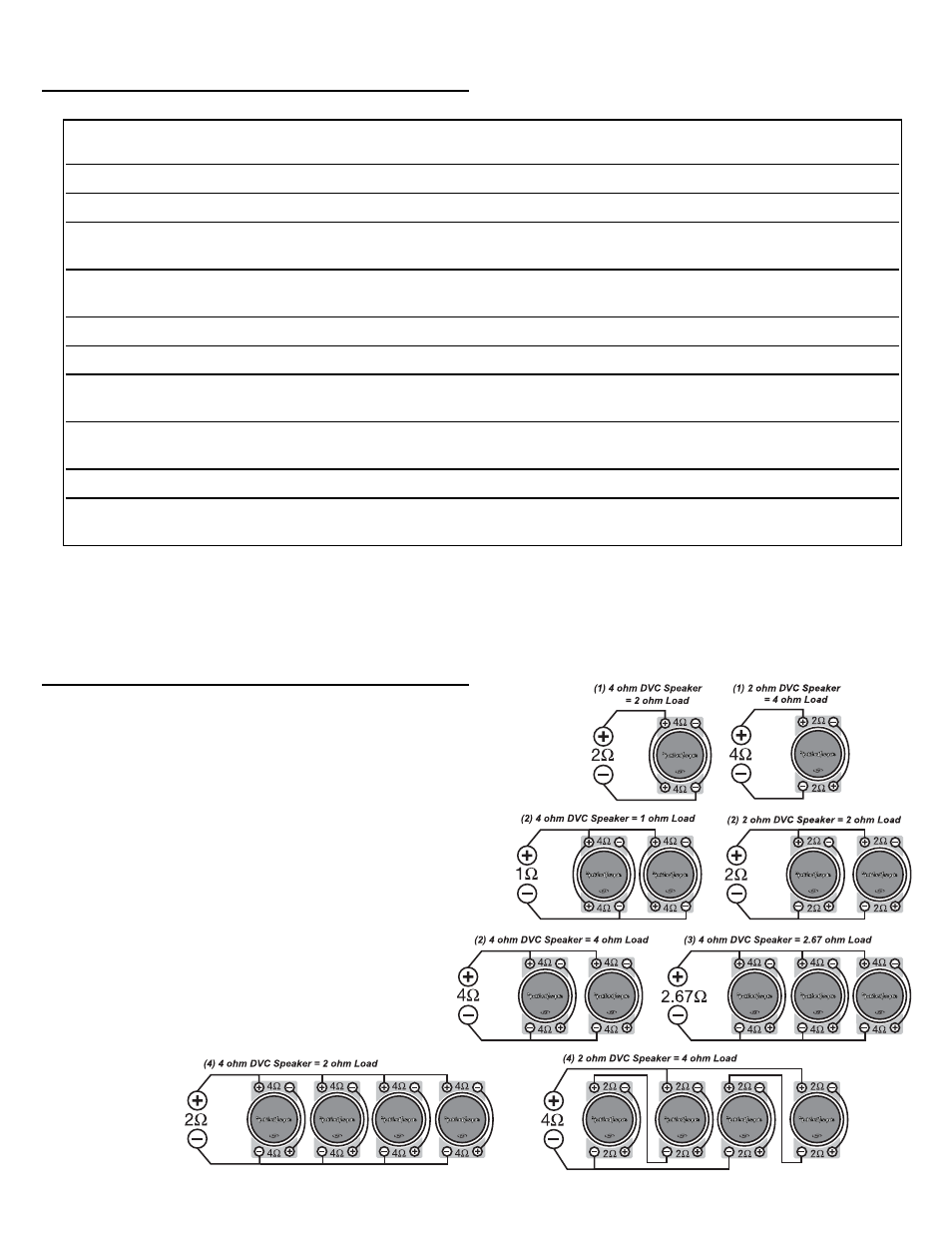

W IRING C ONFIGURATIONS
By varying the wiring configuration of your speakers you can create an
impedance load to match your system.Altering the wiring configurations
gives a range of options for impedance loads. Series, Parallel, or
Series-Parallel wiring configurations are different techniques for wiring
speakers that provide different loads. Series configuration is a string
method where speakers are wired end to end. Parallel configuration
uses two or more speakers wired across common terminals.
Series-Parallel configuration combines both techniques. Choose the
wiring diagram that corresponds to the number of woofers and the
impedance of your amplifier.
SUBWOOFER CROSSOVERS
There are two operational types of crossovers, passive and active.
Passive crossovers (coils or inductors) are placed on the speaker
leads between the amplifier and speaker.An active crossover is an
electronic filter that separates the audio signal fed to different
amplifiers. For optimum subwoofer performance, we recommend
using an active 80-100Hz low-pass crossover at 12dB/octave.
