Reebok Fitness RT445 RBEX49020 User Manual
Page 5

5

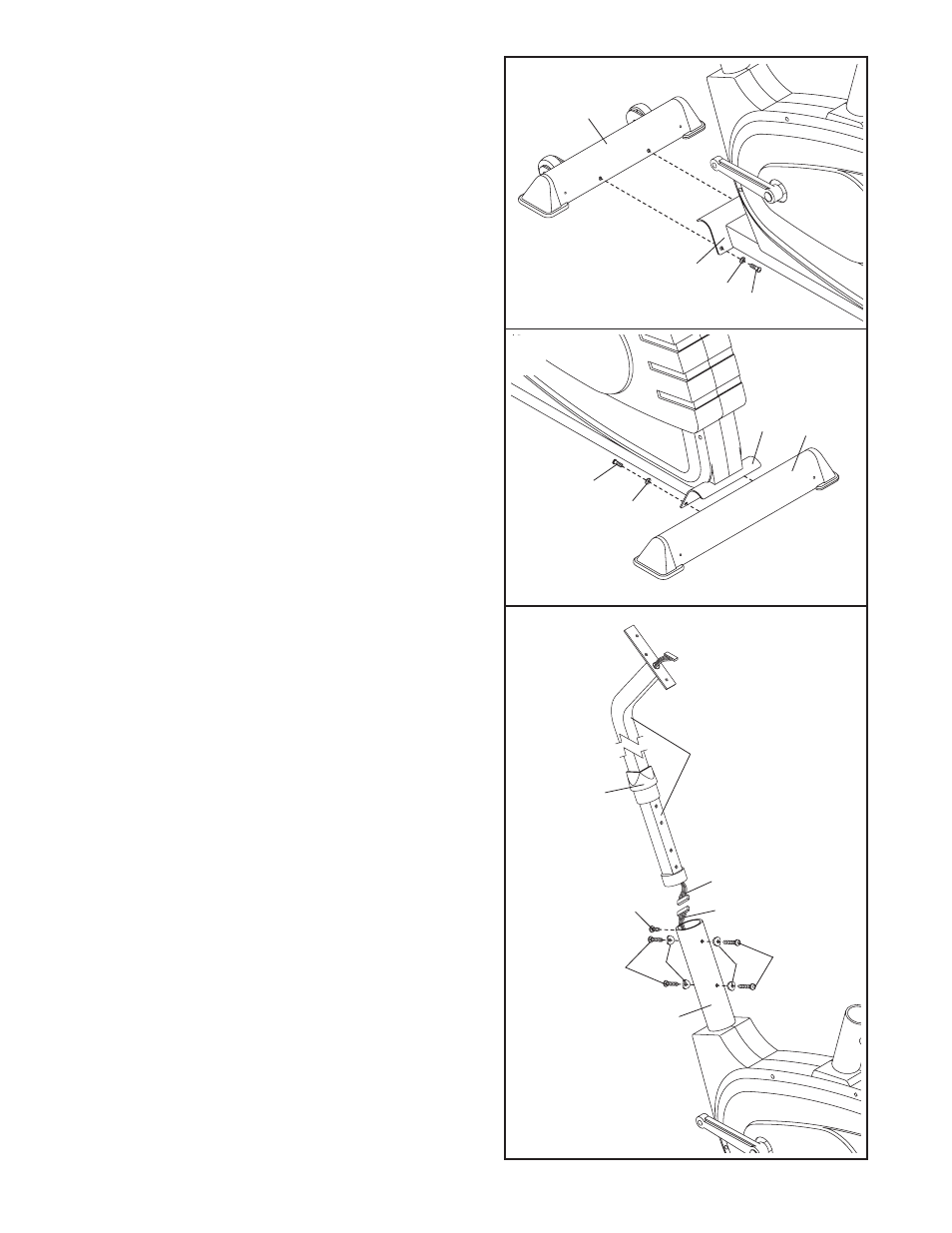

1. Attach the Front Stabilizer (2) to the Frame (1) with
two M8 x 25mm Button Screws (19) and two M8
Split Washers (28).
2. Attach the Rear Stabilizer (3) to the Frame (1) with
two M8 x 25mm Button Screws (19) and two M8
Split Washers (28).
3. While another person holds the Handlebar Post (6)
near the Frame (1), connect the Upper Wire
Harness (16) to the Lower Wire Harness (24). Next,
pull the excess Upper Wire Harness out of the top of
the Handlebar Post, and insert the Handlebar Post
into the Frame. Be careful not to pinch the Wire
Harnesses.
Slide the Round Collar (13) down the Handlebar
Post (6) and press it into the Frame (1). Attach the
Round Collar with an M6 x 8mm Screw (26).
Note: There are two sets of holes in the
Handlebar Post (6) so that it can be attached at
either of two heights. Attach the Handlebar Post to
the Frame (1) at the desired height with four M8 x
25mm Button Screws (19) and four M8 Split
Washers (28).
1
19
28
3
3
13
26
19
28
28
1
19
16
24
6
28
19
1
2
1
2
