L32WD14
32"
Diagonal
LCD Widescreen HDTV
Specifications
TTE Technology, Inc.
Indianapolis, IN USA 46290
BRAND RCA SCENIUM
TECHNOLOGY
Tuner
ATSC/NTSC/QAM
Analog Video Formats (NTSC/480i) AV / S-Vid / Component
Video Formats (480p, 720p, 1080i) Component, HDMI
SDTV / EDTV / HDTV Capability HDTV
Category LCD
Display Type
TFT LCD
Screen Size 32"
Display Aspect Ratio 16:9
Display Resolution 1366x768
Brightness (cd/m2) 550
Contrast Ratio 1000:1
Viewing Angle Horizontal/Vertical 176/176
Response Time 8 ms
Adjustable Color Temperature Yes
Adjustable Picture Control bright, cont, sharp, color, tint
Format Control 4:3, 16:9 Zoom, Cinerama, 16:9 Widescreen
Brightness Adjust Yes
Comb Filter 3D/YC
Reverse 3:2 Pull Down (Film Mode) Yes
Noise Reduction Yes
SOUND
Audio Power (Watts) Front Speakers
8 W/CH x 2
Treble, Bass, Balance, Volume, Mute Control Yes
Broadcast Stereo MTS Stereo
Second Audio Program (SAP) Yes
Headphone Adjustments Yes
Premium Sound BBE + Philips Virtual *
CONVENIENCE
Front Panel Controls
Power, CH +/–, Vol +/–, Menu, Standby
A/V PIP Yes
Auto Channel Search Yes
Multilingual On–Screen–Display English, Spanish, French
Channel Labelling Yes
Closed Caption Capability Yes
Parental control (V–Chip) USA & Canada
Picture Reset Yes
Picture Memory Presets Yes
Clock Yes
Sleep Timer Yes
Alarm (wake up timer) Yes
PC Compatibility (via 15 pin d-sub) Yes
CONNECTIONS — INPUTS
RF Input (ATSC/NTSC)
1
Composite Video Input 1
Audio input for Composite Video 1 L/R
VGA (PC Input) 1
Audio input for VGA 1 - 3.5mm PC Audio
Component Video Input (YCrCb/YPrPb) 2
Audio input for Component Video 2 L/R
DVI – HDCP or HDMI 1 HDMI, 1 HDMI/DVI **
Audio input for DVI – HDCP or HDMI 1 L/R for DVI
CONNECTIONS — OUTPUTS
Video/Monitor Output
1
Audio Output for Monitor 1 L/R
Digital Audio Output 1 SPDIF
SIDE PANEL INPUTS/OUTPUTS
Composite Video Input
1
S-Video Input 1
Audio Input for Composite 1 L/R
Headphone Jack Output Yes
USB Input 1
REMOTE CONTROL
Model Number
R301C1
Type 3-Device Universal Remote
ACCESSORIES
User’s Guide
English, French
Power Cord Yes
GENERAL
Finish
Black w/Silver Strip
VESA Wall Mount Compatible Yes (200 x 400, M6)
Detachable Base Yes
Power Supply Built-in
Packaging Size (HxWxD) inches 14.7 x 42.3 x 28.7
Weight (lbs) (Product/Packaging) 43.4 / 54.4
HDMI
DIGITAL
ANTENNA
VGA Pr/Cr Pb/Cb
Pr/Cr Pb/Cb
Y
COMPONENT IN 1

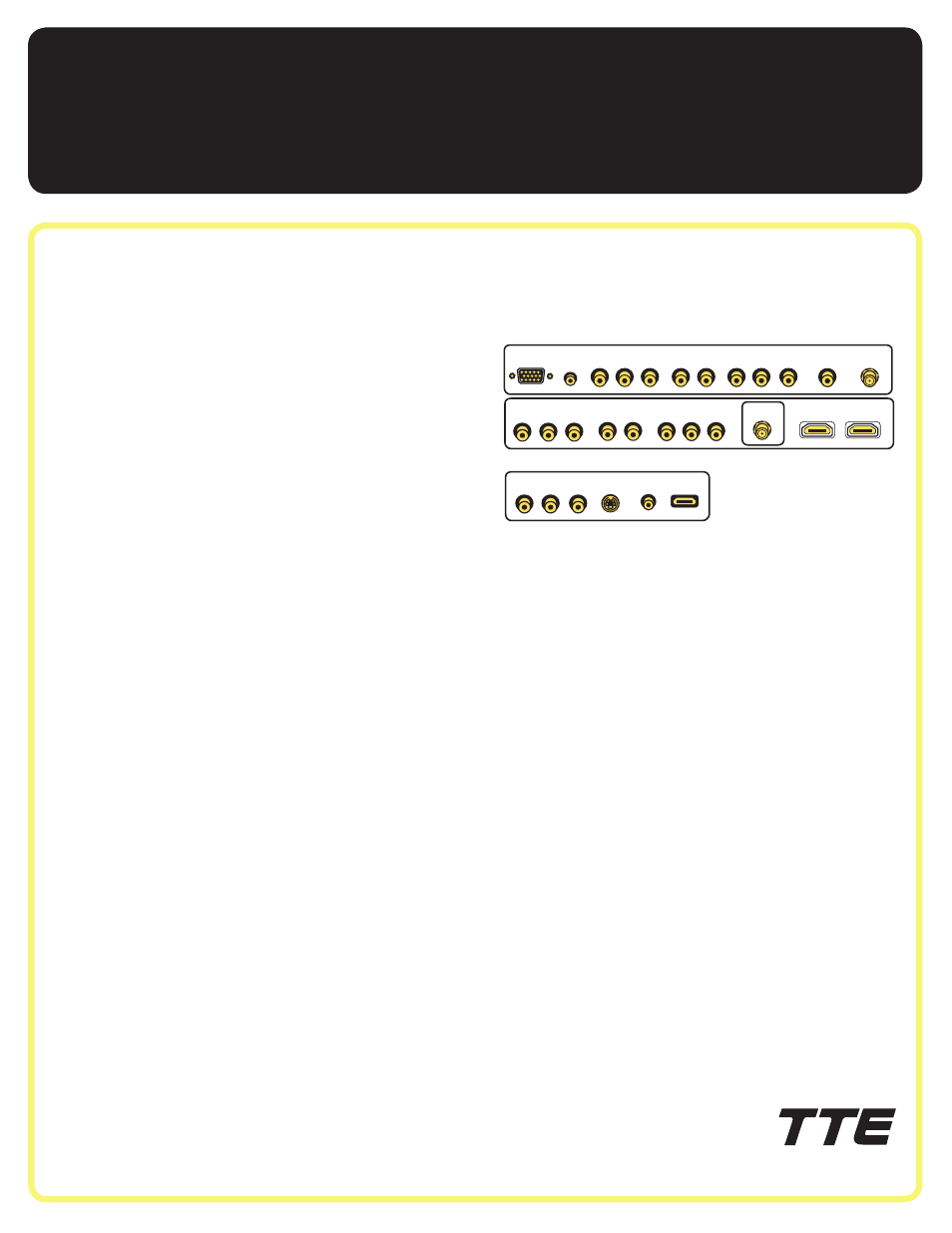

REAR PANEL
SIDE PANEL
VGA VGA
AUDIO
Y
COMPONENT IN 2
L R
AUDIO
IN
L R
AUDIO 2
IN
1 2
AUDIO 1
IN ANTENNA SPDIF OUT
HDMI/DVI
USB Headphone S-VIDEO VIDEO
IN
L R
R L
AUDIO OUT VIDEO
OUT
R L
AUDIO IN 1 VIDEO 1
IN
L26W14/L32W14/L37W14
* BBE® DIGITAL – Manufactured under license from BBE Sound, Inc.
** HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
Product features, definitions and physical specifications are subject to change without notice.
RCA and associated marks are trademarks of THOMSON S.A. used under license to TTE CORPORATION.
