Wireless Router RNX-EasyN400 User Manual
88

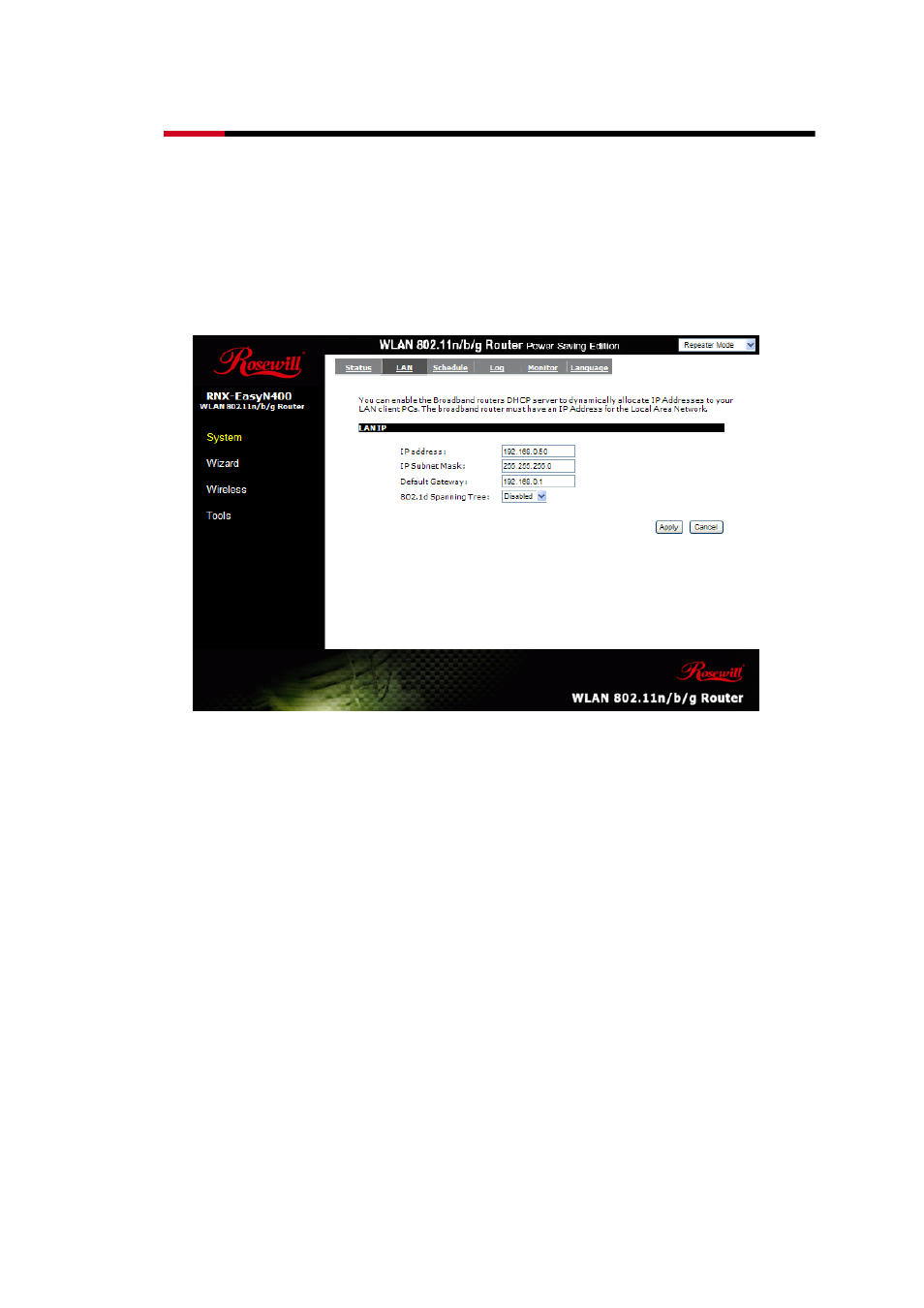

The LAN Tabs reveals LAN settings which can be altered at will. If you are an entry
level user, try accessing a website from your browser. If you can access website without a
glitch, just do not change any of these settings.
Click at the bottom of this screen to save the changed configurations.
IP address: This is RNX-EasyN400’s LAN IP address (Your LAN clients default
gateway IP address). It can be changed based on your own choice.
IP Subnet Mask: Specify a Subnet Mask for your LAN segment.
Default Gateway: This is the IP address of your host router.
802.1d Spanning Tree: This is disabled by default. If 802.1d Spanning Tree function is
enabled, this router will use the spanning tree protocol to
prevent network loops.
4.1.3 Schedule
Add schedule, edit schedule options allow configuration of power savings services. Fill in
the schedule and select type of service. Click to implement the settings.
