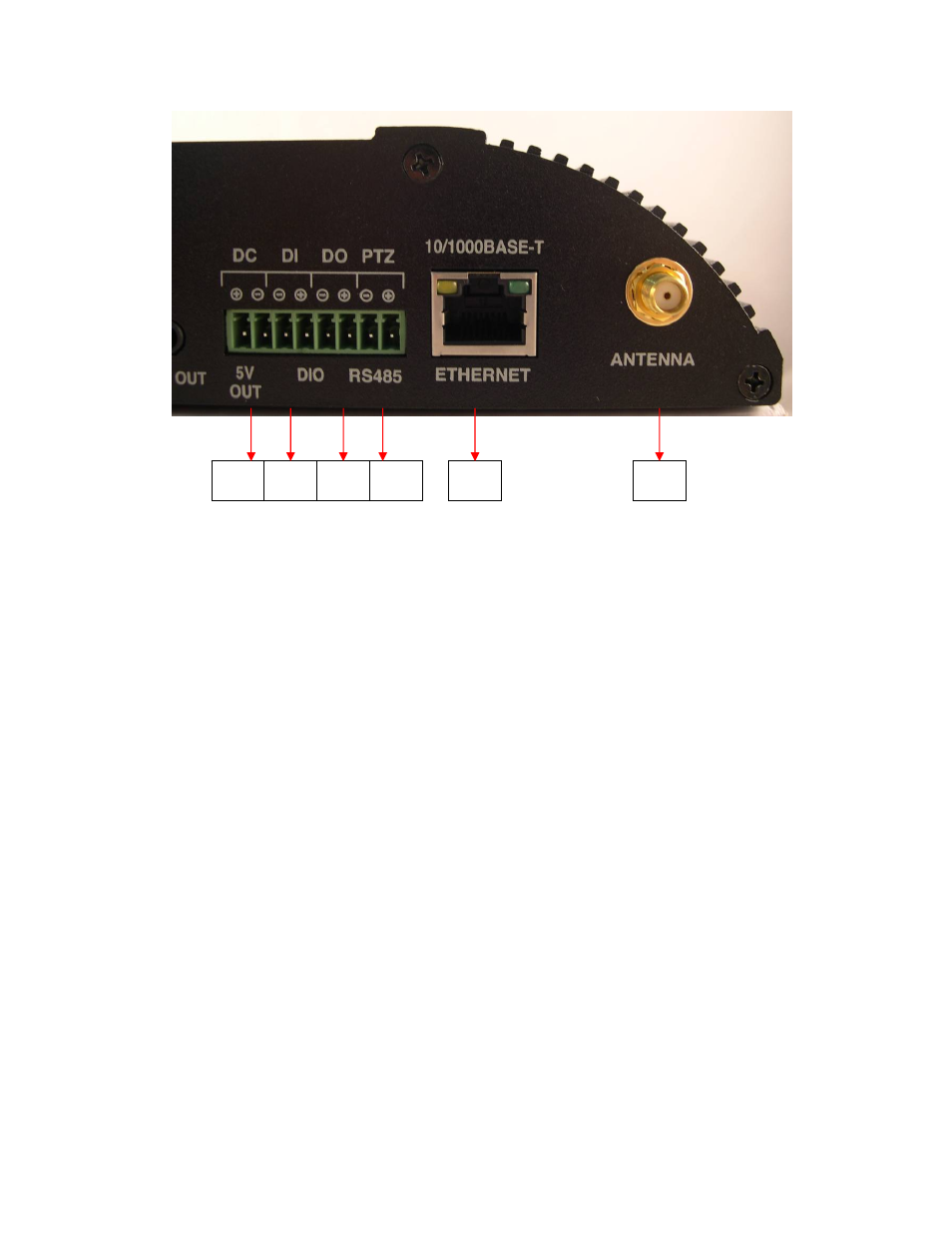

15: 5V DC output
16: Terminal block for digit input, if wireless PTZ is not built in this device. There
is no function, if wireless PTZ is built in this device.
17: Terminal block for digit output, if wireless PTZ is not built in this device.
There is no function, if wireless PTZ is built in this device.
18: Terminal block for RS-485, if wireless PTZ is not built in this device. There is
no function, if wireless PTZ is built in this device.
19: RJ-45 connector for Ethernet
20: SMA connector for 5.8 GHz antenna
15 16 17 18 19 20
