OWNER’S MANUAL —
Please read before using this equipment.
www.radioshack.com SM
21-1930
21-1930
AO0148AAA1
04A03
Printed in China
Thank you for purchasing the RadioShack
Dual-Bay FAST Charger for GMRS/FRS
2-Way Radios. This charger works with
these RadioShack GMRS/FRS radios:
21-1902, 21-1903, 21-1904, and 21-1905.
Your dual-bay fast charger enables you to
charge a pair of GMRS/FRS radios
simultaneously. Rechargeable AA/AAA,
Ni-Cd/Ni-MH batteries are fully charged in
about 2 hours (50–120 minutes).
FEATURES
Charging indicators — the LED indicates
the charging status.
• Blinking Green: Charging
• Green: Fully Charged
• Red: Stand-by
Automatic cut off — when batteries are
fully charged, the charger stops
automatically. A safety timer provides extra
protection against overcharging.
Over current protection — constant
current charge in all charging stages.
Auto current selection — automatically
changes the charging current according to
the capacity of the batteries resulting in
quick and efficient charging.
OPERATION
1. Insert the supplied adapter into the
12.8V power jack on the back of the
charger. Then, plug the other end of the
adapter into a standard AC outlet.
Ô
2. Select one pair of the supplied adapters
that corresponds with the FRS radio
that you want to charge (21-1902/1903/
1904/1905). Insert the adapter into the
charging bay first, then insert the
corresponding FRS radio into the
charging bay. The green LED blinks to
indicate that the batteries are charging.
Ô
You can use this charger to charge Ni-
Cd and Ni-MH batteries of different
capacities. The charging time depends
on battery capacity. After the batteries
are fully charged, the LED stops
blinking and lights a steady green. The
following chart lists estimated charge
times.
Ô
CARE
Keep the charger dry; if it gets wet, wipe it
dry immediately. Use and store the charger
only in normal temperature environments.
Handle the charger carefully; do not drop it.
Keep the charger away from dust and dirt,
and wipe it with a damp cloth occasionally to
keep it looking new.
SPECIFICATIONS
Charging current ............................ 1200mA Max
Charging time .......................... 50 – 120 minutes
(AA/AAA Ni-Cd/Ni-MH 600 – 1800mAH)
Safety timer ................................ 120 ± 2 minutes
Dimensions (HWD) ......... 7 7 / 8
Ч 3 3 / 4
Ч 2 3 / 8 inches
(200 Ч 95 Ч 60 mm)
Weight .......................................................12.7 oz
(360g)
Specifications are typical; individual units might
vary. Specifications are subjected to change and
improvement without notice.

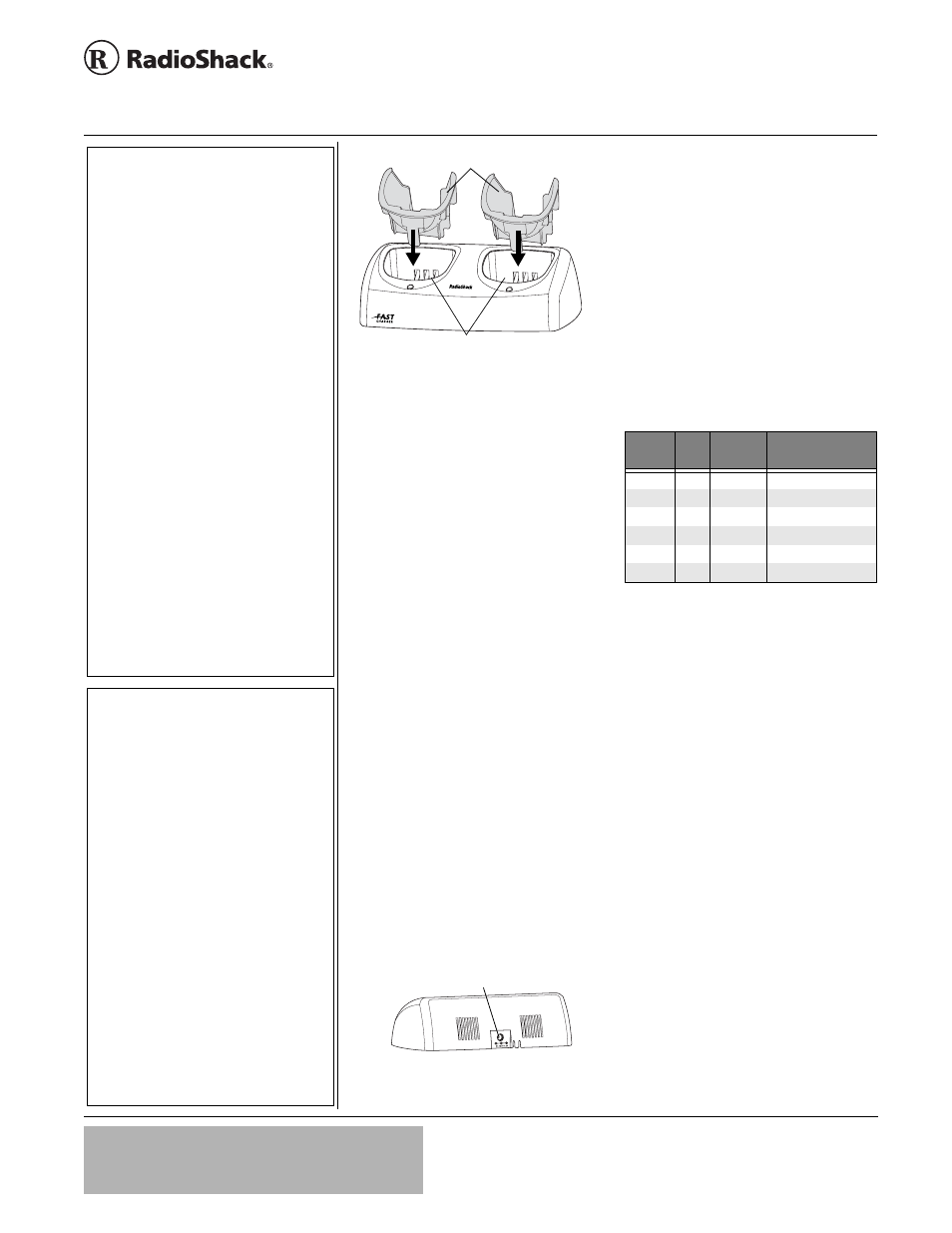

Charging Bays
Adapters Ô
NOTES
Ô
• Fully discharge Ni-Cd batteries before
charging. Repeated partial discharging and
recharging may shorten battery life. This
does not apply to Ni-MH batteries.
• It is normal for batteries to become warm
while charging.
• If the LED changes to RED after several
seconds, the radio may not be inserted
firmly.
• For batteries with a capacity of less than
600mA, the charging time may be less than
50 minutes and the batteries can be warmer
(than batteries with a capacity greater than
600mA) during charging.
• Use only the supplied adapter. Use of other
adapters may damage your charger.
• If dead batteries, non-rechargeable
batteries, or batteries installed in the wrong
direction are detected, the LED changes to
red and stops charging. When charging two
radios, if one of the radios is turned on, both
radios enter the slow charging mode and
may not be fully charged after hours of
charging. For the fastest charge, turn both
radios off.
• Never attempt to charge any batteries other
than Ni-Cd or Ni-MH rechargeable batteries.
• Only charge batteries of the same type and
capacity. Do not mix new and old batteries or
batteries of different types or capacities.
• Charge batteries in a location that is
between 50°F and 86°F (10°C and 30°C). If
the location is too cold, the batteries cannot
be fully charged. If the location is too warm,
the batteries may be damaged permanently
and lose their ability to charge.
DC 12.8V Jack
Back View
Limited Ninety-Day Warranty
This product is warranted by RadioShack against manufacturing defects in
material and workmanship under normal use for ninety (90) days from the
date of purchase from RadioShack company-owned stores and authorized
RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN,
RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED
WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FIT-
NESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
THE DURATION OF THE WRITTEN LIMITED WARRANTIES CON-
TAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL
HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY
OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS
OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PER-
FORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH
OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAM-
AGES RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA,
PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, IN-
CIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts
or the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you.
In the event of a product defect during the warranty period, take the product
and the RadioShack sales receipt as proof of purchase date to any Ra-
dioShack store. RadioShack will, at its option, unless otherwise provided by
law: (a) correct the defect by product repair without charge for parts and la-
bor; (b) replace the product with one of the same or similar design; or (c) re-
fund the purchase price. All replaced parts and products, and products on
which a refund is made, become the property of RadioShack. New or re-
conditioned parts and products may be used in the performance of war-
ranty service. Repaired or replaced parts and products are warranted for
the remainder of the original warranty period. You will be charged for repair
or replacement of the product made after the expiration of the warranty pe-
riod.
This warranty does not cover: (a) damage or failure caused by or attribut-
able to acts of God, abuse, accident, misuse, improper or abnormal usage,
failure to follow instructions, improper installation or maintenance, alter-
ation, lightning or other incidence of excess voltage or current; (b) any re-
pairs other than those provided by a RadioShack Authorized Service
Facility; (c) consumables such as fuses or batteries; (d) cosmetic damage;
(e) transportation, shipping or insurance costs; or (f) costs of product re-
moval, installation, set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth,
TX 76102
12/99
Battery
Type
Size Capacity Charging Time
Ni-MH AAA 600mA 1 hour, 25 minutes
Ni-MH AAA 700mA 1 hour, 40 minutes
Ni-Cd AA 1000mA 1 hour, 25 minutes
Ni-MH AA 1300mA 1 hour 45 minutes
Ni-MH AA 1500mA 2 hours
Ni-MH AA 1800mA 2 hours, 30 minutes
Dual-Bay FAST Charger for GMRS/FRS
2-Way Radios
! IMPORTANT !
If an icon appears at the end of a paragraph, go to the box on that
page with the corresponding icon for pertinent information.
Ô
— Note
