10
3.2.2 LCD Display
The following describes the functional characters on the Ray48's LCD.
1 SCAN: Will flash by itself when All-Scan mode is to be initiated or will flash in
unison with "MEM" when Memory Scan mode is to be initiated.
2 1 W (High/Low Power): Will be displayed when the transmitter circuits are
providing 1 Watt of power to the antenna. When the transmitter is supplying 25 Watts
to the antenna, the "1 W" indication will be extinguished.
3 ALT (Weather Alert): Will blink when a Weather Alert Tone has been detected.
4 WX (Weather): Will be displayed when the channel selected to be monitored is a
weather channel.
5 MON (Monitor): Will be displayed when the MON/INT key is pressed. This
indicates the radio is in the MONITOR mode.
6 INT (International/USA): Will be displayed when International channels are
programmed for use. "INT" is not displayed when US channels are programmed for
use.
7 TX (Transmit): Will be displayed on the LCD when the Push-To-Talk (PTT) switch
is depressed indicating the transmitter circuits are providing a signal to the antenna.
8 MEM (Memory): Will be displayed when the SCAN key is pressed and held for two
seconds, or when the radio is programmed to the MEMORY SCAN mode.
9 LCD Segments: Will display channel number in use.

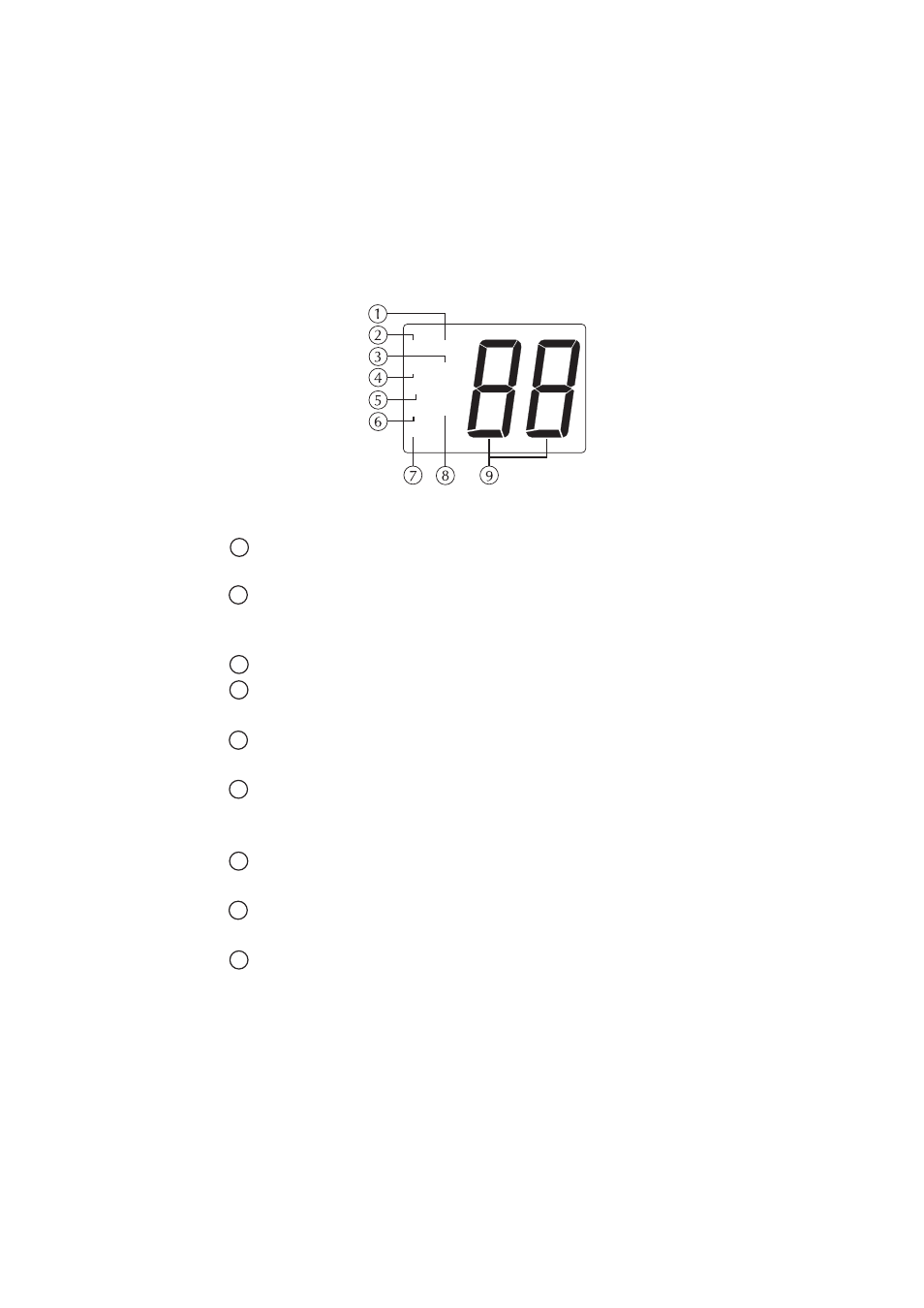

Fig.3-2 LCD DISPLAY
SCAN
ALT 1W
MON
WX
TX
INT MEM
