Radial Engineering Headbone Owner’s Manual 6
Throughout this manual, references are made to “guitar level
signals” and “speaker level signals”. The Headbone passes
both types and it is important to use the proper cables.
A guitar level signal requires a good quality shielded cable to
work well. You will find that using high quality guitar cables
with proper shielding will help reduce system noise and radio
interference.
Speaker level signals require good quality unshielded
speaker cables. We recommend using a minimum of 14 AWG
cables for speaker cable runs under 8 feet. Larger gauge
cables should be used for longer runs. Never use shielded
guitar cables for speaker connections. A Headbone cable kit
is available from Radial Engineering. Ask your dealer.

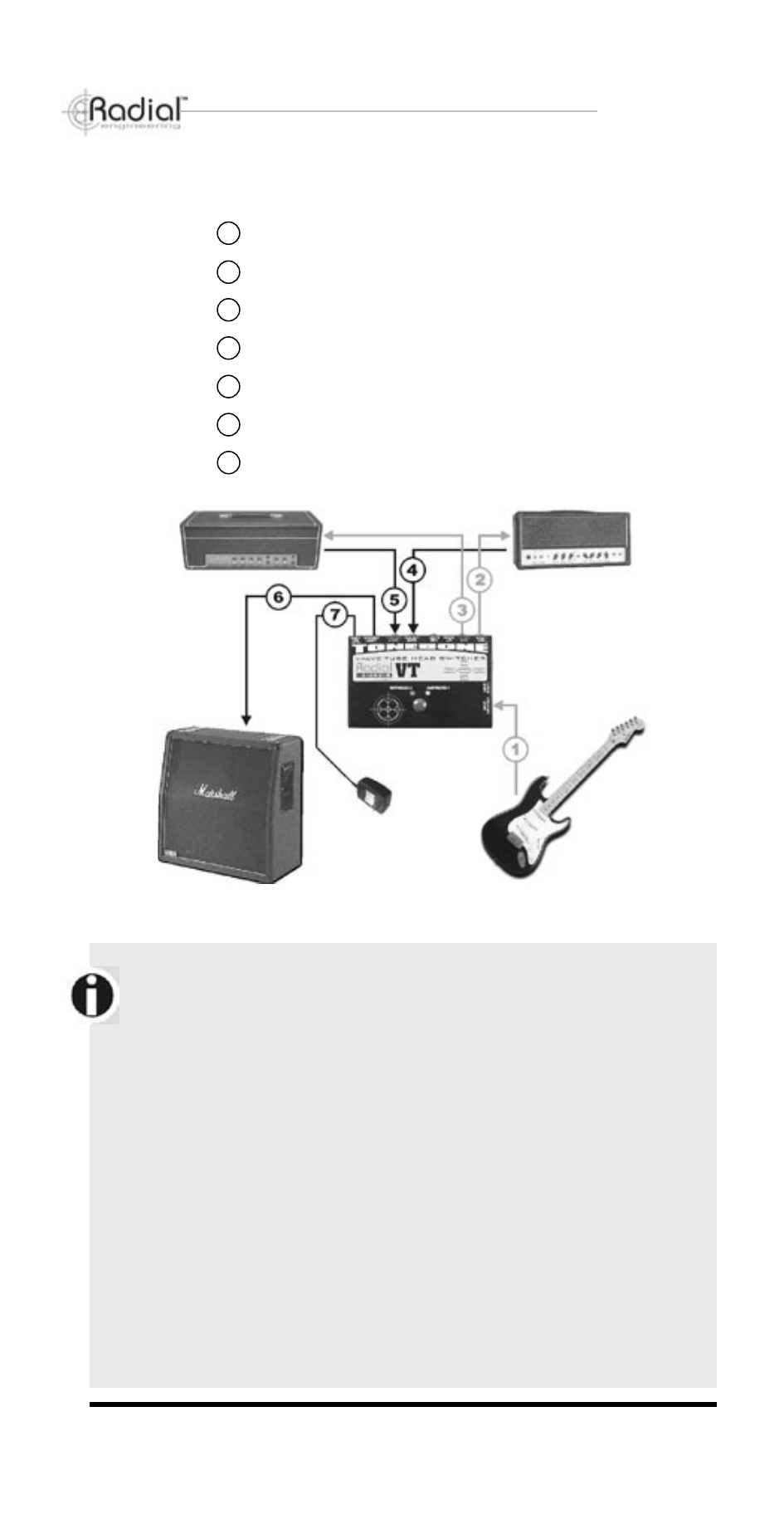

GETTING TO KNOW YOUR HEADBONE
Signal from guitar or pedalboard.
Guitar signal to amp head-1.
Guitar signal to amp head-2.
Speaker signal from amp head-1.
Speaker signal from amp head-2.
Speaker signal to speaker cabinet.
Power supply 1
2
3
4
5
6
7
QUICK START CONNECTIONS
