6
8. Attach the Seat (12) to the Seat Carriage (11) with
four M6 x 16mm Hex Screws (29) and four M8 Flat
Washers (18).
9. Identify the Right Seat Handle (79), which is marked
with an “R” sticker.
Attach the Right Seat Handle (79) to the Seat
Carriage (11) with two M8 x 19mm Button Bolts (43)
and two M8 Nylon Locknuts (56) as shown.
Attach the Left Seat Handle (14) to the Seat
Carriage (11) in the same way.
79
14
56
11
8
9
12
11
29
29
18

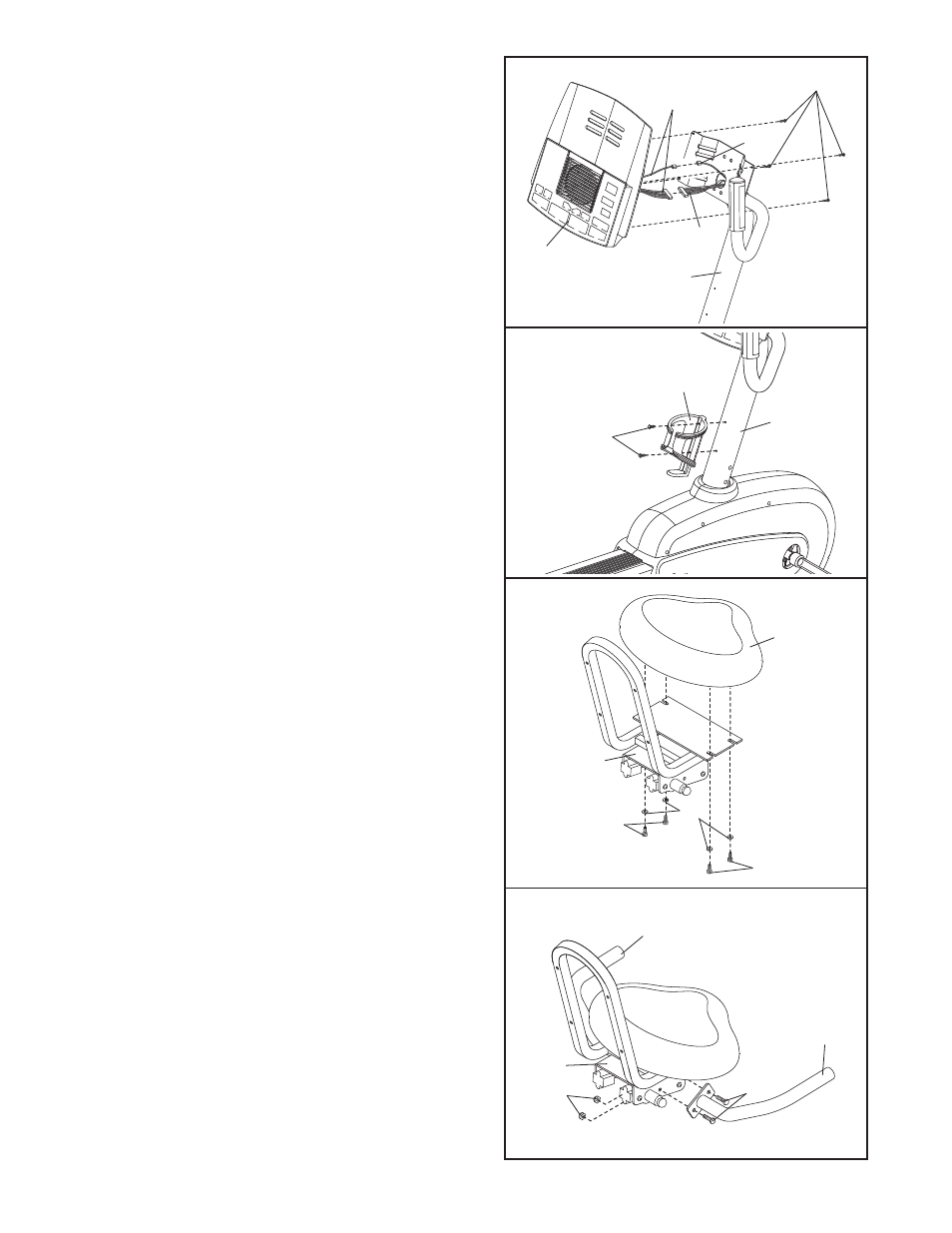

6. Connect the Pulse Wire (60) to the wire extending
from the Console (9). Next, connect the Upper Wire
Harness (16) to the wire harness on the Console.
Insert all wires into the Handlebar Post (6).
Attach the Console (9) to the Handlebar Post (6)
with four M4 x 16mm Screws (21).
Be careful to
avoid pinching the wires.
9
60
16
Console
Wires
6
21
6
7. Attach the Water Bottle Holder (62) to the Handlebar
Post (6) with two M4 x 22mm Screws (75). Note:
The Water Bottle Holder is designed to be used with
your own water bottle.
75
62
7
6
43
