User Manual SATA 4 Port PCI Adaptor with RAID RC209
Magic Switch introduction and jumper setting

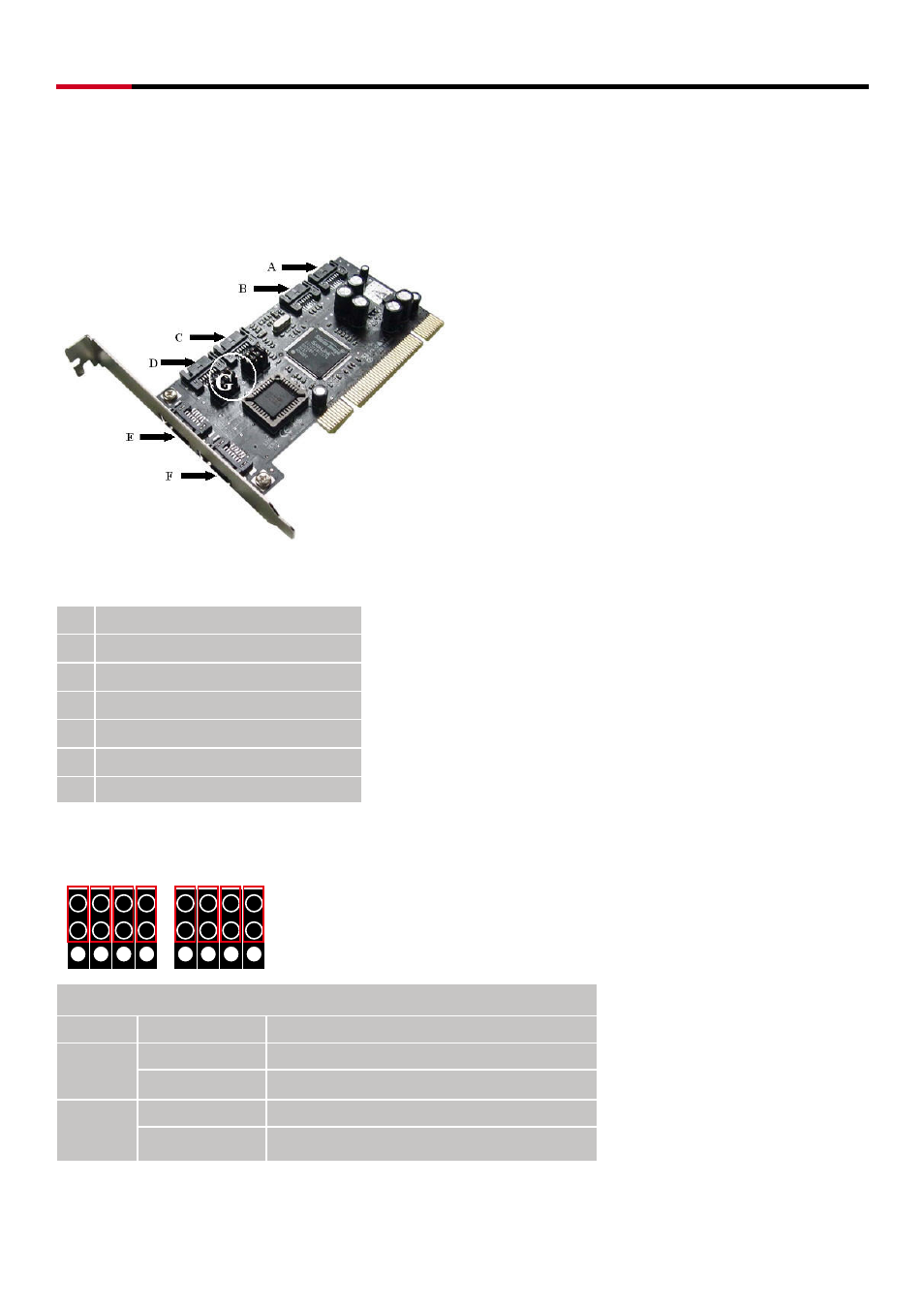

Before installing the SiI 34 SATA PCI Card, please see the photo below which shows all the
ports & jumpers on this PCI Card.
A SATA Connector (internal)
B SATA Connector 2 (internal)
C SATA Connector 3 (internal)
D SATA Connector 4 (internal)
E SATA Connector 5 (external)
F SATA Connector 6 (external)
G Jumpers
IDE/RAID: Jumper Settings ( Default mode as below : 2-3 close )
Jumper Settings
JP Description Active port
J-J4 -2 close
Enable SATA Connector 5
2-3 close Enable SATA Connector 4
J5-J8 -2 close Enable SATA Connector 6
2-3 close Enable SATA Connector 3
3
2
J J2 J3 J4 J5 J6 J7 J8
