6

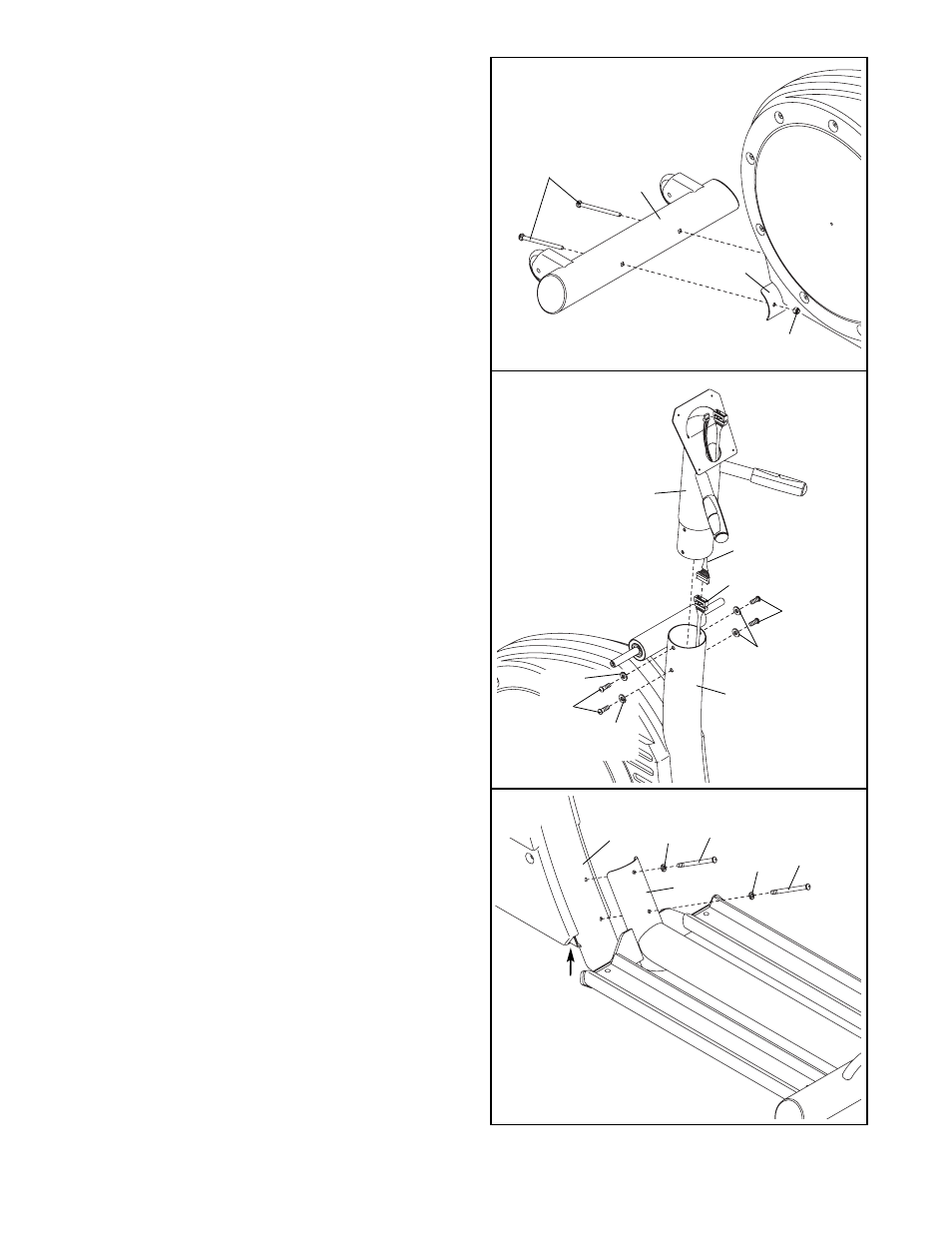

1. Attach the Stabilizer (8) to the Frame (1) with two
M10 x 116mm Carriage Bolts (38) and two M10
Nylon Locknuts (70).
2. Have another person hold the Upright (2) in the po-
sition shown. Connect the Upper Wire Harness (77)
to the Lower Wire Harness (78).
Attach the Upright (2) to the Frame (1) with four
M10 x 25mm Patch Screws (48) and four M10 Split
Washers (85). Make sure that no wires are
pinched between the Upright and the Frame.
1
1
2
48
85
78
2
1
70
38
8
77
85
48
85
3. Attach the Track Frame (4) to the Frame (1) with
two M10 x 123mm Button Screws (87) and two
M10 Split Washers (85). Finger tighten a Button
Screw into the lower hole first, and then finger
tighten a Button Screw into the upper hole. Then,
tighten both Button Screws. Note: This step may be
easier if you raise the Frame a few inches in the lo-
cation shown by the arrow at the right while you at-
tach the Track Frame.
85
4
1
87
85
87
3
