RIDGID RV2400A - Manual (Page 11)

11

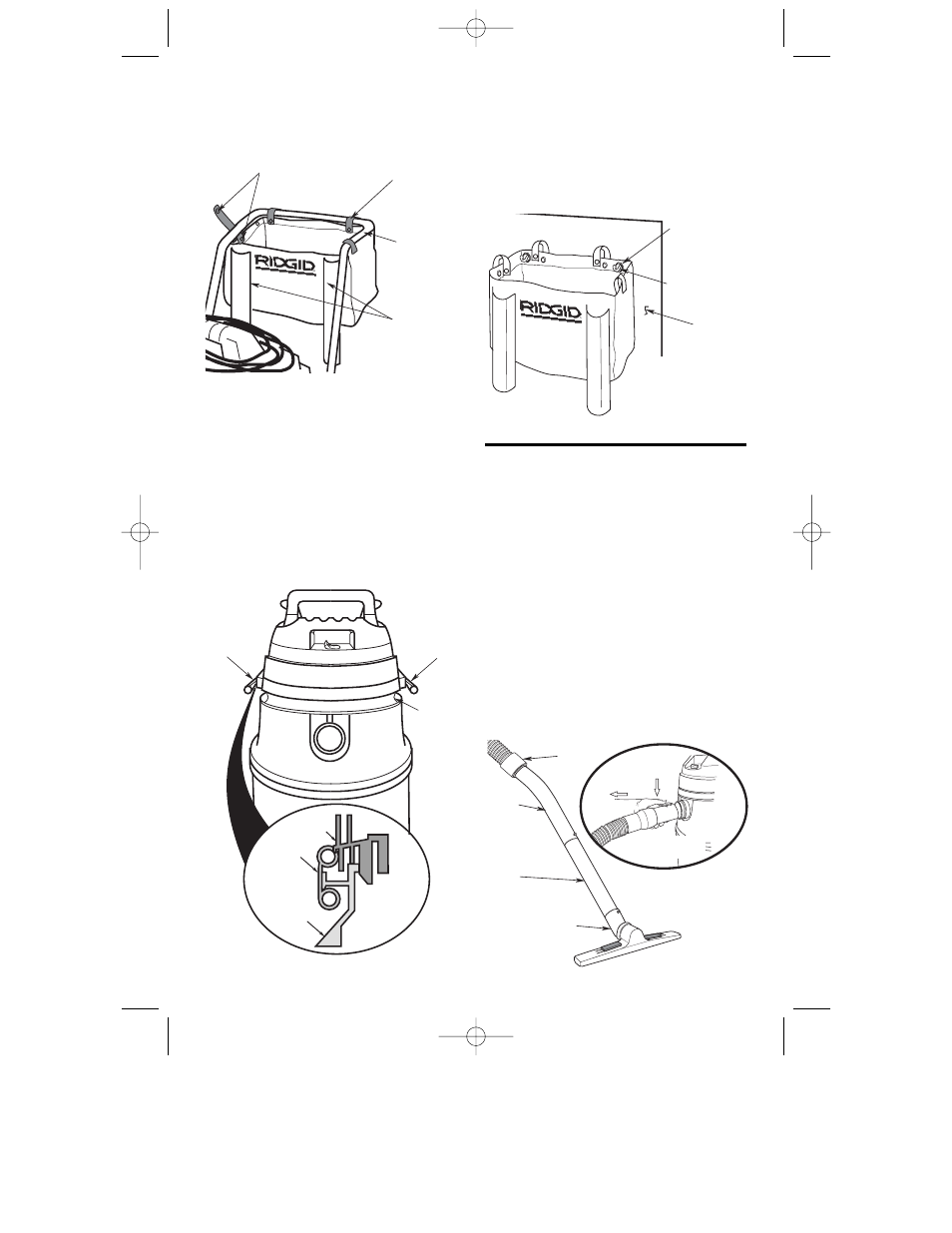

Wet/Dry Vac Assembly
1. Position the powerhead assembly on
the drum/caddy assembly as shown
(assembled earlier).
2. Rotate both latches down and press
until you hear them snap over the
flanges on the drum.
Wall Mount
Hook
Grommet
Wall
Tote Snaps
Tote
Straps (4)
Handle
Extension
Wand
Storage
Locations
Drum
Latch Drum
Latch
Drum
Flange
Latch
Drum
Powerhead
Assembly
Installing Tool Holder
1. Install tool holder as shown with
extension wand holders facing unit.
Insert Hose
Insert the push button end of the “Tug-A-
Long” hose into the inlet of the vac. The
hose should snap into place. To remove
the hose from the vac, press the release
button in the hose assembly and pull the
hose out of the vac inlet, as shown.
On the RV2600B, press the curved metal
extension wand into the coupling ring of
the hose end.
Join the two metal extension wands,
aligning the button and hole so they snap
together.
Attach the accessories, aligning the button
and hole so they snap together.
Release
Button Press
and
Pull
Coupling
Ring
Accessory
Metal
Extension
Wand
(Curved)
Metal
Extension
Wand
(Straight)
Wet/Dry Vac &
Hose Assembly
2. As an alternative storage solution, the
tool holder may hang on a wall. Two wall
mounting hooks (not provided) must be
secured to the wall as shown (sold
separately).
