©2001 Thomson multimedia Inc.
Form S-F32689/F36689
Trademark(s) ® Registered
Marca(s) Registrada(s)
Photos and features subject to change
without notice. Illustration of product finish
may vary from actual color. Screen sizes
measured diagonally.
Printed in the U.S.A. 3/01
PC15892
GAC38656
➤Audio/Video Input Jacks
Color-coded monitor panel
provides direct audio and
video connections for optimum
performance and system
flexibility. Includes two audio/
video inputs, one S-Video input,
one component (Y, Pr, Pb) input,
plus switchable audio outputs for
fixed and variable level control.
• Back Panel
• One Pair of Switchable
(Variable/Fixed)
Audio Outputs
Connect TV to an external
audio source with speakers
(AV receiver, subwoofer, power
amplifier) to create a true home
theater setup. Switchable
outputs offer maximum
flexibility for connecting
various types of external
audio components.
➤S-Video/Component Inputs
with Auto Detection
One direct Y/C input and one
set of component (Y, Pr, Pb)
inputs connect TV to compatible
sources (e.g., DVD players, RCA
® -
DIRECTV ™ Systems, S-VHS
VCRs/Hi8 VCRs/camcorders, or
Internet set-top devices) for
high-resolution playback. Automatic
switching to either input upon
detection of the signal so there’s
no setup necessary.
• G-LINK 1 Connector
The G-LINK 1 connector allows
the GUIDE Plus+ GOLD 1 Program
Guide to work with your VCR
(enabling one-touch record)
and/or cable box (ability to tune
directly to a station when the
program guide is on your
TV screen).
1 GUIDE Plus+ GOLD and G-LINK are trademarks of Gemstar-TV Guide International, Inc.
2 Lines per picture width, 573 (F32689) / 592 (F36689) lines based on EIA measurement criteria.
3 10 watts = 5 watts per channel, RMS rating into 8 ohms 50 Hz-20,000 Hz, ±3dB with less than 1% THD.
4 Check your cable company’s compatibility requirements.
5 dbx is a registered trademark of Carillon Electronics Corporation.
6 This television receiver provides display of television closed captioning in accordance with §15.119 of the
FCC rules. This television receiver does not support color attributes of television closed captioning.
Bush is a registered trademark of Bush Industries, Inc.

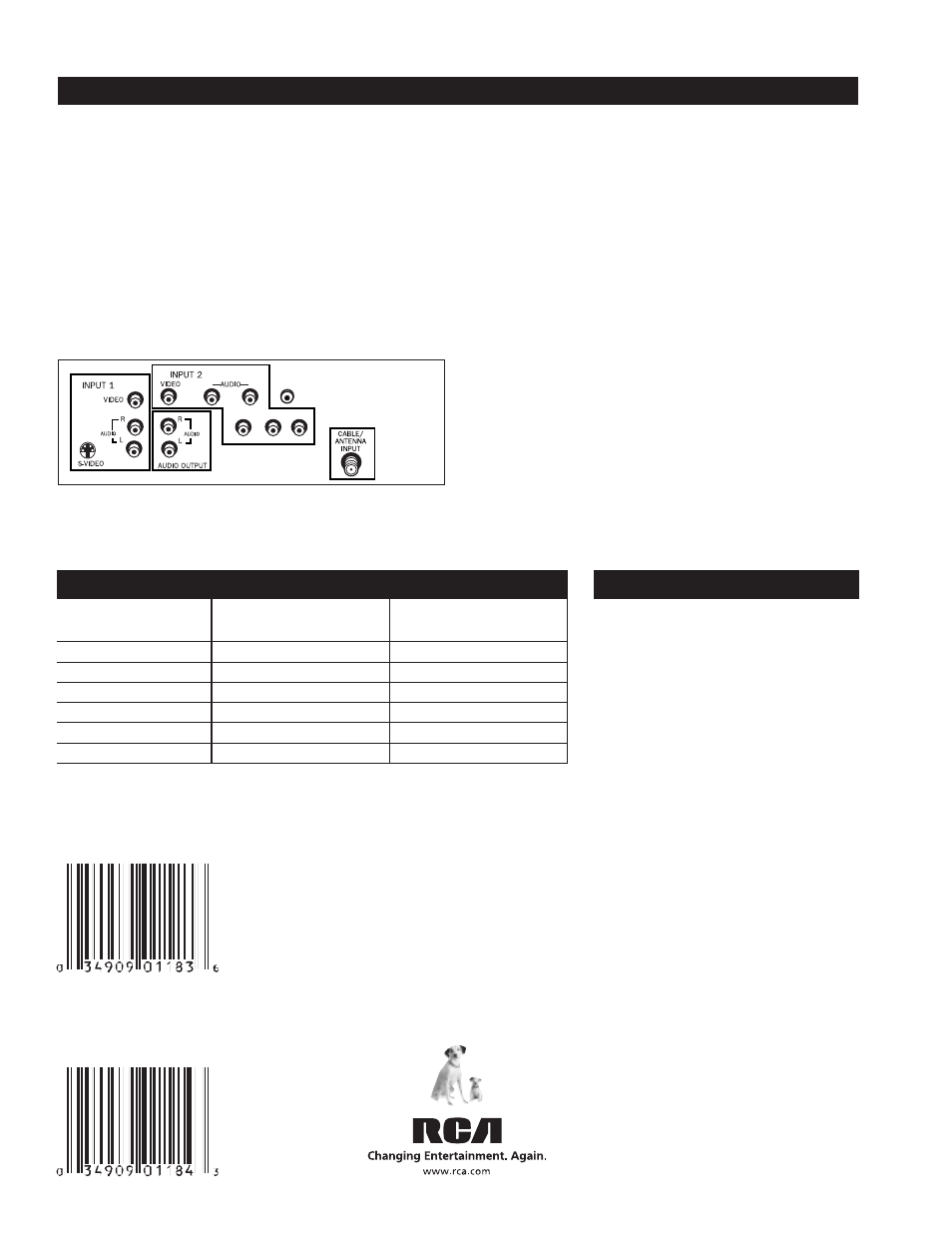

Connections
Specifications
F32689 F36689
Screen Size (diagonal) 32" 36"
Finish Black Texture Black Texture
Cabinet Dimensions 29" H, 30 1 ⁄
8
" W, 22 1 ⁄
2
" D 30 1 ⁄
8
" H, 33 5 ⁄
8
" W, 24 3 ⁄
8
" D
Approx. Shipping Weight 120 Lbs. 190 Lbs.
Lines of Horizontal Resolution 765 2 790 2
Bush ® Base (optional) VS64932 VS64935
F32689
F36689
Plus
• Limited Warranty
– 90 days for labor charges.
– One year for parts.
– Two years for picture tube.
– See RCA dealer or visit www.rca.com for
complete details.
R L G-LINK
P R P B Y
