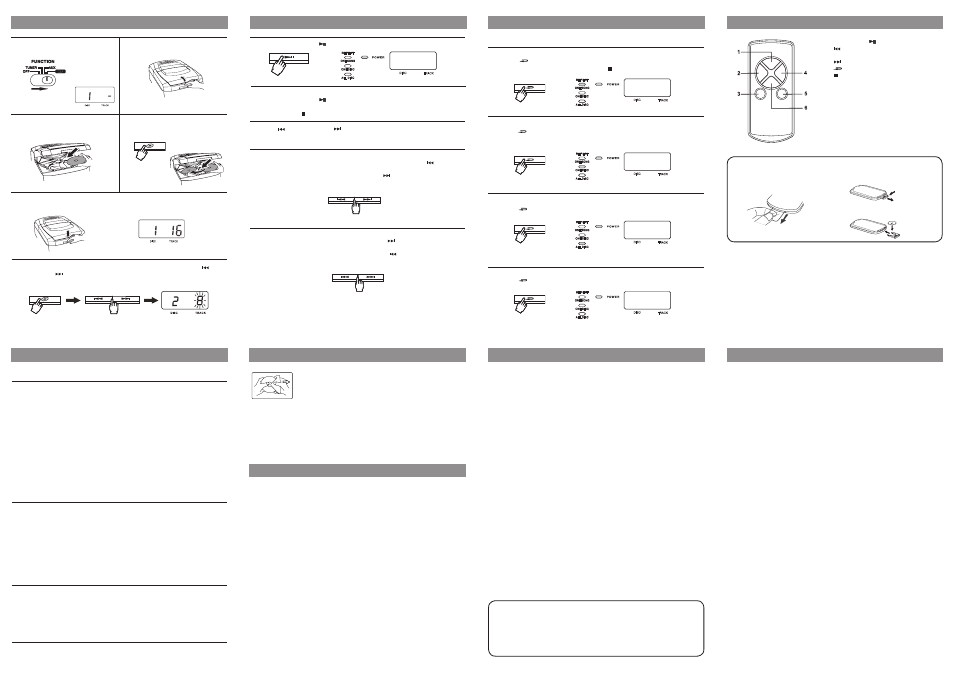

To repeat the whole Disc
• Press the REPEAT button until the ONE DISC indicator lights up. The current disc
will be played repeatedly starting from the current playing point.
REPEAT PLAYBACK DURING PLAYBACK MODE
To repeat the Current Track
• Press the REPEAT button until the ONE SONG indicator lights up. The current
track will be played repeatedly until the STOP button is pressed.
To Cancel repeat play
• Press the REPEAT button until all indicators turn off.
2 5
DISC TRACK
To repeat all Discs
• Press the REPEAT button until the ALL DISC indicator lights up.
2 5
DISC TRACK
2 5
DISC TRACK
2 5
DISC TRACK
SYMpTOM
No sound
No sound from one channel or
unbalanced left and right volume
Reversed left and right sound
Lack of bass sound or imprecise
physical location of musical
instruments
Severe hum or noise
CD
Disc in place but unit won’t play
Disc skips
rADIO
Poor FM reception
Poor AM reception
CAUSE (AND rEMEDY)
• Turn VOLUME clockwise.
• The headphones are connected.
Disconnect them.
• Check the speaker connections of the
inoperative channel.
• Check the speaker cord connection and
speaker location.
• Check the speaker connection for proper
phasing.
• The TV or VCR is too close to the stereo
system. Separate the stereo system from the
TV or VCR.
• Make sure the AC adapter is secure in the AC
power outlet, and the outlet has power.
• Make sure FUNCTION selector is set to CD.
• Make sure disc label is facing up.
• Make sure disc is clean.
• Pause mode is activated.
• Disc may be damaged or dirty; check disc.
• Make sure the unit is on a secure spot.
Vibration or jarring can cause the disc to
skip.
• Make sure FM antenna wire is unwound.
• Electrical interference in your home can cause
poor reception. Move the unit away from
sources of interference (especially those with
motors and transformers).
• Reposition or turn the main unit for better
reception.
MAINTENANCE LIMITED WARRANTY LIMITED WARRANTY TROUBLESHOOTING GUIDE
COMPACT DISC PLAYBACK COMPACT DISC PLAYBACK COMPACT DISC PLAYBACK REMOTE CONTROL
CLEANING THE DISC
If the CD skips or will not play, the disc may need to be cleaned.
Before playing, wipe the disc from the center outward with a cleaning
cloth. After playing, store the disc in its case.
CLEANING THE UNIT
Do not use volatile chemicals on this unit. Clean by lightly wiping with a soft cloth.
IMPORTANT NOTE
• If an abnormal display indication or an operating problem occurs, disconnect the AC
adapter. Wait at least 5 seconds, then reconnect it.
• Before transporting the unit, remove all discs from the disc compartment.
Power consumption: 10 W
Power source: AC 120V~60Hz
1. PLAY/PAUSE Button
2. SKIP/SEARCH Button
3. DISC SKIP Button
4. SKIP/SEARCH Button
5. REPEAT Button
6. STOP Button
U S I N G T H E R E M O T E C O N T R O L
CORRECTLY
• Point the remote control at the REMOTE
SENSOR located on the unit.
• When there is a strong ambient light source,
the performance of the infrared REMOTE
SENSOR may be degraded, causing unreliable
operation.
• The recommended effective distance for
remote operation is about 13 feet.
• Remove the protective plastic
tab before operating the remote
control. 1. Open the battery door.
2. Insert one CR2025 (3V) size battery.
BATTERY REPLACEMENT
When the battery becomes weak, the operating distance of the remote control is greatly
reduced and you will need to replace the battery.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
NOTE: If the remote control is not going to be used for a long time, remove the battery
to avoid damage caused by battery leakage corrosion.
WARNINGS:
• Do not dispose of battery in fire. Battery may explode or leak.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• To change battery
To Stop playing:
(a) Press the PLAY/PAUSE button and the track no. will flash. Press this button again
to resume playing.
(b) Press the STOP button.
Note: The SKIP or SEARCH button can only be used to choose a track on the
current disc. To choose a track of another disc, the DISC SKIP button should be pressed
to get to the desired disc first.
To Skip to a Different Track
• To skip to the beginning of the current or the previous track, press the reverse skip
button.
• To skip to the beginning of the next track, press the forward skip button.
• A short period of time will be needed for the disc to read the information of the desired
track before playback can begin.
7. Press the PLAY/PAUSE button to start playback.
2 8
DISC TRACK
To fast forward or fast reverse to a particular point
• To scan forward at high speed, press and hold the forward search button and
release it at the desired point.
• To scan backward at high speed, press and hold the reverse search button and
release it at the desired point.
• Fast forward or fast reverse will continue searching the CD until it reaches the end.
Note: Searching and skipping can be done during playback or pause mode but are ef-
fective for the currently selected disc only. Use the DISC SKIP button to choose another
disc.
REVERSE FORWARD
Press it once
REVERSE FORWARD
Keep it pressed
SPECIFICATIONS
5. Close the CD door by gently pushing down until it is secure. The disc no. and the
total number of tracks will show in the CD display for a few seconds.
1. Slide the FUNCTION selector to CD.
The POWER indicator lights up.
2. Open the disc compartment.
3. Place a disc onto the disc(s) holder,
with the label side up.
4. Press the DISC SKIP button to revolve
the tray clockwise.
Place other disc(s) on the disc holder(s).
6. Press the DISC SKIP button to select the desired disc. Press either the SKIP
or SEARCH button to select the desired track.
Specifcations and external appearance are subject to change without notice.
Printed in China 811-216291W100
AVC MULTIMEDIA ("AVC") makes the following limited warranty. These limited
warranties extend to the original consumer purchaser and is limited to non-commercial
user of the product.
One Year Parts & Labor Warranty
AVC products purchased in the United States are warranted to be free from defects in
materials or workmanship for a period of one year from the date of their original retail
purchase. If the unit fails to conform to this warranty, we will service the product using
new or refurbished parts and products, at AVC's sole discretion.
During a period of one year from the effective warranty date, AVC will provide, when
needed, service labor to repair a manufacturing defect at its designated Service Center.
To obtain warranty service in the United States, you must first call our Customer
Support Center at 1-877-252-6873, during the hours listed in the box below. The
deternination of service will be made by AVC customer support.
PLEASE DO NOT RETURN YOUR UNIT TO AVC WITHOUT PRIOR
AUTHORIZATION. New or remanufactured replacements for defective parts or
products will be used for repairs by AVC at its designated Service Center for one year
from the defective warranty date. Such replacement parts or products are warranted
for an additional one year from the date of repair or replacement. The Customer will
be required to ship the unit to the Service Center indicated at the time Customer
Support is contacted to make the necessary repairs. The customer is responsible for
all transportation charges to the service facility.
Packaging and Shipping Instruction
When you send the product to the AVC service facility you must use the original carton
box and packing material or an equivalent as designated by AVC.
Your Responsibility
(1) You must retain your bill of sale to provide proof of purchase.
(2) These warranties are effective only if the product is purchased and operated in the
U.S.A. or Canada.
(3) Warranties extend only to defects in material or workmanship, and do not extend
to any product or parts which have been lost or discarded, or damage to product
or parts caused by misuse, accident, improper operation or maintenance, or use
in violation of instructions provided with the product, or to product which has been
altered or modified without authorization of AVC, or to products or parts thereof
which have had the serial number removed or changed.
Out of Warranty
In the event your product requires repair after the limited warranty period has
expired, please contact our Customer Support Center at 1-877-252-6873 or www.
RCAav.com
Hours: Monday-Thursday: 9am-7pm, Friday: 9am-5pm, Saturday: 9am-NOON
Eastern time.
Important:
You are responsible for any transportation, shipping or insurance relative to the
return of the product to our Product Returns Center.
All warranties implied by state law, including the implied warranties of merchantability
and fitness for a particular purpose, are expressly limited to the duration of the limited
warranties set forth above. With the exception of any warranties implied by state law
as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties,
guarantees, agreements and similar obligations of manufacturer or seller with
respect to the repair or replacement of any parts. In no event shall AVC be liable for
consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change, modify or
extend the terms of these warranties in any manner whatsoever. The time within action
must be commenced to enforce any obligation of AVC arising under the warranty or
under any statute, or law of the United States or any state thereof, is hereby limited to
one year from the date of purchase. This limitation does not apply to implied warranties
arising under state law.
This warranty gives you specific legal rights and you may also have other rights, which
may vary from state to state. Some states do not allow limitation on how long an
implied warranty lasts, when an action may be brought, or the exclusion or limitation of
incidental or consequential damages, so the above provisions may not apply to you.
For more information on other products and services, please contact our web site at
www.RCAav.com
Important: Also keep your “Bill of Sale” as proof of purchase.
Model no ..................................................... Product name ............................................
Type of set ........................................................................................................................
Serial no. ...................................................... Invoice no. .................................................
Date purchased ............................................ Dealer name ..............................................
