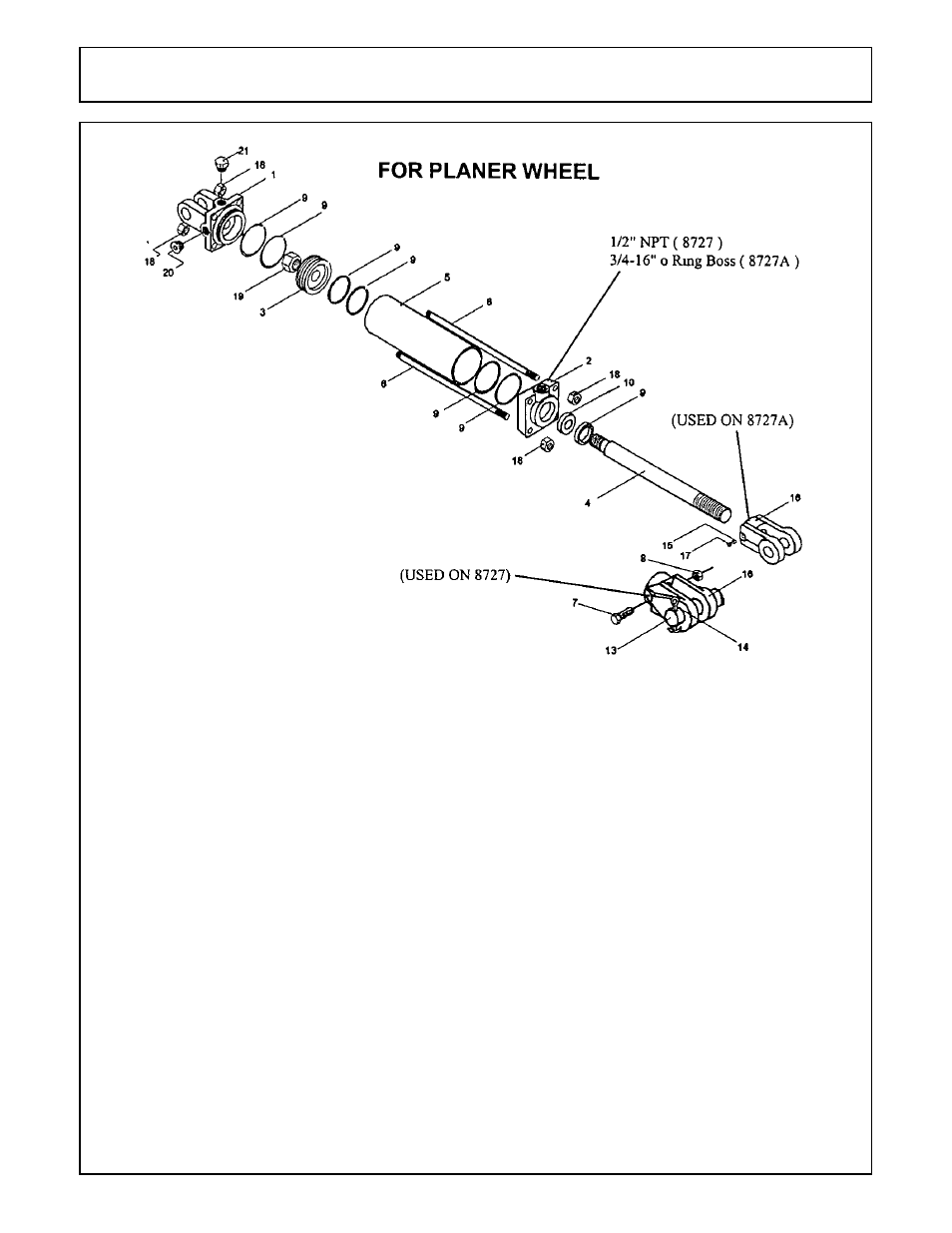

CYLINDER - HYDRAULIC
ITEM
PART NO.
QTY.
DESCRIPTION
8727A
COMPLETE ASSEMBLY
1
00774729
1
CLEVIS CAP
2
00774734
1
ROD CAP
3
00774730
1
PISTON
4
00774753
1
ROD
5
3047111
1
TUBE
6
3047112
4
TIE ROD
15
3047117
1
NYLON THREAD PROTECTOR
16
1917140
1
ROD CLEVIS
17
00774740
1
SET SCREW
18
33003H5C
8
TIE ROD NUT
19
5JRC12160
1
PISTON NUT
20
1917132
1
PORT PLUG
21
2417154
1
BREATHER
00774700
1*
SEALANT (NOT SHOWN)
651132
2*
HOSE (NOT SHOWN)
94514
2*
ELBOW (NOT SHOWN)
0652141311
2*
ADAPTER (NOT SHOWN)
8354
2*
PIN (NOT SHOWN)
00606000
2*
COTTER PIN (NOT SHOWN)
*
00774760
-
SEAL KIT FOR 8727A CYL
