GND AP B+ + R – + L – – R + – L +
B r i d g e d B r i d g e d – + – +
– 5 –
for 4600x model

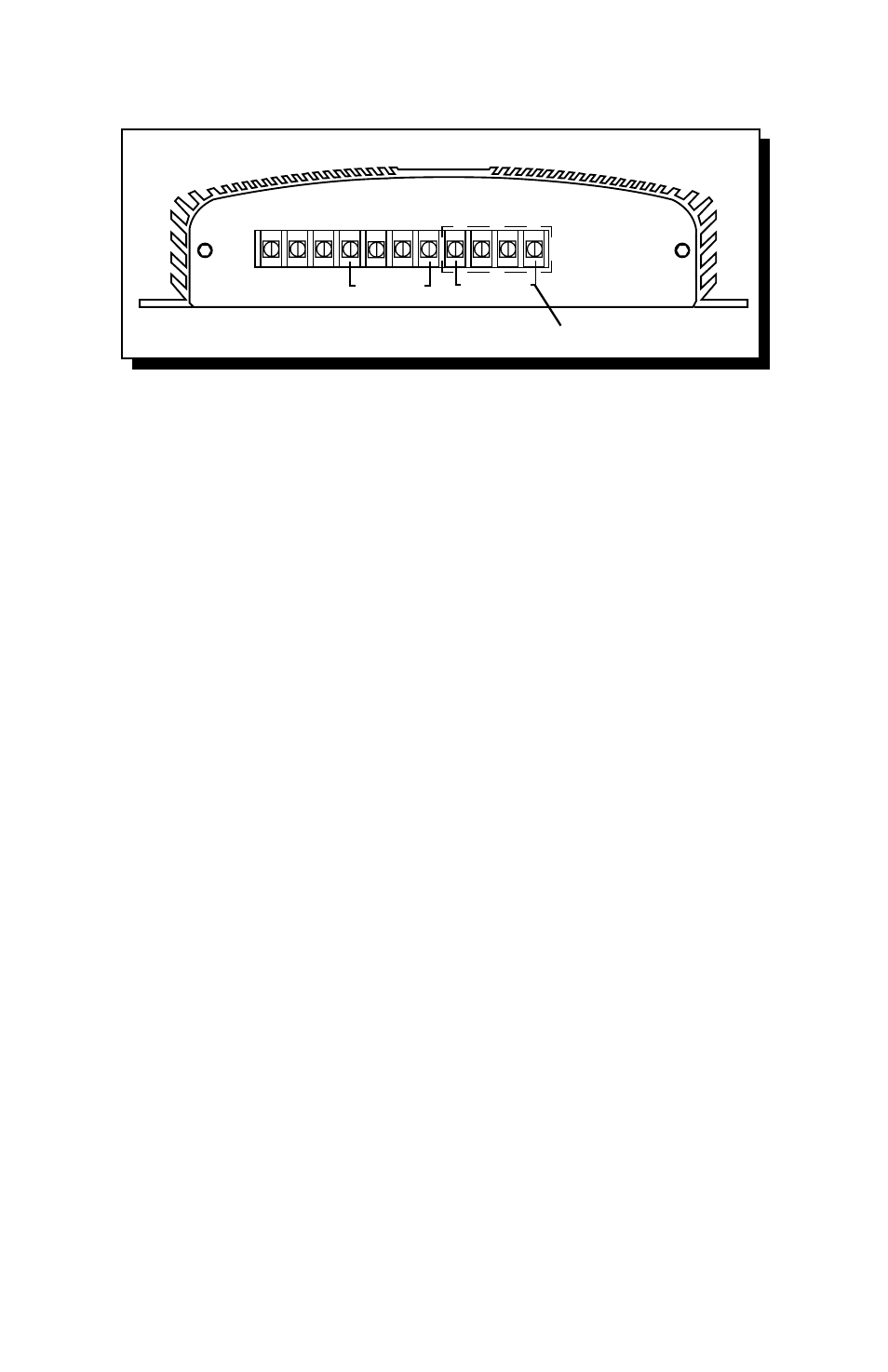

5. Power/Speaker Connectors
The gold-plated terminal block connectors are:
GND Supplies ground to the amplifier.
AP The amplifier is turned on by connecting the remote turn-
on wire to the source unit's “Auto Antenna” or remote
turn-on lead, either of which should go to +12 volts when
the source unit is activated.
B+ Supplies power to the amplifier.
+R– Connect the Right and Left channel outputs to the
speakers.
The terminal block connector accepts wire sizes from 10 gauge
to 20 gauge. *
Spade connectors are not needed because of the design of the
connector. The installer should be careful not to allow wires to
fray or touch. The recommended strip length is 1/4" (.635cm).
*Rockford Fosgate’s Perfect Interface line of accessories includes high
quality power and speaker wire, gold-plated RCA interconnecting cables
and other products to complete your installation. Ask your Authorized
Rockford Fosgate Dealer about Perfect Interface.
Power/Speaker Side
+L–
