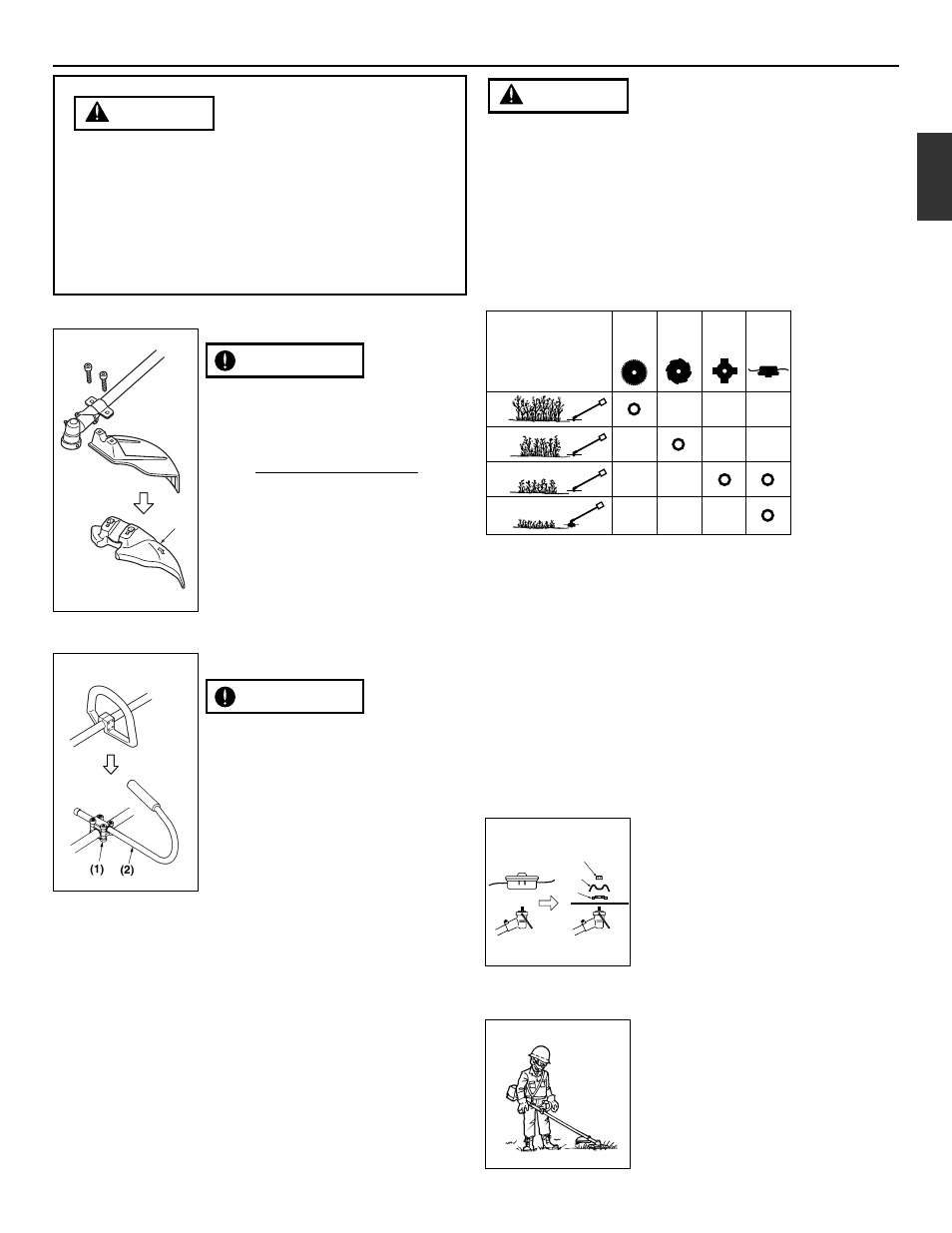

RedMax BCZ3050S - Manual (Page 17)

US-17
BCZ3050S/T/SW
U
S
• When sharpening, removing, or reattaching the blade, be
sure to wear thick, sturdy gloves and use only proper tools
and equipment to prevent injury.
■ CHOOSE THE BLADE
Choose a suitable recommended cutting attachment according to
the object to be cut. (OPT3)
• When replacing blade always be sure to use products which
have been certified by RedMax.
(1) 9” 22-tooth :SST229
(2) 9” 24-tooth :SST249
(3) 8” 8-tooth :SGB088
(4) 9” 8-tooth :SGB089
(5) 8” 4-tooth :SGB048
(6) 9” 4-tooth :SGB049
(7) Nylon line head
(A) Under growth
(B) Heavy weeds
(C) Light weeds
(D) Grass
WARNING
■ SET UP THE BLADE
1. Detach the line head assembly. (OPT4)
2. Put on the blade, making the marked
side face the shaft side, put the holder
and the cover on, and fasten the blade
with the nut. (OPT4)
(1) Cover : 3540-13283
(2) Holder (B) : 6019-13250 (STANDARD)
(3) Nut : T3002-13260 (STANDARD)
■ BALANCE UNIT
1. Put on strap and attach unit to strap.
2. Slide clamp up or down until unit
balances with head just touching on the
ground. (OPT5)
OPT5
(1)
(3)
(2)
OPT4
(1)
(2) (3)
(4) (5)
(6)
(7)
(A)
(B)
(C)
(D)
OPT3
12. Optional blade usage (for BCZ3050S/SW only)
OPT2
(1)
OPT1
Change to the cutting attachment guard
which is suitable for the metal blade.
(OPT1)
TIGHTENING TORQUE :
26~43.5 in-lbs
(2.94~4.9 N.m.)
(1) Guard : T3246-24110
[BCZ3050S]
Change the loop handle to the J-handle
for safe operation. (OPT2)
(1) Bracket : 3583-14101
(2) J-handle : 6367-14200
IMPORTANT
IMPORTANT
[ BCZ3050T ]
This trimmer is designed for use as
a trimmer only.
Metal blades should never be used
on this trimmer.
WARNING
